1.86mm Pixel Pitch Indoor FHD LED Display 10000 1 Contrast Ratio with Colorlight System COB Die-Casting Aluminum Cabinet
1.86mm Pixel Pitch Indoor FHD LED Display 10000 1 Contrast Ratio with Colorlight System COB Die-Casting Aluminum Cabinet
1.86mm Pixel Pitch Indoor FHD LED Display 10000 1 Contrast Ratio with Colorlight System COB Die-Casting Aluminum Cabinet
1.86mm Pixel Pitch Indoor FHD LED Display 10000 1 Contrast Ratio with Colorlight System COB Die-Casting Aluminum Cabinet
1.86mm Pixel Pitch Indoor FHD LED Display 10000 1 Contrast Ratio with Colorlight System COB Die-Casting Aluminum Cabinet
1.86mm Pixel Pitch Indoor FHD LED Display 10000 1 Contrast Ratio with Colorlight System COB Die-Casting Aluminum Cabinet
Specifications
Brand Name :
TBC
Model Number :
1.86
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
10,000sqm/month
Delivery Time :
25days
Packaging Details :
Wooden Box
Pixel Pitch :
1.86mm
System :
Colorlight
Panel Dimension :
640x480×59mm
Module Size :
320×160mm
Service :
Front Maintenance
Brightness :
Standard 600nits
Usage :
Indoor
Cabinet weight :
7.5kg/panel
Material :
Die-casting Aluminium
Description
Indoor COB P1.86 Die-Casting Aluminum Cabinet FHD LED Display 10000:1 Contrast Ratio 3840Hz

Indoor COB P1.86 LED Display Specifications:

Pixel Pitch P1.25 P1.53mm P1.86mm
Pixel Density 640,000 px/㎡ 422,753 px/㎡ 288,906 px/㎡
LED Chip Flip Chip
Module Size (W*H) 320*160mm
Module Resolution 256*128 dots 208*104 dots 172*86 dots
Surface Treatment Matt COB
Surface Hardness 4H
Panel Size (W*H*D) 640mm*480mm*59mm
Panel Weight 7.5 kg / panel
Panel Resolution
(dots)		 512*384 416*312 344*258
Material Die-casting Aluminium
Circuit Design Common Anode Circuit
Flash Correction Storage Applicable
Brightness Standard 600nits
Refresh Rate 3840Hz
Contrast Ratio 10000:1 (Condition without lighting)
Color Temperature 9300K (Standard)
Viewing Angle H160°, V160°
Input Voltage AC 100~240V 50/60Hz
Max. Power Consumption
(White Balance 600nits)		 135 w/panel 88 w/panel 88 w/panel
Maintenance Way Front Service
IP level of PCB serface IP54 (Washable by clean water)
Lifetime at 50% Brightness 100,000 hours
Operating Temperature / Humidity -10°C-+40°C/10%RH-90%RH
Stroage Temperature / Humidity -20°C-+60°C/10%RH-90%RH
Certificate CCC, EMC CLASS-A, ROHS, CQC
Application Indoor
Warranty 3 years

1.86mm Pixel Pitch Indoor FHD LED Display 10000 1 Contrast Ratio with Colorlight System COB Die-Casting Aluminum Cabinet

Key Features of Indoor COB P1.86 320×160mm Module:

1. Pixel pitch: 1.86mm
2. Module size: 320×160mm

3. Module Resolution:172*86 dots
4. Panel size: 640×480×59mm(Customized)

5. Panel Resolution:344*258
6. Panel weight: 7.5kg/panel
7. Surface Treatment: COB
8. Surface Hardness: 4H

9. Application: Indoor

10. IP : 54

11. Refresh Rate: 3840Hz

12. Brightness: 600nit

13. Certificate: CCC, EMC CLASS-A, ROHS, CQC

14. Warranty: 3 years

Key Advantages of Indoor COB P1.86 FHD LED Display:


Our 320*160mm COB cabinets are revolutionizing displays, they're the perfect SMD replacement that actually saves money while delivering more:

1. Tough anti-collision design;
2. Crystal-clear 4K/8K resolution

3. Fits commercial TVs & luxury home video walls;
4. Fully customizable sizes/shapes;
5. Our COB cabinets are available at a competitive rate similar to SMD.

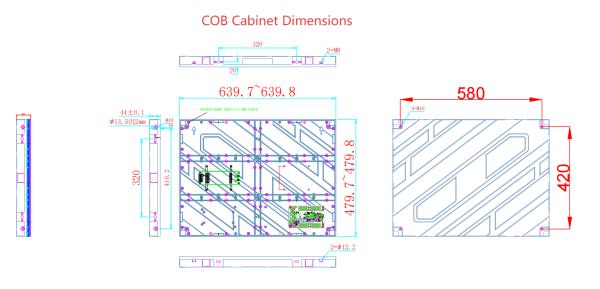

COB Cabinet Dimensions:

1.86mm Pixel Pitch Indoor FHD LED Display 10000 1 Contrast Ratio with Colorlight System COB Die-Casting Aluminum Cabinet

Corner Seamless Installation:

The 45° bevel design enables seamless pillar and cube formations for creative LED video walls.

1.86mm Pixel Pitch Indoor FHD LED Display 10000 1 Contrast Ratio with Colorlight System COB Die-Casting Aluminum Cabinet
