GOB Cabinet Waterproof Density Outdoor P1.25 LED Display 480×540mm Pixel Density 4000nits for Outdoor Advertising
GOB Cabinet Waterproof Density Outdoor P1.25 LED Display 480×540mm Pixel Density 4000nits for Outdoor Advertising
GOB Cabinet Waterproof Density Outdoor P1.25 LED Display 480×540mm Pixel Density 4000nits for Outdoor Advertising
GOB Cabinet Waterproof Density Outdoor P1.25 LED Display 480×540mm Pixel Density 4000nits for Outdoor Advertising
GOB Cabinet Waterproof Density Outdoor P1.25 LED Display 480×540mm Pixel Density 4000nits for Outdoor Advertising
GOB Cabinet Waterproof Density Outdoor P1.25 LED Display 480×540mm Pixel Density 4000nits for Outdoor Advertising
Specifications
Brand Name :
TBC
Model Number :
P1.25
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
T/T,Western Union,PayPal
Supply Ability :
10,000sqm/month
Delivery Time :
15-25days
Packaging Details :
Wooden box
Pixel :
1.25mm
Cabinet Size :
480*540*63mm
Cabinet Weight :
9KG
Pixel Density :
4000nits
Refresh Rate :
3840Hz
Waterproof Level :
IP65
Material :
Die-cast aluminum
Life span :
100000hours
Warranty :
2 Years
Description

Outdoor P1.25 LED Display 480×540mm GOB Cabinet Waterproof High-Density for Outdoor Advertising

Outdoor P1.25 Small Pixel Pitch LED Display Specifications:

Pixel Pitch (mm) P1.25
Pixel Density (dot/m2) 640,000
Module Size (mm * mm) 240*270
Panel Size (mm * mm) 480*540
Panel Thickness(mm) 63
Panel Resolution (PX* PX) 384*432
Panel Weight 9kg
Brightness (cd/m2) ≥4000
Grey Scale(bit) ≥14
Refresh Rate (Hz) 3840
Maximum Cabinet Power Consumption (W) 720
Average Cabinet Power Consumption (W) 240
Viewing Angle (Deg) H/V160°
Working Voltage (V) 110V,200V,60Hz
Working Temperature (℃) -20~ +50
Working Humidity(RH) 10%~90%
Waterproof Level IP65
Working Environment Outdoor Fixed Installation

Lifespan

 10,0000H
Warranty 2 years

GOB Cabinet Waterproof Density Outdoor P1.25 LED Display 480×540mm Pixel Density 4000nits for Outdoor Advertising

Features of Outdoor P1.25 Small Pixel Pitch LED Display:

1. X-GOB Technology

We apply X-GOB coating technology to the module surface, which significantly enhances the display's resilience against outdoor elements. Specifically, this technology:

  • Improves durability by reinforcing impact resistance (reducing shattering risks) and shock absorption;
  • Boosts environmental adaptability with IP65-level water & dust protection, UV radiation shielding, and anti-static properties;
  • Enhances user safety through eye-protective design and electromagnetic interference (EMI) reduction.

GOB Cabinet Waterproof Density Outdoor P1.25 LED Display 480×540mm Pixel Density 4000nits for Outdoor Advertising

This comprehensive protection not only substantially extends the screen’s service life but also ensures stable performance in extreme weather conditions—making it ideal for high-demand outdoor applications like advertising, transportation hubs, or urban installations.

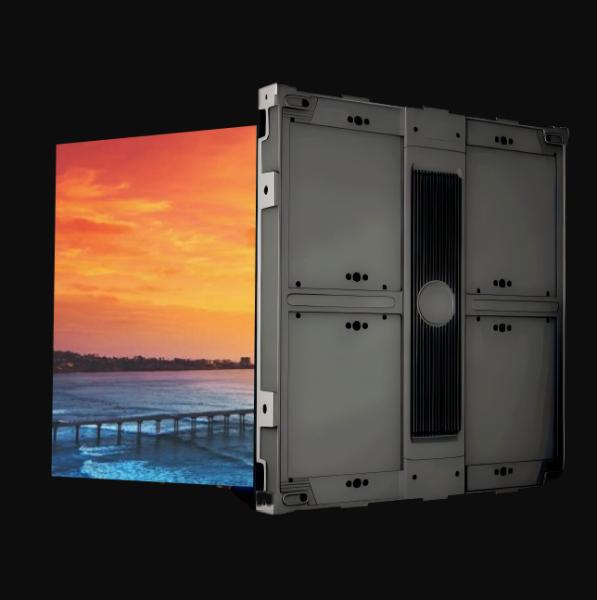

2. Heat Dissipation

By maximizing the air contact surface area, we achieve efficient heat dissipation, which significantly extends the lifespan.

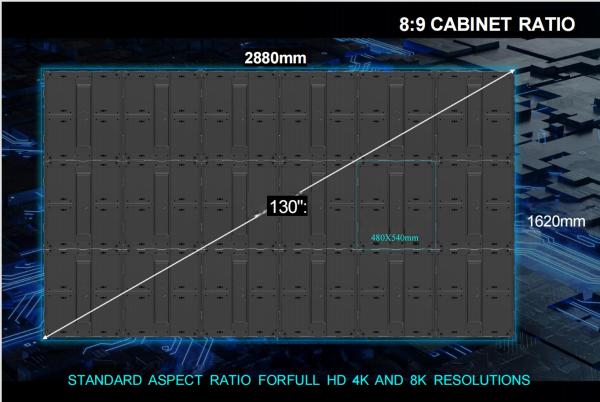

3. 8:9 Aspect Ratio LED Cabinet (480×540mm)

The cabinet's 8:9 aspect ratio (480×540mm) allows for seamless splicing into standard 16:9 configurations, as two cabinets can be horizontally combined to form the industry-preferred widescreen ratio. This design streamlines the splicing process by directly matching 16:9 without requiring aspect ratio conversion, which eliminates potential image distortion and reduces installation complexity.

GOB Cabinet Waterproof Density Outdoor P1.25 LED Display 480×540mm Pixel Density 4000nits for Outdoor Advertising

Outdoor P1.25 Small Pitch GOB LED Display Application:

1. Premium Commercial Advertising

  • Ultra-HD visuals for luxury brands & landmarks

  • Seamless large-format displays

​2. Sports Venue Live Broadcasts

  • 4000nits brightness for sunlight readability

  • 3840Hz refresh rate eliminates motion blur

3. High-End Outdoor Home Theaters

  • Cinematic HDR experience in open spaces

  • Weatherproof GOB protection for all-season use

​GOB Cabinet Waterproof Density Outdoor P1.25 LED Display 480×540mm Pixel Density 4000nits for Outdoor Advertising
