Outdoor P8 LED Display with IP65 Rating Ultra-Wide Viewing Angles and Lightweight Design for Stadium Perimeter
Outdoor P8 LED Display with IP65 Rating Ultra-Wide Viewing Angles and Lightweight Design for Stadium Perimeter
Outdoor P8 LED Display with IP65 Rating Ultra-Wide Viewing Angles and Lightweight Design for Stadium Perimeter
Outdoor P8 LED Display with IP65 Rating Ultra-Wide Viewing Angles and Lightweight Design for Stadium Perimeter
Outdoor P8 LED Display with IP65 Rating Ultra-Wide Viewing Angles and Lightweight Design for Stadium Perimeter
Outdoor P8 LED Display with IP65 Rating Ultra-Wide Viewing Angles and Lightweight Design for Stadium Perimeter
Specifications
Pixel Pitch :
P8mm
Maintenance Types :
Rear Maintenance
Warranty :
3 years
Panel Material :
Die-casting Aluminum
Brand Name :
TBC LED
Model Number :
P8
Certification :
FCC, CE, ROHS
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 sqm per month
Delivery Time :
25 days
Packaging Details :
Flight Cases
Cabinet Size :
960x960×87mm
IP Rating :
IP65
Lifespan :
100000hours
Weight :
28.5kg/panel
Type :
Outdoor Football Stadium LED Perimeter Screen
Description
Outdoor P8 Sports Perimeter LED Display IP65 Ultra-Wide Viewing Angles Lightweight Screen Supports Multi-angle Adjustment
High-performance outdoor P8 stadium perimeter LED display featuring IP65 waterproof rating, ultra-wide viewing angles, lightweight construction, and multi-angle adjustment capabilities. Designed specifically for sports venues with enhanced safety and visibility features.
Technical Specifications
Item P5 P6 P8 P10
Pixel Configuration SMD3535 SMD2727 SMD3535 SMD3535
Pixel Pitch(mm) 5 6.67 8 10
Module Resolution(dots) 64x32 48x24 40x20 32x16
Panel Resolution(dots) 192x192 144x144 120x120 96x96
Pixel Density(dots /m²) 10000 22477 15625 10000
Module Size(L x W x H)/(mm) 320x160 320x160 320x160 320x160
Panel Size(L x W x H)/( mm) 960x960 960x960 960x960 960x960
Panel Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Panel Weight(kg/panel) 28.5 28.5 28.5 28.5
Refresh Rate(Hz) ≥3840 ≥3840 ≥3840 ≥3840
Brightness(nit) ＞5000 ＞5000 ＞6000 ＞6000
Viewing Angle(H/V°) 140/140 140/140 140/140 140/140
AC Power Input(V) AC220±10% AC220±10% AC220±10% AC220±10%
Maintenance Types Rear Maintenance Rear Maintenance Rear Maintenance Rear Maintenance
IP Rating IP65 IP65 IP65 IP65
Max. AC Power Input(W/m²) 950 880 850 850
Avg. AC Power Input(W/m²) 450 350 320 350
Storage Temperature(ºC) -40~60 -40~60 -40~60 -40~60
Working Temperature(ºC) -20~50 -20~50 -20~50 -20~50
Lifespan 100000hours 100000hours 100000hours 100000hours
Warranty 3 years 3 years 3 years 3 years
Outdoor P8 LED Display with IP65 Rating Ultra-Wide Viewing Angles and Lightweight Design for Stadium Perimeter
Key Features
  • Anti-collision Soft Protection Design, Guarantee Athlete Safety
    Our stadium perimeter LED screen features a premium soft mask design tailored for sports venues. It effectively buffers impact force from accidental collisions with high-speed moving athletes, preventing player injuries. Meanwhile, it protects the LED modules and cabinets from collision damage, extending the screen's service life and complying with professional stadium safety standards.
    Outdoor P8 LED Display with IP65 Rating Ultra-Wide Viewing Angles and Lightweight Design for Stadium Perimeter
  • Ultra-high Brightness, Clear Visibility Under Direct Sunlight
    Built for open outdoor stadiums with strong sunlight, this perimeter LED screen adopts high-brightness lamp beads. It delivers stable, vivid display performance with no fading or glare under direct sunlight, ensuring clear visibility of all content and bringing a great viewing experience for on-site audiences all day long.
  • Ultra-high Refresh Rate, Flicker-free & Super HD Display
    We offer 3840Hz and upgraded 7680Hz ultra-high refresh rate options. Paired with high-transmittance materials and advanced display technology, the screen outputs smooth, ultra-HD flicker-free images. It effectively avoids moire patterns and picture distortion, perfectly catering to professional sports live broadcast and presenting stable, high-end visual effects.

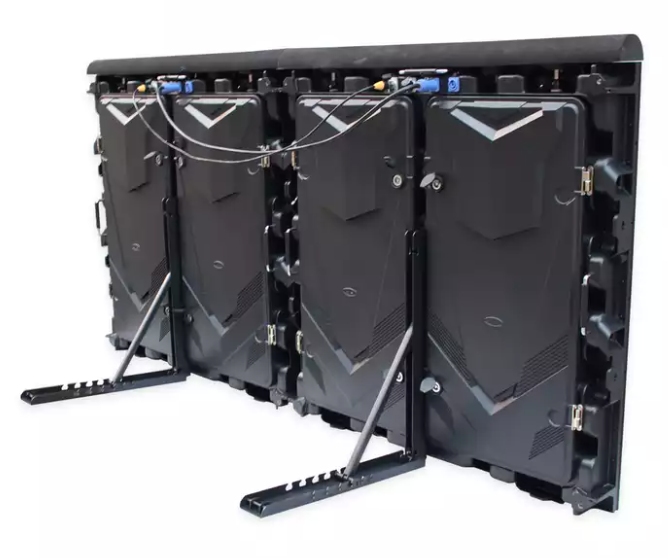

  • Precise Seamless Splicing, Fast Installation & Stable Structure
    Equipped with high-precision die-cast aluminum cabinets, the screen features lighter weight, higher rigidity and better durability than traditional models. The optimized locking structure enables fast assembly and disassembly. Precise gap control realizes seamless splicing, creating an integrated display effect while improving installation efficiency and cutting on-site construction costs.
    Outdoor P8 LED Display with IP65 Rating Ultra-Wide Viewing Angles and Lightweight Design for Stadium Perimeter
