Indoor P16 Ultra-Thin Transparent LED Film Display with 3000Nits Brightness and 1000mm x 64mm Cabinet Size
Indoor P16 Ultra-Thin Transparent LED Film Display with 3000Nits Brightness and 1000mm x 64mm Cabinet Size
Indoor P16 Ultra-Thin Transparent LED Film Display with 3000Nits Brightness and 1000mm x 64mm Cabinet Size
Indoor P16 Ultra-Thin Transparent LED Film Display with 3000Nits Brightness and 1000mm x 64mm Cabinet Size
Indoor P16 Ultra-Thin Transparent LED Film Display with 3000Nits Brightness and 1000mm x 64mm Cabinet Size
Indoor P16 Ultra-Thin Transparent LED Film Display with 3000Nits Brightness and 1000mm x 64mm Cabinet Size
Specifications
Brand Name :
TBC
Model Number :
P16
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
T/T,Western Union,PayPal
Supply Ability :
10,000sqm/month
Delivery Time :
15days
Packaging Details :
Flight Case
Pixel Pitch :
16mm
Cabinet Size :
1000x64mm
Viewing Angle :
140°/140°
Pixels :
3906 dots/sqm
Transparency :
90%
Warranty :
2 years
Description

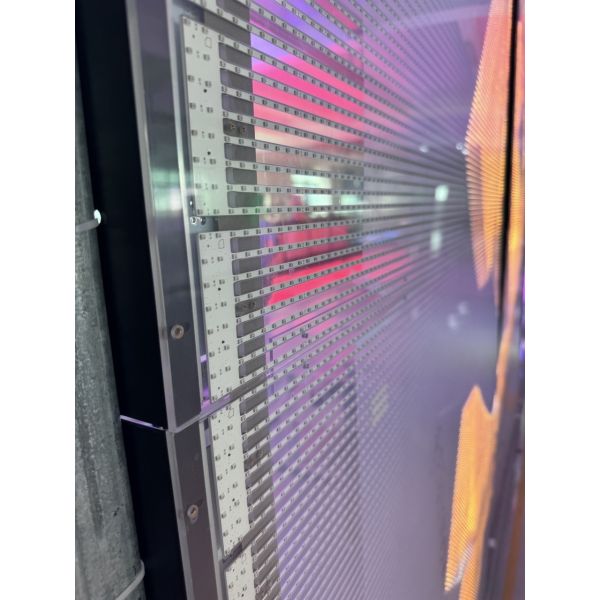

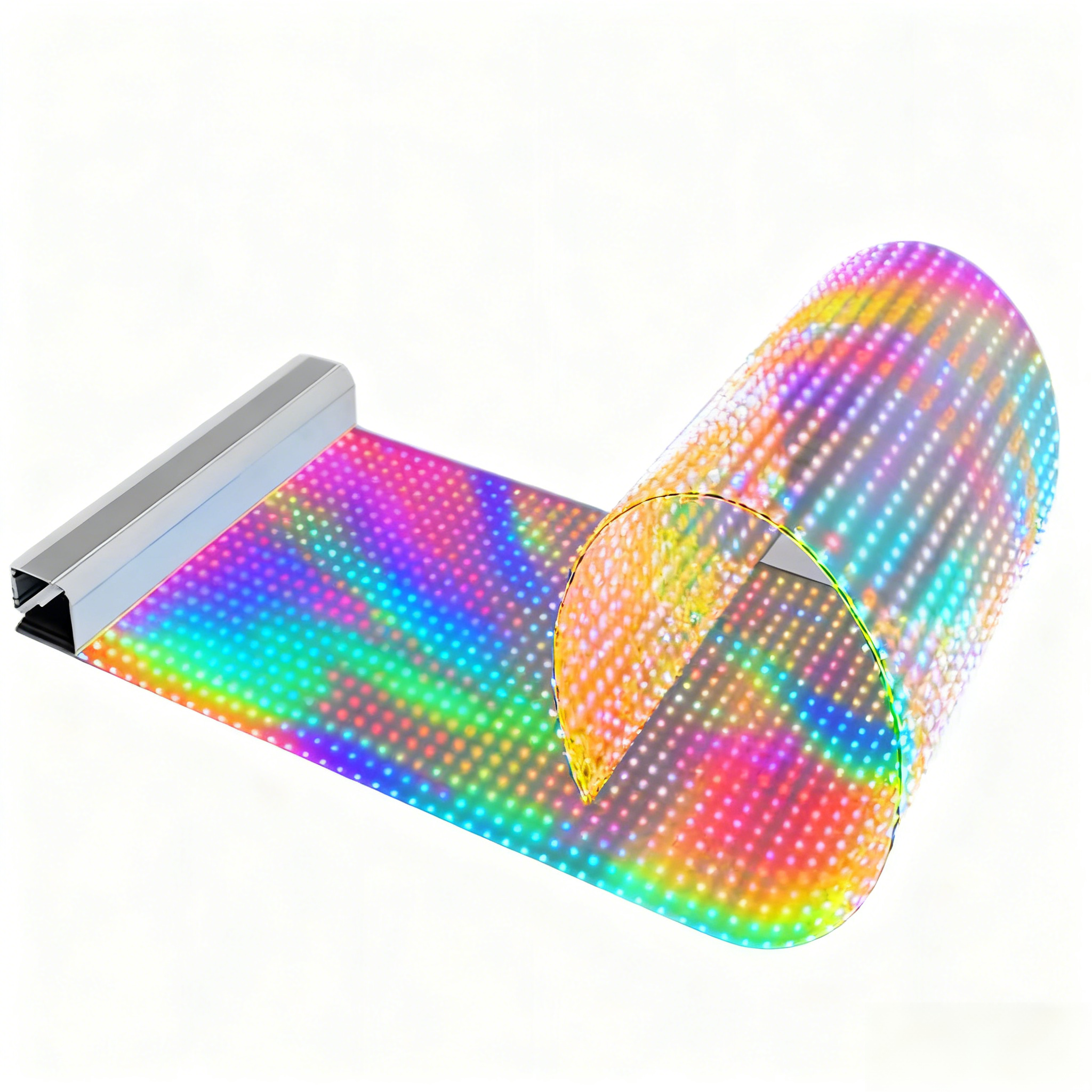

Indoor Ultra-Thin Transparent LED Film Display P16

3000Nits brightness, 1000mm x 64mm dimensions, 90% transparency with only 4mm thickness and IP30 protection rating.

LED Film Screen Specifications
Parameter Value
Pixel Pitch 16mm
Pixel 3906 points/㎡
LED specification SMD2020
Pixel composition 1R1G1B
Module Size 1000mm*64mm
Weight 6kg/㎡
Transparency ≥90%
Brightness 3000cd/㎡
Peak power consumption 300 W/㎡
Average power consumption About 120 W/㎡ (depending on the video source)
Refresh frequency ≥3840hz
Grayscale level 16Bit
Maintenance Front/rear
Brightness control level Grade 0-255
Color temperature 3200K-8500K (adjustable)
Frame change frequency ≥60Hz
Viewing angle H-H140 degrees V-V140 degrees
Input signal DVI VGA, composite video
Control screen mode Synchronous box (computer control) or asynchronous box (WiFi connection mobile phone APP control, USB flash drive control)
Protection grade IP30
Power supply requirements AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V)
Working temperature -20~50 ℃
Theoretical service life 100000 hours
Warranty 2 years
Indoor P16 Ultra-Thin Transparent LED Film Display with 3000Nits Brightness and 1000mm x 64mm Cabinet Size
Key Advantages
  • Superior transparency: Compared with traditional displays, LED film displays maintain 90% transparency while displaying clear content, allowing background visibility.
  • Ultra-thin profile: Only 4mm thickness makes these displays more eye-catching and flexible for various installations.
  • High brightness: 3000Nits brightness ensures excellent visibility even in bright indoor environments.
  • Easy installation: Can be attached directly to glass or fixed with screws without requiring steel structures.
Indoor P16 Ultra-Thin Transparent LED Film Display with 3000Nits Brightness and 1000mm x 64mm Cabinet Size
Application Scenarios
Commercial Retail
  • Shopping mall storefronts: Transparent display on glass storefronts without blocking views for retail brands.
  • Retail store interiors: Wall/glass partition displays for clothing & beauty stores to upgrade in-store visual appeal.
  • Shopping center digital signage: Flexible transparent LED film screens replace traditional ad displays.
Office & Commercial Buildings
  • Office building glass curtain walls: Display brand & office information on glass without light blockage.
  • Corporate reception areas: Showcase brand image & products to enhance office technology atmosphere.
  • Conference room glass partitions: Dynamic screens for meeting themes & data visualization.
Cultural Tourism & Leisure
  • Museum exhibition halls: Transparent displays for cultural relics that blend exhibits with digital content.
  • Hotel lobbies & elevators: Promote brand, introduce rooms & guide services to enhance guest experience.
  • Entertainment venues: Wall/glass decorative screens for cinemas/KTVs to create immersive visuals.
Public Service
  • Airport terminals: Display flight information & guidance on glass walls, combining practicality with aesthetics.
  • Hospital lobbies: Show medical guidance & health content to replace traditional paper notices.
