Indoor P6.5mm LED Transparent Film Screen with 5500nit Brightness and 3840Hz Refresh Rate for High Clarity Display
Indoor P6.5mm LED Transparent Film Screen with 5500nit Brightness and 3840Hz Refresh Rate for High Clarity Display
Indoor P6.5mm LED Transparent Film Screen with 5500nit Brightness and 3840Hz Refresh Rate for High Clarity Display
Indoor P6.5mm LED Transparent Film Screen with 5500nit Brightness and 3840Hz Refresh Rate for High Clarity Display
Indoor P6.5mm LED Transparent Film Screen with 5500nit Brightness and 3840Hz Refresh Rate for High Clarity Display
Indoor P6.5mm LED Transparent Film Screen with 5500nit Brightness and 3840Hz Refresh Rate for High Clarity Display
Specifications
Type :
Indoor P6.5mm Flim Type LED
Pixel Pitch :
P6.5mm
Standard Panel Dimensions :
1000x64mm
Service :
Front/Rear Service
Weight :
6kg/sqm
Protection Level :
IP61
Viewing Angle :
H140°/V140°
Control Systems :
Colorlight; Mooncell; NovaStar
Warranty :
1 year
Brand Name :
TBC LED
Model Number :
P6.5
Certification :
FCC, CE, ROHS
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 sqm per month
Delivery Time :
25 days
Packaging Details :
Flight Cases
Description
Indoor P6.5mm LED Transparent Film Screen with 5500nit Brightness and 3840Hz Refresh Rate
High-brightness transparent LED display with customizable panel size and 5500nit brightness
Product Specifications
Model P6.5mm
LEDs 1R1G1B
LED Type SMD2020
Pixel Pitch P6.5mm
Standard Panel Dimensions 1000*64mm
Pixel Density 23716 dots/㎡
Brightness ≥5500nit
Weight 6KG/㎡
Max Power Consumption 800W/㎡
Average Power Consumption 300W/㎡
Viewing Angle H140°/V140°
Protection Level IP61
Heat Dissipation Convective heat dissipation
Power Supply Power supply with PFC
Installation Fast install
Service Access Front/Rear
Control Mode Steady state
Color Temperature 3200-9300K
Refresh Rate 3840Hz
Working Temperature -20℃ to 65℃
Lifetime ≥100,000 hours
Input Voltage AC95-240V
Grey Grade 12-16bit
Indoor P6.5mm LED Transparent Film Screen with 5500nit Brightness and 3840Hz Refresh Rate for High Clarity Display Indoor P6.5mm LED Transparent Film Screen with 5500nit Brightness and 3840Hz Refresh Rate for High Clarity Display
Product Advantages

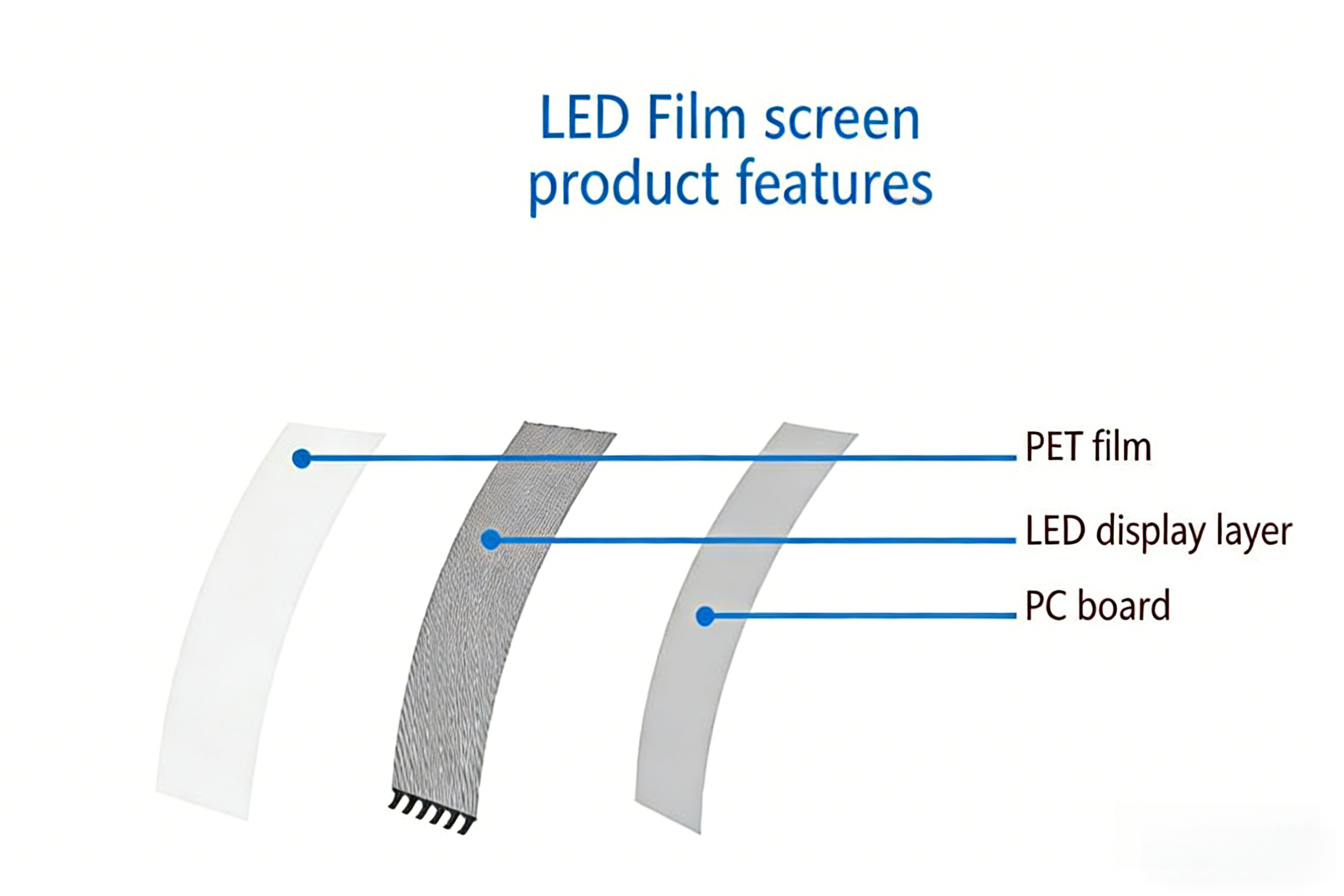

Transparent LED film (TBC LED film) is a next-generation display technology. Leveraging invisible PCB or Mesh technology, it delivers up to 95% transparency without compromising full display performance. It can transform ordinary glass facades and shop windows into unique video showcases.
  • Slim & Soft for Creative Design: The LED film thickness is only 1.2 mm with panel size of 1000 x 240 mm and weight of 0.3 kg. The flexible material can be applied to curved and round surfaces.
  • Easy Installation & Anti-UV: Paste directly on glass without frames or gaps. Clear viewing area up to 2000 mm width. Can be freely cut and folded into various shapes and large areas without visible frames behind video content.
  • Flexible Installation Options: Customizable size and layout to fit installation areas. Expandable by adding more films vertically or horizontally, or cut parallel with bezel to meet specific size requirements.
Indoor P6.5mm LED Transparent Film Screen with 5500nit Brightness and 3840Hz Refresh Rate for High Clarity Display
Our Services
  • 10 years professional LED display manufacturing experience
  • Short delivery time: 5-15 working days, adjustable according to customer requirements
  • Competitive wholesale pricing
  • OEM and ODM services available
  • Customizable products upon request
Frequently Asked Questions
How does the service work?
We have experienced engineers with 15+ years in the industry who provide technical support via video conference, TeamViewer, or on-site guidance.
What installation options do we have?
Wall mounting with metal structures.
Do you have any MOQ limit for LED screen orders?
Low minimum order quantity - modules or complete screen orders are all welcome.
What's the shipping method?
Air freight, sea, and train transport available according to different regions.
What's the payment method?
Telegraphic transfer accepted - 50% before production and 50% balance before shipment.
How do you control the production quality?
Quality management from incoming materials - all LEDs, ICs, and PSUs are pre-inspected. Modules and complete screens undergo at least 72 hours of aging testing to ensure stable quality and performance.
How does warranty work?
1-3 years warranty depending on product. Free repair or exchange of defective parts with one-way shipping.
