P2mm Pixel Pitch Flexible LED Display Modules With Lightweight Design And High Adaptability For Creative Installations
P2mm Pixel Pitch Flexible LED Display Modules With Lightweight Design And High Adaptability For Creative Installations
P2mm Pixel Pitch Flexible LED Display Modules With Lightweight Design And High Adaptability For Creative Installations
P2mm Pixel Pitch Flexible LED Display Modules With Lightweight Design And High Adaptability For Creative Installations
P2mm Pixel Pitch Flexible LED Display Modules With Lightweight Design And High Adaptability For Creative Installations
P2mm Pixel Pitch Flexible LED Display Modules With Lightweight Design And High Adaptability For Creative Installations
Specifications
Type :
Indoor Flexible LED Screen
Pixel Pitch :
P2mm
Density :
262144dots/m2
Panel Size :
320mmx160mm
Weight :
1 KG
LED Type :
SMD1515
Refresh :
3840Hz
Gray scale :
65536
Drive Method :
1/32 Scan
Brand Name :
TBC LED
Model Number :
P2.5
Certification :
FCC, CE, ROHS
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 sqm per month
Delivery Time :
15 working days
Packaging Details :
Plywood box/Flight case
Description

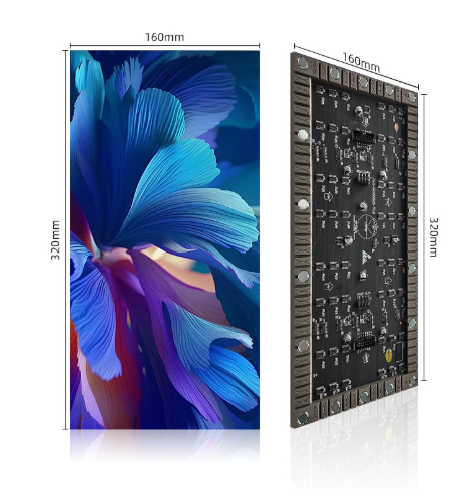

P2mm Flexible Creative LED Display Modules
Advanced flexible LED display modules featuring high adaptability and lightweight design for creative installations. These modules offer exceptional ductility for custom shaping, lifting, mounting, and suspension applications.

P2mm Pixel Pitch Flexible LED Display Modules With Lightweight Design And High Adaptability For Creative Installations

Key Features
  • Excellent ductility for arbitrary shaping and forming
  • Advanced digital video processing and distributed scanning technology
  • 360-degree high-definition display capability
  • Modular design with constant current static drive
  • High brightness true color output
  • Single-point maintenance with low repair costs
  • Low dead lamp rate with energy-efficient operation
  • Precision splicing with ±0.1mm module alignment
Technical Specifications
Indoor Specifications Mini1.86 Mini2 Mini2.5
Pixel Pitch 1.86mm 2mm 2.5mm
Density 289,050 dots/m² 262,144 dots/m² 160,000 dots/m²
LED Type SMD1515 SMD1515 SMD2121
Panel Size 320mm × 160mm 320mm × 160mm 320mm × 160mm
Weight 1 KG 1 KG 1 KG
Drive Method 1/43 Scan 1/32 Scan 1/25 Scan
Gray Scale 65,536 65,536 65,536
Brightness 800 nits 800 nits 800 nits
Refresh Rate 3840Hz 3840Hz 3840Hz
Input Voltage AC110V/220V ±10% AC110V/220V ±10% AC110V/220V ±10%
Max Power Consumption 800W 800W 800W
Average Power Consumption 300W 300W 300W
Maintenance Method Front and Rear Front and Rear Front and Rear
Life Span 100,000 Hours 100,000 Hours 100,000 Hours
Product Advantages
Flexibility and Stability
High-quality flexible circuit board material provides strong flexibility for custom bending angles to accommodate complex installation requirements. Dual-latch energy-saving IC and anti-glare black LED lights enhance display quality and stability.
Ease of Installation
Magnetic column suction installation method enables quick and convenient setup. Fast joint connections with box connecting cables ensure firm and reliable assembly.

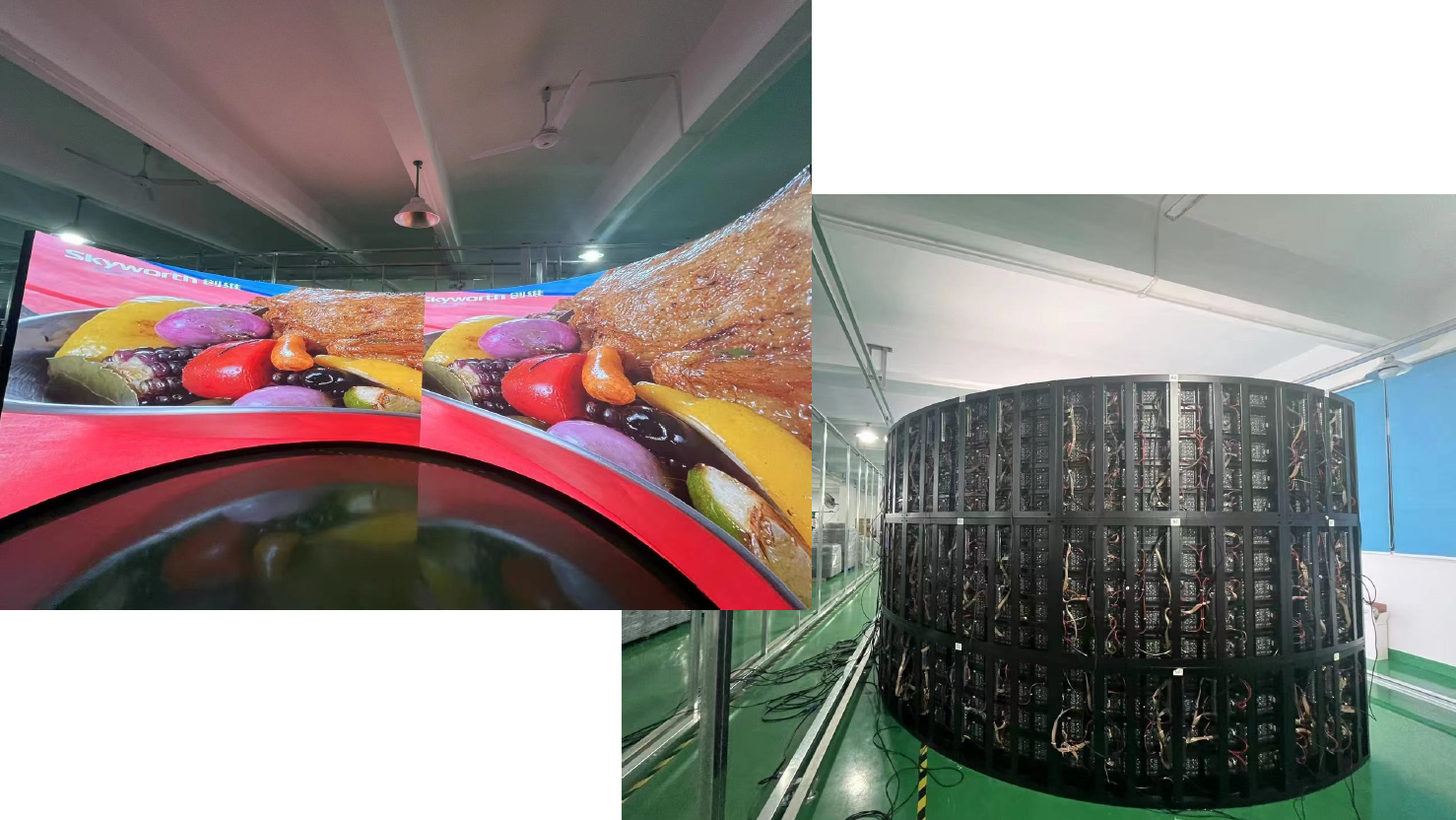

Ductility and Molding Capability
Capable of arbitrary modeling including cylindrical screens with high performance. Suitable for lifting, mounting, and hanging applications to maximize scene requirements.
High Quality and Low Maintenance
Single-point maintenance capability reduces repair costs. High brightness with low dead lamp rate and energy-saving operation. Seamless splicing maintains precision within ±0.1mm tolerance.
Energy Efficient and Eco-Friendly
Low energy consumption using efficient LED technology reduces environmental impact while maintaining performance.
P2mm Pixel Pitch Flexible LED Display Modules With Lightweight Design And High Adaptability For Creative Installations
Application Areas

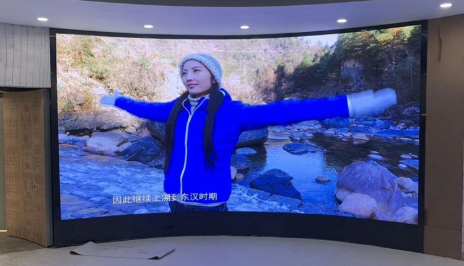

Architectural Decoration
Create unique shapes and designs that add artistic and technological appeal to building structures and interiors.
Special-Shaped Display Screens
Ideal for manufacturing custom-shaped displays including arc-shaped screens, cylindrical screens, wavy screens, and ribbon configurations.
Smart Technology Integration
Applications in smart homes for lighting, smart transportation for traffic signals, and medical fields for surgical and viewing lamps.

P2mm Pixel Pitch Flexible LED Display Modules With Lightweight Design And High Adaptability For Creative Installations
