Specifications
Brand Name :
TBC LED
Model Number :
P4-8
Certification :
FCC, CE, ROHS
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 sqm per month
Delivery Time :
25 days
Packaging Details :
Flight Cases
Type :
Indoor P4-8mm Flim Type LED
Pixel Pitch :
P4-8mm
Standard Panel Dimensions :
1000x256mm
Service :
Front/Rear Service
Weight :
6kg/sqm
Refresh Rate :
3840Hz
Protection Level :
IP61
Viewing Angle :
H140°/V140°
Warranty :
1 year
Description

Indoor P4-8 Led Transparent Film Screen Led Transparent Display Customized Panel Size 5500nit


Specification Of P6.5mm Indoor Film LED Display

Product Unit Parameters

Parameters

Mode P4-8mm
LEDs 1R1G1B
LED type SMD2121
Pixel pitch P4-8mm
Standard Panel Dimensions 1000×256mm
Pixel density 31250dots/㎡
Brightness ≥5500nit
Weight 6KG/㎡
Max consumption 800W/㎡
Adv consumption 300W/㎡
Viewing angle H150°/V150°
Protection level IP61

Heat dissipation

Convective heat dissipation
Power supply Power supply with PFC
Installation Fast install
Service Front/Rear
Control mode steady state
Color temperature 3200-9300K
Refresh rate 3840Hz
Working temperature -20℃ to 65℃
Life time ≥100,000 hours
Input voltage AC95-240V
Grey grade 12-16bit

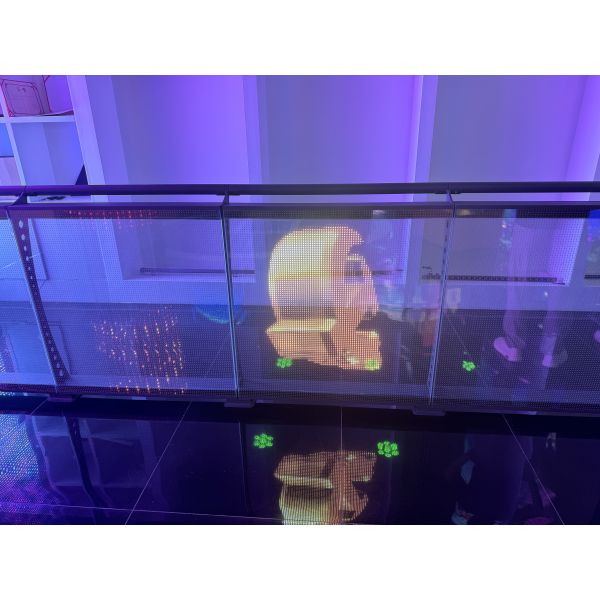

Indoor P4-8mm LED Transparent Film Screen with 5500nit Brightness and 3840Hz Refresh Rate

Indoor P4-8mm LED Transparent Film Screen with 5500nit Brightness and 3840Hz Refresh Rate


Introduction:

LED film display is a display that uses LED technology to be embedded behind transparent or translucent glass, which can display multimedia content such as images, videos, and text. LED film displays are widely used in billboards, commercial buildings, retail stores, museums, exhibitions, stations, hotels and other occasions to attract attention and convey information.


5 steps of film led screen in stallation:


1. Tear off the protection of glue-water stripe.
2. Paste on the window glass according to the layout o finstallation and fix the panel on frame.
3.Connect signal&power cables between film and controllers.
4. Connect the panel clips.
5. Fix the cover and power box.


Indoor P4-8mm LED Transparent Film Screen with 5500nit Brightness and 3840Hz Refresh Rate


Our Services


1. 10 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request


FAQ


Q1. How does the service work?

A: We have experienced Engineers who worked in the industry for 15 years and able to communicate with fluent English. They can remotely provide technical support via video conference or teamviewer or go to the site for the guidance.

Q2. What installation options do we have?

A: Wall mounting with metal structures.

Q3. Do you have any MOQ limit for led screen order?

A: Low MOQ, modules or complete screen order are all welcome.

Q4. What's the shipping method?

A: Air freight, sea and train transport according to different region.

Q5. What's the payment method?

A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.

Q6. How do you control the production quality?

A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.

The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.

Q7: How does warranty work?

A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
