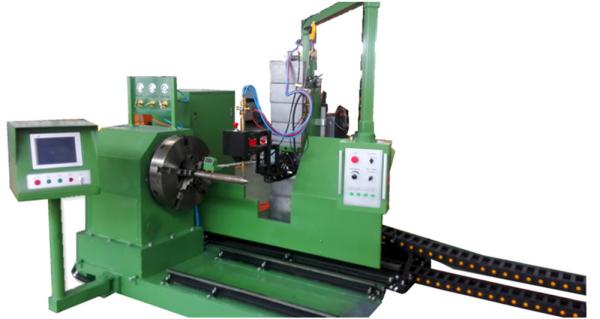

Chuck-type CNC profile Pipe cutter machine with powermax105
Chuck-type CNC profile Pipe cutter machine with powermax105
Specifications
Place of Origin :
China
Brand Name :
TAYOR
Certification :
CE
Model Number :
CNCXG600-V
Process Pipe OD :
60mm-630mm
Process Pipe length :
1-20meter
Cutting Torch :
1plasma torch and 1 oxy-fuel Torch
Control :
CNC controlled and 5 aixs
Price :
Negotiable
Packaging Details :
wooden case
Delivery Time :
30days
Payment Terms :
T/T
Supply Ability :
500 sets/year
MOQ :
1 set
Machine Installation :
engineer visiting service by supplier
Opreation training :
engineer visiting service by supplier
Description

Chuck-type CNC Pipe Profiler

Model:CNCXG600-V

Description

Specification

Pipe Diameter

Φ60－Φ630mm

Torch Rail length (Pipe length)

≤12000mm

Cutting model

Flame and plasma

Plasma Cutting Thickness

N/A

Plasma model

N/A(Prepared by Buyer)

Flame cutting thickness

6－50mm

Photoelectric Height Sensor

0.1 sec response speed

Control System

CNC controller

Data input

Torch Screen Data Input

Max Loading capacity

5000Kg

Pipe Chuck

3 Jaws concentric chuck

Flame Max beveling angle

±60°

Plasma Max beveling angle

±45°

Flame cutting speed

50mm/min -800mm/min

Plasma cutting speed

100mm/min-4000mm/min

Moving Error

≤0.2mm /1000mm

Turning Angle Error

≤1° per 180°

Pipe Rotate speed

0-10000mm/min
