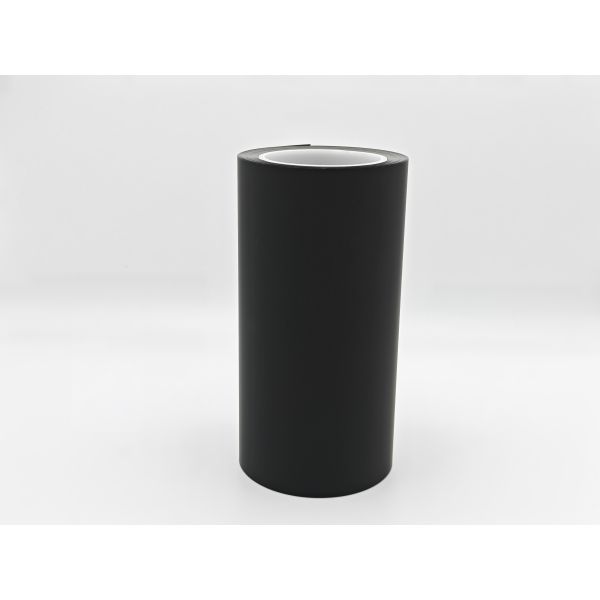

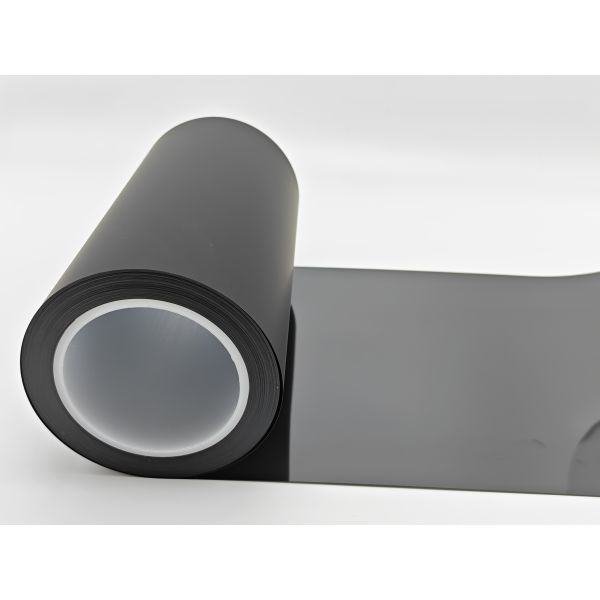

145-155um PET Protective Film With 150℃ Temperature Resistance
145-155um PET Protective Film With 150℃ Temperature Resistance
145-155um PET Protective Film With 150℃ Temperature Resistance
145-155um PET Protective Film With 150℃ Temperature Resistance
145-155um PET Protective Film With 150℃ Temperature Resistance
145-155um PET Protective Film With 150℃ Temperature Resistance
Specifications
Brand Name :
Sanfeng Win
Model Number :
PET150BZ
Certification :
ISO 14001:2015
Place of Origin :
Jiangsu,China
MOQ :
100 rolls
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 rolls
Delivery Time :
7-10 days
Packaging Details :
Heat-seal packaging first,then put them into the carton
Name :
PET Film
Use :
Protection
Color :
Black
Adhesive :
No Adhesive
Tape Thickness :
150μm±5μm
Tape Size :
As to your requirements
Description
PET Film
Description

PET150BZ is a matte black PET film with a special coating for high surface tension, excellent adhesion to tapes, anti-static properties, and a distinctive matte appearance for anti-counterfeiting.

Applications
  • Bonding with functional electronic components to enhance adhesion
  • Foaming of low-surface-energy materials to prevent shrinkage
  • Anti-counterfeiting packaging and labeling in consumer electronics
  • Static-sensitive electronic component protection
  • High-performance tape backing material
  • Automotive interior and electronic insulation layers
Physical Parameters
Item Specification Test Method
Product Thickness 155±10 μm ASTM D3652
Black Coating Thickness 5±1 μm -
GU Value 0.0±1.0 BYK Gloss Meter
Surface Tension ≥64 dyne Acrotest Pen
Coating Adhesion Grade 0 ASTM D257
Surface Resistance 1.0×10⁸–10¹² Ω ASTM D3359

145-155um PET Protective Film With 150℃ Temperature Resistance

145-155um PET Protective Film With 150℃ Temperature Resistance

Company Introduction

Sanfeng Win New Materials (Jiangsu) Co., Ltd. (Sanfeng Win), founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.

FAQ

1. What is the main advantage of PET150BZ?

It has high surface tension, enabling excellent bonding with various tapes.

2. Does this film have anti-static properties?

Yes, its surface resistance is between 1.0×10⁸–10¹² Ω, reducing static damage.

3. What is the appearance of this film?

It has a matte black appearance, which also provides anti-counterfeiting features.

4. What is the standard thickness of this product?

The standard thickness is 155±10 μm, with a black coating of 5±1 μm.

5. Can it be used in electronic applications?

Yes, it is ideal for electronic components to prevent static and improve bonding.

6. What is the recommended test environment?

Testing is recommended at 23±2°C and 50±5% relative humidity.
