Specifications
Brand Name :
Sanfeng Win
Model Number :
MST228
Certification :
ISO 14001:2015
Place of Origin :
Jiangsu,China
MOQ :
100 rolls
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000 Rolls per Week
Delivery Time :
7-10 days
Packaging Details :
Heat-seal packaging first,then put them into the carton
Name :
Masking Tape
Use :
Masking,Decoration,Protection
Color :
Yellow
Adhesive :
Rubber
Tape Thickness :
150μm
Tape Size :
As To Your Requirements
Description

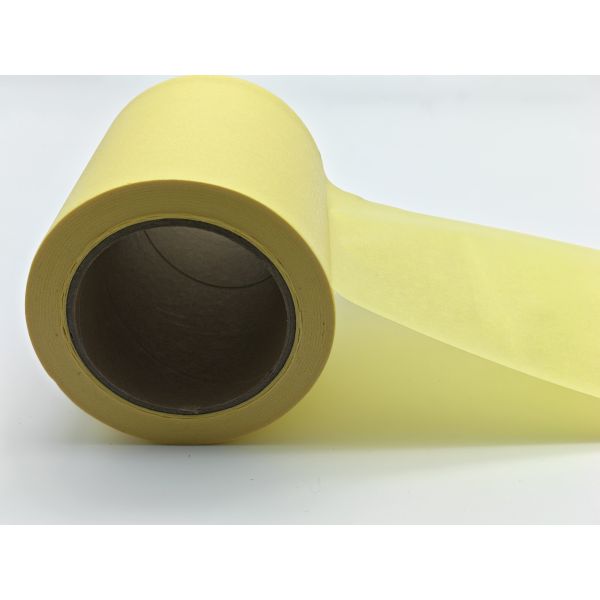

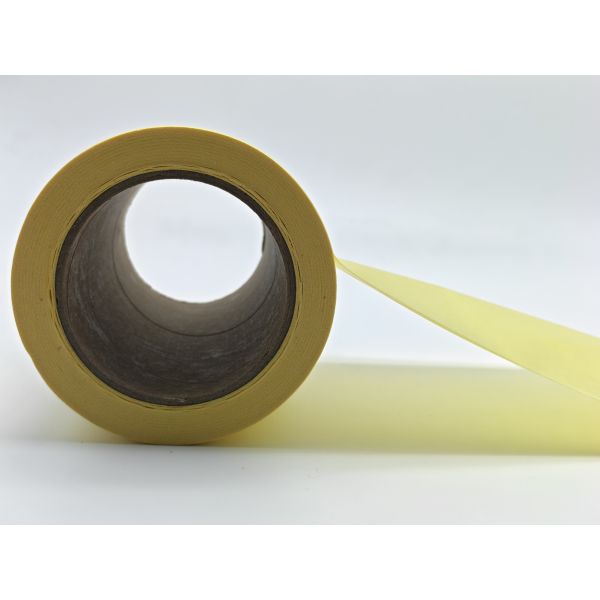

Masking Tape
Description

MST228 is a high-temperature crepe paper masking tape with rubber adhesive. It offers stable performance, proper adhesion, and excellent coverage for electronics and industrial masking and protection.

Applications
  • Surface masking and protection in electronic component manufacturing
  • Industrial painting and powder coating masking
  • Positioning and fixing of various parts during assembly
  • Packaging reinforcement and sealing in logistics
  • Automotive spray painting and surface protection
  • High-temperature masking in PCB soldering processes
Physical Parameters
Item Specification Standard
Total Thickness 0.15±0.02mm GB/T 4513-2002
Adhesion Strength 600g/25mm (180°) GB-T2792-2014
Tensile Strength ≥40N/15mm GB/T 12914-2008
Elongation Rate ≥10% GB/T 12914-2008
Temperature Resistance 100–120°C On stainless steel
Width/Length 1250mm±0.5mm / 100m-2000m±0.5% Vernier caliper
Backing Material Crepe paper Visual & Physical Test
Adhesive Type Rubber adhesive -

Low Residue Easy Masking Tape With High Temperature Resistance For Precision Applications

Low Residue Easy Masking Tape With High Temperature Resistance For Precision Applications

Test Conditions
  • Temperature: 18–25 °C
  • Humidity: 55 ± 20%
  • Adherend: Steel plate
  • Peel speed: 300 mm/min
  • Peel angles: 180° & 90°
Company Introduction

Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.

To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.

The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.

FAQ
1.What is the total thickness of MST228?

0.15±0.02mm, compliant with GB/T 4513-2002.

2.What is its temperature resistance?

100–120°C, tested on stainless steel.

3.What is the adhesion strength?

600g/25mm (180° peel), per GB-T2792-2014.

4.What is the tensile strength?

≥40N/15mm, compliant with GB/T 12914-2008.

5.What is the elongation rate?

≥10%, per GB/T 12914-2008.

6.What materials is MST228 made of?

It uses crepe paper backing with rubber adhesive.
