Specifications
Brand Name :
Sanfeng Win
Model Number :
YY-0302T
Certification :
ISO 14001:2015
Place of Origin :
Jiangsu,China
MOQ :
100 rolls
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 rolls
Delivery Time :
7-10 days
Packaging Details :
Heat-seal packaging first,then put them into the carton
Name :
Acrylic Protective Film
Use :
Protection
Color :
Transparent
Adhesive :
Acrylic Adhesive
Tape Thickness :
40μm±5μm
Tape Size :
As to your requirements
Description

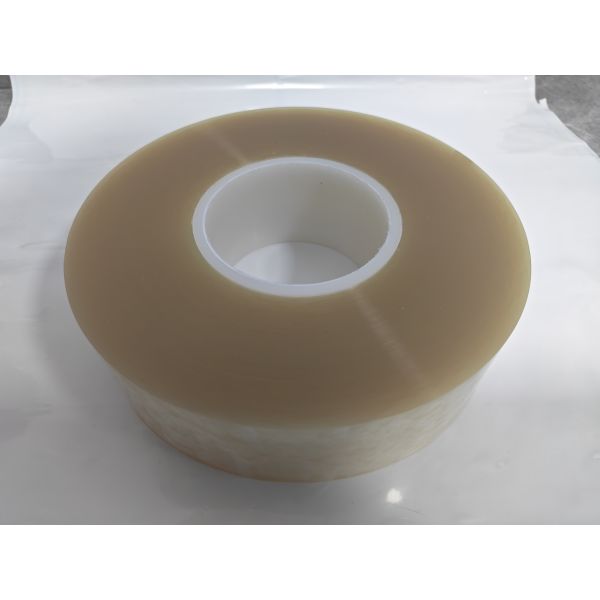

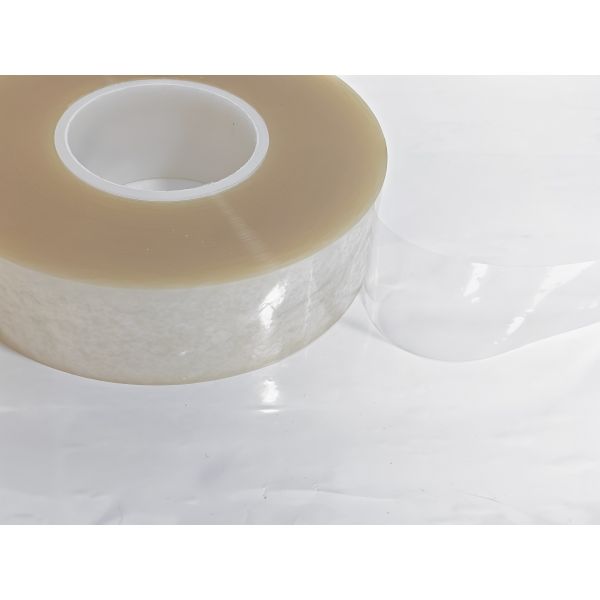

Acrylic Protective Film
Description

YY-0302T Series is a 0.04mm thick acrylic protective film with PET as the base material and single-coated acrylic adhesive. It offers moderate adhesion, good holding power, and excellent heat and weather resistance, ideal for protecting metal, plastic, and glass surfaces.

Applications
  1. Metal sheet surface protection during processing and transportation
  2. Plastic profile and panel scratch and stain prevention
  3. Glass and mirror surface protection in construction and furniture
  4. Electronic product shell and screen protection
  5. Automotive paint and interior trim protection
  6. Stainless steel and aluminum profile surface protection
Physical Parameters
Item Specification Standard
Total Thickness 40±5 μm GB/T7125-2014
Dry Coating Thickness 5±2 μm GB/T7125-2014
Adhesion Strength 1~3g/25mm (180° peel, half hour) GB/T2792-2014
Temperature Resistance 180℃ (half hour) Oven test

35-45um Acrylic Protective Film With Clean Peeling For 3D Curved Glass And Electronics

35-45um Acrylic Protective Film With Clean Peeling For 3D Curved Glass And Electronics

Company Introduction

Sanfeng Win New Materials (Jiangsu) Co., Ltd. (Sanyifeng), founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.

FAQ
  1. What is the total thickness of YY-0302T Series?

    The total thickness is 0.04±0.005 mm, conforming to GB/T7125-2014.

  2. What is the temperature resistance of this protective film?

    It can withstand 180℃ for half an hour, tested via oven method.

  3. What is the adhesion strength of YY-0302T Series?

    The adhesion strength is 1~3g/25mm (180° peel, half hour), in line with GB/T2792-2014.

  4. What materials can this protective film be applied to?

    It is suitable for metal, plastic, glass, and other substrates.

  5. What are the main performance advantages of this product?

    It has moderate adhesion, good holding power, and excellent heat and weather resistance.

  6. Can Sanyifeng provide customized specifications for this protective film?

    Yes, with our professional R&D team and production line, we can offer customized thickness, adhesion, and other specifications to meet customer needs.
