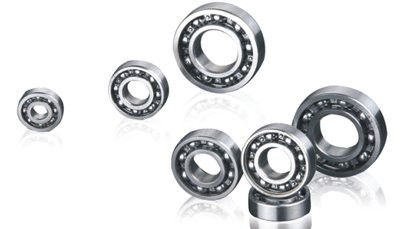

High Speed And Long Life Deep Groove Ball Bearings 6800 Series With Axial Load
High Speed And Long Life Deep Groove Ball Bearings 6800 Series With Axial Load
High Speed And Long Life Deep Groove Ball Bearings 6800 Series With Axial Load
High Speed And Long Life Deep Groove Ball Bearings 6800 Series With Axial Load
High Speed And Long Life Deep Groove Ball Bearings 6800 Series With Axial Load
High Speed And Long Life Deep Groove Ball Bearings 6800 Series With Axial Load
Specifications
Place of Origin :
CHINA
Brand Name :
XZR
Certification :
ISO9001、 OEM
Model Number :
6800
MOQ :
1PC
Price :
Based on detailed order
Packaging Details :
Poly bag + box into Carton + Plywood Case
Delivery Time :
3~30 DAYS
Payment Terms :
T/T
Supply Ability :
20 million USD/year
Description


Quick Detail:

Deep Groove Ball Bearings High Speed Axial Load Deep Groove Ball Bearing 6800 Series

Structure: Deep Groove
Precision Rating:ABEC-1,ABEC-3,ABEC-5,ABEC-7
Clearance:C0,C2,C3,C4,C5
Vibration level codes: V3, V2, V1
Noise rank: Z1,Z2,Z3
Number of Row: Single Row
Material:Chrome Steel Gcr15 and Stainless Steel 440C ,304
Certification: ISO9001
Packing: as your requirement



Description:


product name deep groove ball bearing 6800
Brand name FL
Series All Series of Deep Groove Ball Bearing & Miniature Bearings
cage material nylon , steel , brass
Precision P0 P5 P6 P4
Material GCR15
Service OEM service
Tolerance Codes ABEC-1, ABEC-3, ABEC-5, ABEC-7
Seal Type Open and Seal,Z,RZ,RS,2RS,2RZ,
Vibration Level Codes Z1V1 , Z2V2 , Z3V3 , Z4V4,
Quality standard ISO9001


.


Applications:

Micro motors, stepping motors, fan motors, VCR pinch rollers, computer printers, copy machine-feed rollers, dental spindles, servo motors, encoders, polygonal mirror scanner motors, high frequency spindles, gyro rotors, gyro gimbals



Specifications:

Model
Shape Dimension(mm)

Steel Ball
Basic Load
Rating(KN)
Max Speed
(rpm)
(kg)

Weight
(kg)
Bore

d		 Quter
Diameter
D		 Width

B		 Radius

r min		 Size


mm		 Quantity


Number		 Dynamic


Cr		 Static


Cor


Grease

Oil
mm inch mm inch mm inch mm inch
6800 Series
6800 10 0.3937 19 0.7480 5 0.1969 0.3 0.0118 2.381 9 1.83 2.381 26000 34000 0.005
6801 12 0.4724 21 0.8268 5 0.1969 0.3 0.0118 2.381 12 1.92 2.381 22000 30000 0.006
6802 15 0.5906 24 0.9449 5 0.1969 0.3 0.0118 2.381 14 2.08 2.381 20000 28000 0.007
6803 17 0.6693 26 1.0236 5 0.1969 0.3 0.0118 2.381 15 2.81 2.381 19000 26000 0.008
6804 20 0.7874 32 1.2598 7 0.2756 0.3 0.0118 3.5 13 4 3.5 17000 22000 0.019
6805 25 0.9843 37 1.4567 7 0.2756 0.3 0.0118 3.5 15 4.3 3.5 15000 19000 0.022
6806 30 1.1811 42 1.6535 7 0.2756 0.3 0.0118 3.175 19 4.7 3.175 13000 17000 0.026
6807 35 1.3780 47 1.8504 7 0.2756 0.3 0.0118 3.175 22 4.9 3.175 11000 15000 0.029
6808 40 1.5784 52 2.0472 7 0.2756 0.3 0.0118 3.175 22 5.1 3.175 9000 13000 0.033
6809 45 1.7717 58 2.2835 7 0.2756 0.3 0.0118 3.175 24 6.4 3.175 7000 11000 0.04
6810 50 1.9685 65 2.5591 7 0.2756 0.3 0.0118 3.175 24 6.6 3.175 5000 9000 0.052


Fuctions:


Single row deep groove ball bearings are the most widely used roller bearing type in the world due to

their versatility and overall performance. They are characterized by having deep raceway grooves in

which the inner and outer rings have circular arcs of slightly larger radius than that of the balls. They

also have non-eparable rings. Single row deep groove ball bearings come in three numerical series

representing the size and load capacity of each.

They are:
· 6000 Series - Extra Light Ball Bearings – Ideal for limited space applications
· 6200 Series - Light Series Ball Bearings – Balanced between space and load capacity
· 6300 Series - Medium Series Ball Bearings – Ideal for heavier load capacity applications


Competitive Advantage:


• High Quality Chrome Steel – Ultra clean chrome steel extend bearing life.

• Advanced Grease Technology – High quality lubricant extend grease life and performance of bearings.

• High Grade Balls – Roll quietly and smoothly even at high speed.

• Super Finished Raceways – Specially honed to minimise noise and improve lubricant distribution and life.

• Perfect Seals – Provide resistance to contamination in the toughest environments.

• Varied Cages – Offering a number of different cage types to suit your application needs.

• Quality Assured – 100% testing ensure total product quality..



Main Model:



Ball bearing with Deep Groove(open-sided,ZZ, 2RZ size) 6800
