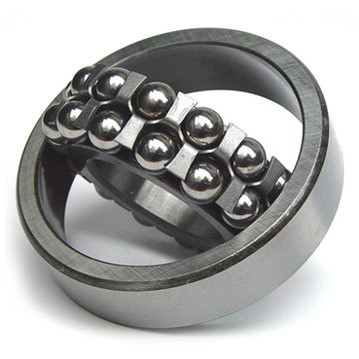

Open Self-Aligning Ball Bearing
Open Self-Aligning Ball Bearing
Specifications
Place of Origin :
CHINA
Brand Name :
XZR
Certification :
ISO9001、 OEM
Model Number :
1309
MOQ :
1PC
Packaging Details :
Poly bag + box into Carton + Plywood Case
Delivery Time :
Based on Detailed Order
Payment Terms :
T/T
Supply Ability :
Based on Detailed Order
Description




Quick Detail:

Open Type 1309 Self-Aligning Ball Bearings with High Precision and Low Noise
Structure: Self-Aligning

Precision Rating:P0 P5 P6 as request
Vibration : V1,V2,V3,Z4
Noise rank: Z1,Z2,Z3,Z4
Clearance : C0,C1,C2,C3
Seals Type: Open
Certification: ISO9001
Place of Origin: China (Mainland)

Description:

Self-aligning ball bearing outer ring raceway is processed into spherical shape, the inner raceway with two double row deep groove ball bearings, aligning performance. It is mainly used to bear radial load, radial load at the same time, it can withstand a small amount of axial load, but generally can not bear the pure axial load, the speed limit lower than the deep groove ball bearings. This kind of bearings are used for the load prone to bending under the double bearing shaft, and dual bearings coaxial holes can not guarantee that the parts in the strict, but the inner ring and outer ring center line of the relative steepness of the center line of not more than 3 degrees.

NEW MODLE

OLD MODLE

ID
(mm)

OD
(mm)

WIDTH
(mm)

Cr
(kN)

Cor
(kN)

GREASE SPEED
(r/min)

OIL SPEED
(r/min)

WEIGHT

1309

1309

45

100

25

38.1

12.7

6100

7500

0.957


Applications:

self-aligning ball bearing has two rows of balls and a common co The ncave sphered raceway in the outer ring. The bearing is consequently self-aligning and insensitive to angular misalignments of the shaft relative to the housing. It is particularly suitable for applications where considerable shaft deflections or misalignment are to be expected. Additionally, the self-aligning ball bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds.

Specifications:

1. Reliable quality,all goods same quality as our samples.
2. Various types stock bearing goods.
3. Long life.
4. Strong load capacity.
5. High precision.
6. Low noisy .
7. Reasonable price.
8. High Rotation Speed.
9. Low friction coefficient.


Competitive Advantage:


1. Effacttive Factory
2. Stricter Quality Control
3. Faster Delivery
4.More Competitive Price
5. Better Resources
6. Professional Technological knowledge
