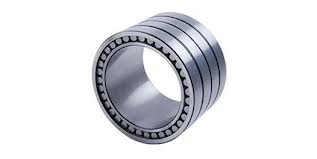

Four row stainless steel Cylindrical roller bearing for blooming mill
Four row stainless steel Cylindrical roller bearing for blooming mill
Four row stainless steel Cylindrical roller bearing for blooming mill
Four row stainless steel Cylindrical roller bearing for blooming mill
Specifications
Place of Origin :
CHINA
Brand Name :
XZR
Certification :
ISO9001、 OEM
Model Number :
FC6890250
MOQ :
N/A
Packaging Details :
Poly bag + box into Carton + Plywood Case
Delivery Time :
Based on Detailed Order
Payment Terms :
T/T
Supply Ability :
Based on Detailed Order
Description

Four row stainless steel Cylindrical roller bearing for blooming mill

Quick Detail:

P0 P6 P5 Cylindrical roller bearing FC6890250 for rolling mill

Structure: Cylindrical

Number of Row: Four row

Precision Rating: P0,P5,P6

Material: bearing steel; chrome steel;stainless steel

Place of Origin: China (Mainland)

OEM: Accept

Certificate: ISO9001:2008

Seals Type:OPEN

Description:

Structures
FC type: These types of bearings have two outer rings with ribs, full set of outer ring (outer ring, rollers, and cages), and an inner ring. Their cages are comb-like structures.
FCD type: These types of bearings have two outer rings with ribs, full set of outer ring (outer ring, rollers, and cages),and two inner rings. Their cages are comb-like structures.

Characters

Four rows cylindrical roller bearings have higher precision for their simple shape of rollers and raceways. They have smaller radial size, higher speed limit, higher dynamic rated load, and higher radial load ability. But they can’t take the axial load. Because of no inner rib, the inner ring and outer ring set, outer ring with rollers and cages, can be installed separately.
For those frequently replaced rolls of cold rolling and hot rolling mill, these bearings have the advantages of high radial load ability, high rotation accuracy, and easy installation. Therefore, they are the first choice for all kinds of rolling mill.

FC:Double outer races,single inner race,no rib on the inner race.
FCD:Double outer races,double inner races,no rib on the inner race.
FCDP:Double outer races,with only middle rib on and loose rib on the outer race,double inner races,no rib on the inner race.

Bearing No. d (mm) D (mm) B (mm) Cr (KN) Cor (KN) Mass (kg)
FC6890250 / 672768 340 450 250 2307 6585 124.4

Applications:

Four-row cylindrical roller bearings are mainly used for heavy machineries, such as mounted on the backup roll of blooming mill, section mill, plate mill, etc.

FEATURES:

Four row cylindrical roller bearings (also called rolling mill bearing) are almost exclusive

to metals industry and carry heavy radial loads in steel, aluminum and other metal rolling
mills. Four-row cylindrical roller bearings have an extremely high radial load capacity, but
no thrust capacity. This bearing type is mostly used in roll neck and work roll applications
in the metal rolling industry.
In four-row cylindrical roller bearings, the rollers are guided between integral or non-integral
flanges on the outer ring. The inner ring is without flanges; axial displacement of the shaft
in respect to the housing can therefore be accommodated by the bearing within certain limits.
