Cone Tapered Roller Thrust Bearings 32011 33011 30211 5.5cm For Aerospace
Cone Tapered Roller Thrust Bearings 32011 33011 30211 5.5cm For Aerospace
Cone Tapered Roller Thrust Bearings 32011 33011 30211 5.5cm For Aerospace
Cone Tapered Roller Thrust Bearings 32011 33011 30211 5.5cm For Aerospace
Cone Tapered Roller Thrust Bearings 32011 33011 30211 5.5cm For Aerospace
Cone Tapered Roller Thrust Bearings 32011 33011 30211 5.5cm For Aerospace
Specifications
Brand Name :
DCM
Model Number :
Tapered Roller Bearings 33000 Series
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Vibration :
V1 V2
Type :
Roller
Structure :
Taper
Cage :
Steel Cage
Application :
Automotive
Description

ID 55 mm 32911 32011 33011 30211 32211 33211 30311 31311 32311 V1 V2 P6 P6X P5

Features

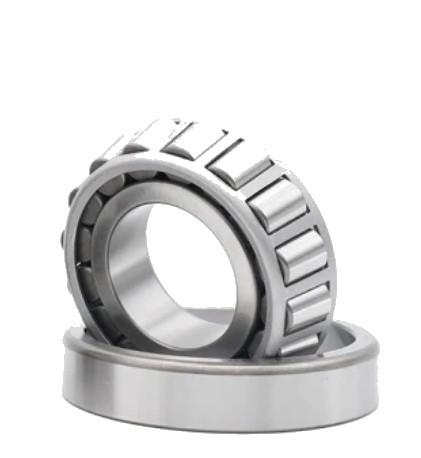

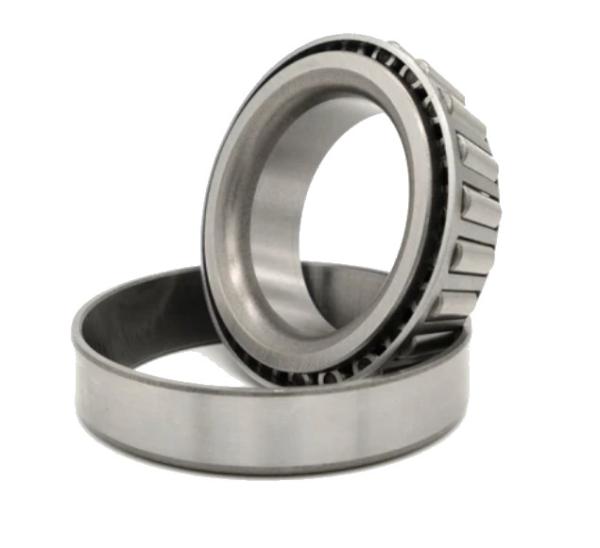

Tapered Roller Bearings are designed for using in a wide range of applications, including automotive, tractor, rolling mill, mining, metallurgical, plastic machinery,etc. This is a separable type of bearing. The inner ring (cone), along with the cage and rollers, is one assembly unit; the outer ring (cup) is the other assembly unit. This feature allows the bearings to be fitted separately and adjusted so that the optimum clearance or preload for each application is achieved.

Due to the inclined position of the tapered rollers, the contact lines between the rollers and raceways intersect at a common point on the axis of the bearing. The contact surfaces of the raceways and tapered rollers are modified to limit edge stresses. As a result of this modification and the large number of rollers, this bearing has high load-carrying capacity and is designed to carry axial and radial loads simultaneously. Since a single bearing of this type can only carry axial loads in one direction, the bearings are usually mounted in pairs.

DCM can produce high quality TRB as the customer requests.We are happy to produce further construction methods. Please do not hesitate to contact us for special bearing characters.We can also supply OEM service.

Product Specification

Basic dimension Basic load rating Limiting Speeds Weight Caculation factor Bearing code
d D B C T rmin nmin Cr Cor Grease Oil Wt e Y Yo
mm mm mm mm mm mm mm kN kN r/min r/min kg
55 80 17 14 17 1 1 45.5 74.5 4300 5600 0.282 0.31 1.9 1.1 32911
90 23 17.5 23 1.5 1.5 73.8 118.9 4000 5300 0.552 0.41 1.5 0.81 32011
90 27 21 27 1.5 1.5 91.5 138 3800 5300 0.657 0.31 1.9 1.1 33011
100 21 18 22.75 2 1.5 90.8 107 3800 5000 0.687 0.41 1.5 0.81 30211
100 25 21 26.75 2 1.5 108 134 3800 5000 0.839 0.41 1.5 0.81 32211
100 35 27 35 2 1.5 143 196 3600 5000 1.17 0.4 1.5 0.8 33211
120 29 25 31.5 2.5 2 153 178 3200 4300 1.65 0.35 1.7 0.96 30311
120 29 21 31.5 2.5 2 136 157 2800 3800 1.78 0.83 0.73 0.4 31311
120 43 35 45.5 2.5 2 218 280 3200 4200 2.43 0.35 1.7 0.96 32311


Application

  • Logistic Transport Facilities
  • Automation Technology
  • Machine Tools
  • Aerospace Industry
  • Mechanical Engineering
  • Industrial Robots
  • Textile Machinery
  • Automotive Industry
  • Construction Machinery
  • Electric Motors
  • Gearboxes
