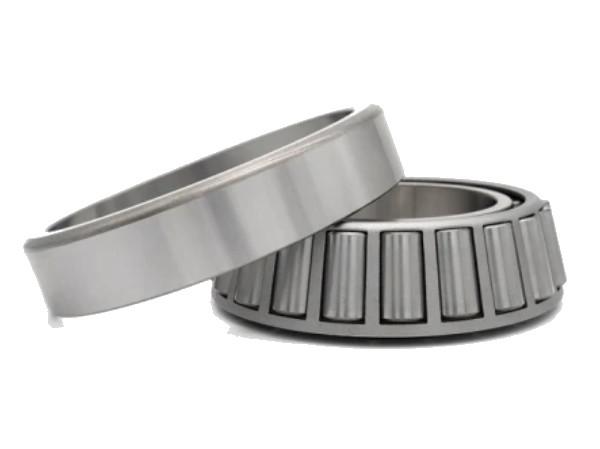

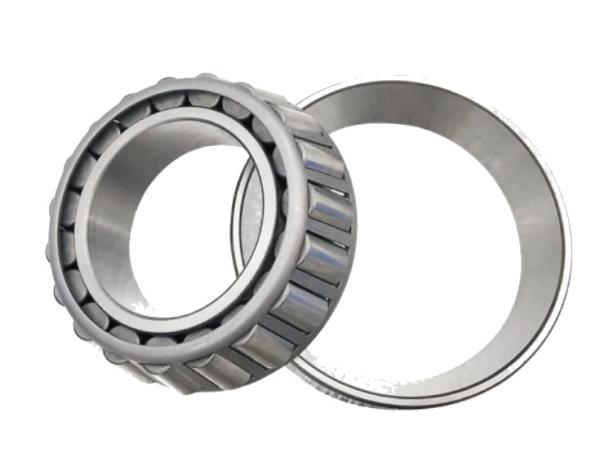

V1 V2 Tapered Roller Bearings Single Row 32018 33018 9cm Size
V1 V2 Tapered Roller Bearings Single Row 32018 33018 9cm Size
V1 V2 Tapered Roller Bearings Single Row 32018 33018 9cm Size
V1 V2 Tapered Roller Bearings Single Row 32018 33018 9cm Size
V1 V2 Tapered Roller Bearings Single Row 32018 33018 9cm Size
V1 V2 Tapered Roller Bearings Single Row 32018 33018 9cm Size
Specifications
Brand Name :
DCM
Model Number :
Tapered Roller Bearings 33000 Series
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Vibration :
V1 V2
Type :
Roller
Structure :
Taper
Cage :
Steel Cage
Application :
Automotive
Description

ID 90 mm 32918 32018 33018 30218 32218 33218 30318 31318 32318 V1 V2 P6 P6X P5

Features

Tapered Roller Bearings are designed for using in a wide range of applications, including automotive, tractor, rolling mill, mining, metallurgical, plastic machinery,etc. This is a separable type of bearing. The inner ring (cone), along with the cage and rollers, is one assembly unit; the outer ring (cup) is the other assembly unit. This feature allows the bearings to be fitted separately and adjusted so that the optimum clearance or preload for each application is achieved.

Due to the inclined position of the tapered rollers, the contact lines between the rollers and raceways intersect at a common point on the axis of the bearing. The contact surfaces of the raceways and tapered rollers are modified to limit edge stresses. As a result of this modification and the large number of rollers, this bearing has high load-carrying capacity and is designed to carry axial and radial loads simultaneously. Since a single bearing of this type can only carry axial loads in one direction, the bearings are usually mounted in pairs.

DCM can produce high quality TRB as the customer requests.We are happy to produce further construction methods. Please do not hesitate to contact us for special bearing characters.We can also supply OEM service.

Product Specification

Basic dimension Basic load rating Limiting Speeds Weight Caculation factor Bearing code
d D B C T rmin nmin Cr Cor Grease Oil Wt e Y Yo
mm mm mm mm mm mm mm kN kN r/min r/min kg
90 125 23 18 23 1.5 1.5 97 167 2600 3600 0.838 0.34 1.8 0.96 32918
140 32 24 32 2 1.5 153 265.5 2400 3200 1.718 0.42 1.4 0.78 32018
140 39 32.5 39 2 1.5 220 360 2400 3200 2.21 0.27 2.2 1.2 33018
160 30 26 32.5 2.5 2 188.6 267.2 2200 3000 2.473 0.42 1.4 0.79 30218
160 40 34 42.5 2.5 2 274 280 2200 3000 3.61 0.42 1.4 0.79 32218
190 43 36 46.5 4 3 335 410 1800 2600 5.76 0.35 1.7 0.96 30318
190 43 30 46.5 4 3 264 315 1800 2400 5.52 0.83 0.73 0.4 31318
190 64 53 67.5 4 3 450 590 2000 2600 8.6 0.35 1.7 0.96 32318


Application

  • Logistic Transport Facilities
  • Automation Technology
  • Machine Tools
  • Aerospace Industry
  • Mechanical Engineering
  • Industrial Robots
  • Textile Machinery
  • Automotive Industry
  • Construction Machinery
  • Electric Motors
  • Gearboxes
