Specifications
Brand Name :
DCM
Model Number :
Tapered Roller Bearings 33000 Series
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Vibration :
V1 V2
Type :
Roller
Structure :
Taper
Cage :
Steel Cage
Application :
Automotive
Description

ID 160 mm 32932 32032 30232 32232 30332 32332 V1 V2 P6 P6X P5

Features

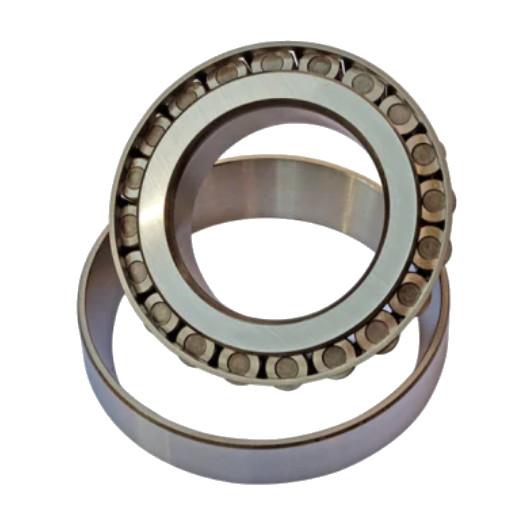

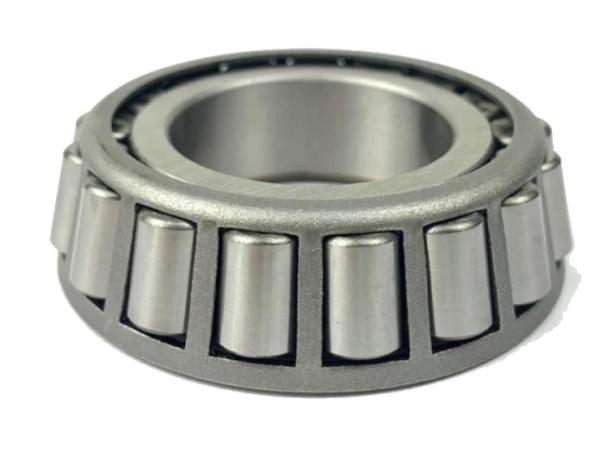

Tapered Roller Bearings are designed for using in a wide range of applications, including automotive, tractor, rolling mill, mining, metallurgical, plastic machinery,etc. This is a separable type of bearing. The inner ring (cone), along with the cage and rollers, is one assembly unit; the outer ring (cup) is the other assembly unit. This feature allows the bearings to be fitted separately and adjusted so that the optimum clearance or preload for each application is achieved.

Due to the inclined position of the tapered rollers, the contact lines between the rollers and raceways intersect at a common point on the axis of the bearing. The contact surfaces of the raceways and tapered rollers are modified to limit edge stresses. As a result of this modification and the large number of rollers, this bearing has high load-carrying capacity and is designed to carry axial and radial loads simultaneously. Since a single bearing of this type can only carry axial loads in one direction, the bearings are usually mounted in pairs.

DCM can produce high quality TRB as the customer requests.We are happy to produce further construction methods. Please do not hesitate to contact us for special bearing characters.We can also supply OEM service.

Product Specification

Basic dimension Basic load rating Limiting Speeds Weight Caculation factor Bearing code
d D B C T rmin nmin Cr Cor Grease Oil Wt e Y Yo
mm mm mm mm mm mm mm kN kN r/min r/min kg
160 220 38 30 38 2.5 2 262.8 525.4 1400 1900 4.3 0.35 1.7 0.95 32932
240 51 38 51 3 2.5 376 686 1300 1800 7.69 0.46 1.3 0.72 32032
290 48 40 52 4 3 511.8 738.8 1200 1600 13.7 0.44 1.4 0.76 30232
290 80 67 84 4 3 925 1490 1100 1600 23.3 0.44 1.4 0.76 32232
340 68 58 75 5 4 915 1180 1000 1500 29.5 0.35 1.7 0.96 30332
340 114 95 121 4 4 1210 1770 1000 1400 48.3 0.37 1.6 0.88 32332


Application

  • Logistic Transport Facilities
  • Automation Technology
  • Machine Tools
  • Aerospace Industry
  • Mechanical Engineering
  • Industrial Robots
  • Textile Machinery
  • Automotive Industry
  • Construction Machinery
  • Electric Motors
  • Gearboxes
