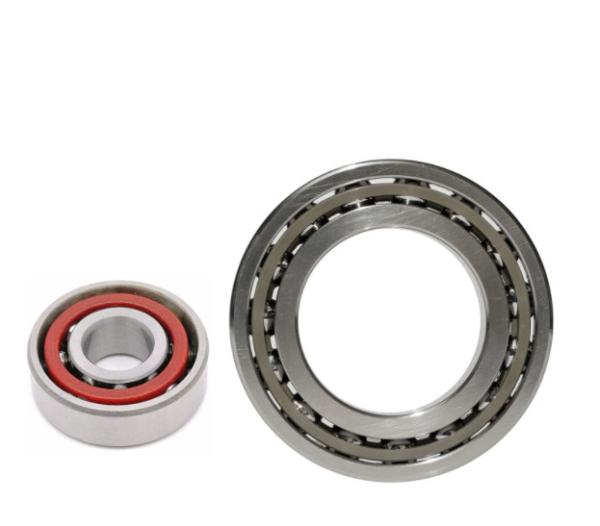

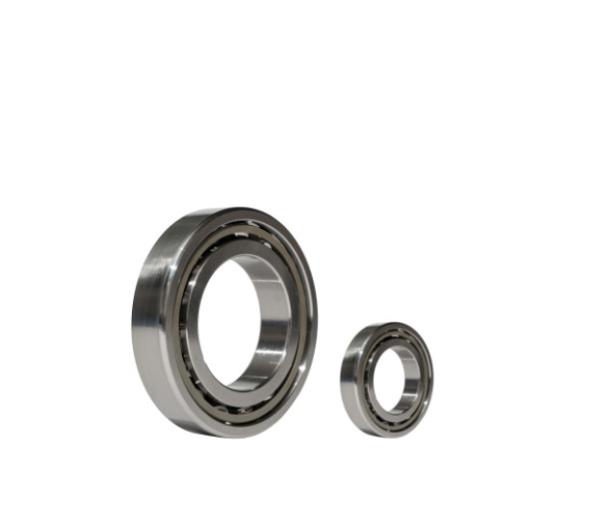

DCM Angular Contact Thrust Bearing C3 C4 Clearance ABEC-3 Precision ID 20mm
DCM Angular Contact Thrust Bearing C3 C4 Clearance ABEC-3 Precision ID 20mm
DCM Angular Contact Thrust Bearing C3 C4 Clearance ABEC-3 Precision ID 20mm
DCM Angular Contact Thrust Bearing C3 C4 Clearance ABEC-3 Precision ID 20mm
DCM Angular Contact Thrust Bearing C3 C4 Clearance ABEC-3 Precision ID 20mm
DCM Angular Contact Thrust Bearing C3 C4 Clearance ABEC-3 Precision ID 20mm
Specifications
Brand Name :
DCM
Model Number :
OPEN，-Z，-RS，-RZ，-RSR
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Clearance :
C0 C2 C3 C4 C5 C9
Vibration :
Z1 Z2 Z3 Z4 V1 V2 V3 V4
Number of row :
Single Row
Lubrication :
Grease or oil
Cage :
Steel Cage,Nylon,Brass
Feature :
Long Life,High Speed,low noise
Description

ID 20mm Angular Contact Ball Bearings P5 P4 P2 V1 V2 V3 V4 High Precision Low Noise Low Vibration High Speed Long Life

Features

Angular contact ball bearings are the structural variants of deep groove ball bearings, and mainly bear combined radial and axial loads. They are divided into C, AC, and B structures according to the magnitude of the axial load. It is characterized by small friction coefficient, high limit speed, and the high manufacturing accuracy, and is widely used in various precision machineries.

To bear predominate radial load and subsidiary axial load from both directions, lower cost and price, low running resistance, high limiting speed, possible to reach higher rotating precision and pretty low vibration level, in addition, possible to make into sealing structure.

Product Specification

DCM Angular Contact Thrust Bearing C3 C4 Clearance ABEC-3 Precision ID 20mm

d D B r r1 Cr Cor Grease Oil Wt da min Da max ra max New code
mm mm mm min min kN kN r/min r/min kg mm mm mm
20 42 12 0.6 0.3 10.5 6.02 23000 32000 0.067 25 37 0.6 7004C
42 12 0.6 0.3 10 5.77 20000 28000 0.067 25 37 0.6 7004AC
42 12 0.6 0.3 8.85 5.11 15000 18000 0.077 25 37 0.6 7004B
47 14 1 0.3 14.6 8.2 21000 30000 0.1 25 42 1 7204C
47 14 1 0.3 14 7.88 14000 17000 0.1 25 42 1 7204AC
47 14 1 0.6 12.5 7.03 13000 15000 0.117 25 42 1 7204B
52 15 1.1 0.6 18.5 9.99 20000 28000 0.141 26 46 1 7304C
52 15 1.1 0.6 17.9 9.65 13000 16000 0.141 26 46 1 7304AC
52 15 1.1 0.6 16.2 8.72 12000 14000 0.163 26 46 1 7304B


Application

Electric motors

machine tools

automobiles

precise devices

home ppliances

chemical machineries

general machineries

agricultural machineries
