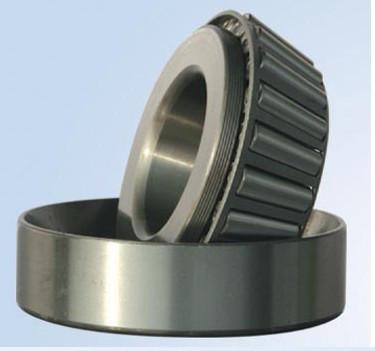

Cheap Tapered Roller Bearing 15101/15250 Bearing
Cheap Tapered Roller Bearing 15101/15250 Bearing
Specifications
Place of Origin :
China
Brand Name :
QRZ
Certification :
full
Model Number :
15101/15250
Precision Rating :
po,p6
Seals Type :
open
Number of Row :
Single Row
MOQ :
100 pieces
Price :
FOB,CIF
Packaging Details :
industrial packing or single color box
Delivery Time :
within 30 working days
Payment Terms :
T/T,L/C
Supply Ability :
10000 pieces per month
Description
Series 15000
Cone Part Number 15101
Cup Part Number 15250
Design Units Imperial
Bearing Weight 0.7000 lb
0.3000 Kg
Cage Type Stamped Steel
D - Cup Outer Diameter 2.5000 in
63.500 mm
d - Cone Bore 1.0000 in
25.400 mm
B - Cone Width 0.8125 in
20.638 mm
C - Cup Width 0.6250 in
15.875 mm
T - Bearing Width 0.8125 in
20.638 mm
Z - Number of Rollers Per Row 15
R - Cone Backface "To Clear" Radius1 0.030 in
0.760 mm
r - Cup Backface "To Clear" Radius2 0.050 in
1.27 mm
da - Cone Frontface Backing Diameter 1.24 in
31.50 mm
db - Cone Backface Backing Diameter 1.28 in
32.51 mm
Da - Cup Frontface Backing Diameter 2.34 in
59.44 mm
Db - Cup Backface Backing Diameter 2.20 in
55.88 mm
Ab - Cage-Cone Frontface Clearance 0.04 in
1.02 mm
Aa - Cage-Cone Backface Clearance 0.05 in
1.27 mm
a - Effective Center Location3 -0.23 in
-5.80 mm
C90 - Dynamic Radial Rating (90 million revolutions)1 3490 lbf
15500 N
C1 - Dynamic Radial Rating (1 million revolutions)2 13500 lbf
59900 N
C0 - Static Radial Rating 12100 lbf
53900 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)3 2090 lbf
9310 N
K - Factor1 1.67
e - ISO Factor2 0.35
Y - ISO Factor3 1.71
G1 - Heat Generation Factor (Roller-Raceway) 14.6
G2 - Heat Generation Factor (Rib-Roller End) 7.58
