Specifications
Description

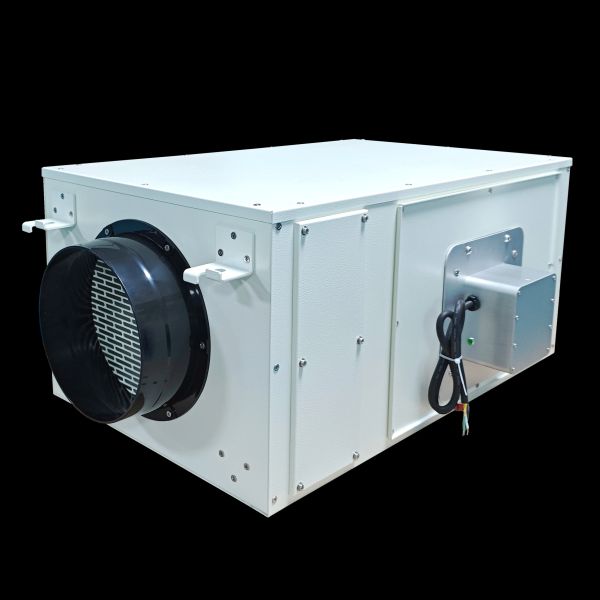

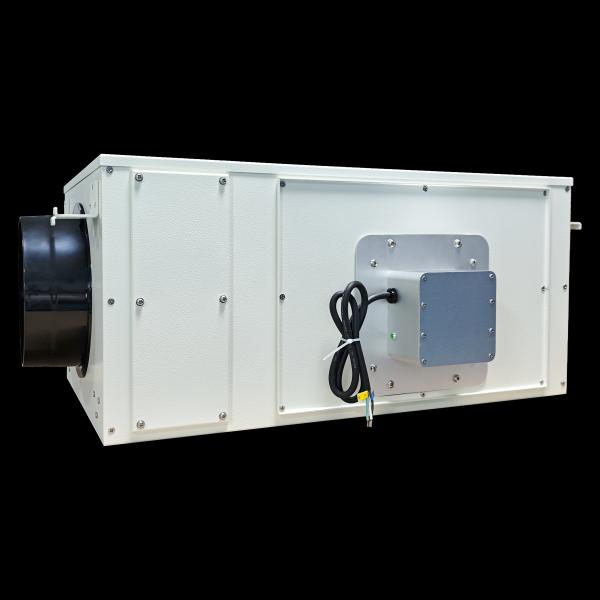

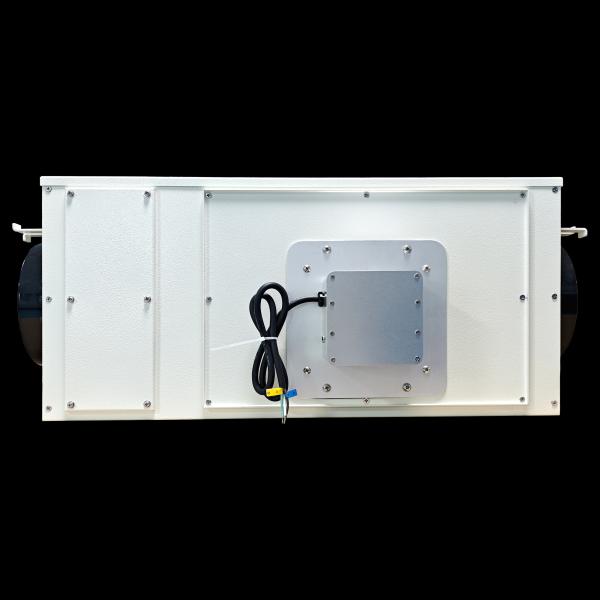

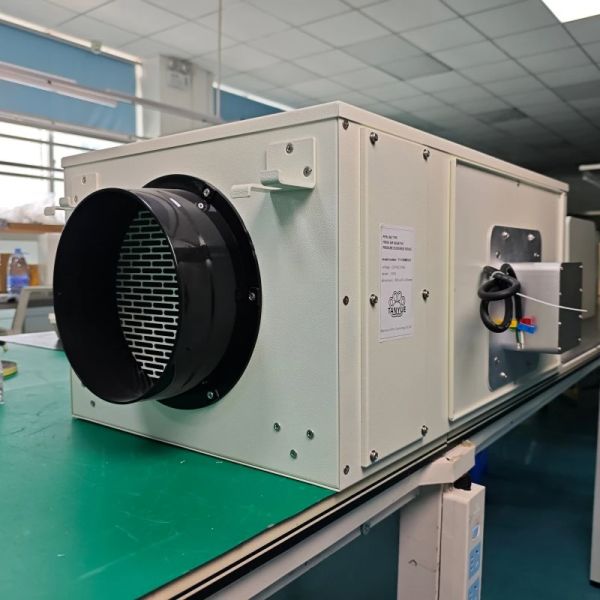

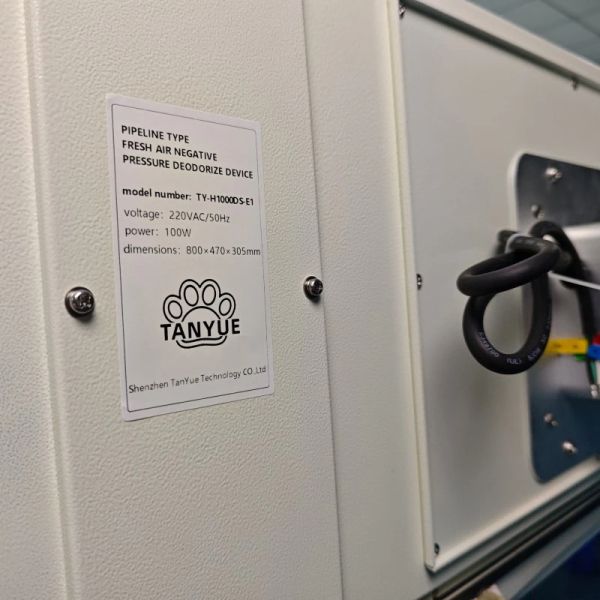

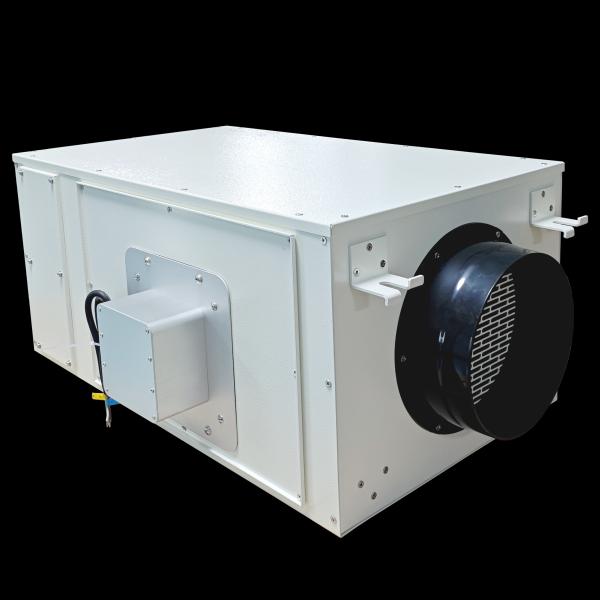

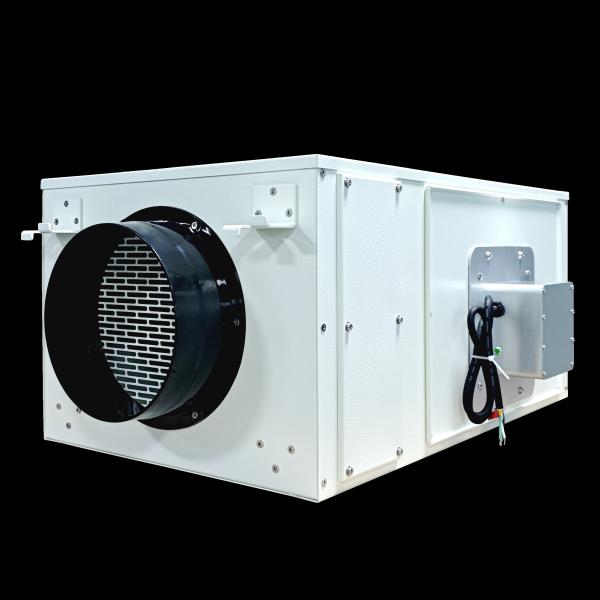

TY-H1000DS-E1 Ducted fresh air negative pressure deodorization and sterilization device.

Deodorization and Sterilization: Employs an active, consumable-free purification principle.

Rapid Purification: The ultra-high-order photo-water ion technology's sterilization/odor control purification efficiency is 200 times that of ozone alone and 3000 times that of ultraviolet light alone. Active Purification: Purifying factors actively disperse into the air, actively decomposing indoor pollutants and comprehensively purifying the air.

Safe Purification: The generated purifying factors are completely reduced to natural substances, with no secondary pollution.

Zero Harm to Humans: The purifying factors have no impact on the human body and can be continuously turned on, ensuring the overall environment remains clean. Industry-Leading Core: Utilizes nano-ceramic catalyst technology, increasing effective reaction efficiency by hundreds of times. The E1 uses low-frequency, stepless, wide-spectrum ultraviolet drive technology, operating at a wide voltage range of 185V-255V. The low-frequency operating frequency is 230Hz, ensuring safety and eliminating flicker effects. It has a wide starting temperature range, operating normally even at -25 degrees Celsius. Safe, reliable, and environmentally friendly, truly achieving maintenance-free and replacement-free operation. Service life exceeding 30,000 hours; aesthetically pleasing installation: The device is concealed in the ceiling, not affecting the interior decoration. The ceiling-embedded spray nozzles ensure effective airflow while maintaining a beautiful and sophisticated appearance.

Flexible installation: Installation methods can be flexibly selected according to specific site conditions: installation at the air outlet of the total heat exchange fresh air unit, installation in negative pressure exhaust mode, installation in fresh air deodorization mode, etc.

model

Proactive Odor Control System

TY-H1000DS-E1

Parameters and specifications

noise

≤42dB

Ammonia removal efficiency

≥95%

Other odor removal rate

≥95%

Sterilization rate

≥99.9%

Rated voltage

220VAC/50Hz

Rated power

100W

net weight

18kg

Dimensions

800*470*305mm

Material

Stainless steel

Installation

Wall mounting
