Hydraulic Ramps 60 Tons Low Bed Semi Trailer , Air Suspension Low Flatbed Trailer
Hydraulic Ramps 60 Tons Low Bed Semi Trailer , Air Suspension Low Flatbed Trailer
Specifications
Brand Name :
FUDENG
Model Number :
Low Bed Trailer For Heavy Machinery
Certification :
CE
Place of Origin :
Shandong Province In China
MOQ :
One Set
Price :
USD$16,000 Per Unit
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800 Set Per Month
Delivery Time :
15-20 Work Days
Packaging Details :
Nude or Wax
Product Name :
Low Bed Trailer
Suspension :
Mechanical Suspension Air Suspension
King pin :
2(50mm) or 3.5(90mm)
Leaf Spring :
90mm*16mm*10Layer
Tire :
11.00R20 12R22.5 315/80R22.5 385/65R22.5
Axles Brand :
FUWA/BPW/L1/FD
Landing Gear :
Jost Brand
Description

Hydraulic Ramps Lowboy Trailer 60 Tons Low Loarder Trailer For Sale

1. The Ramps type have Mechanical Ramps/Hydraulic Ramps/Hydraulic Folding Ramps ;

2. The Standard dimension is 13m*3m*1.75m ,or can be customized ;

3. Hydraulc Folding Ramps can operate by itself ;

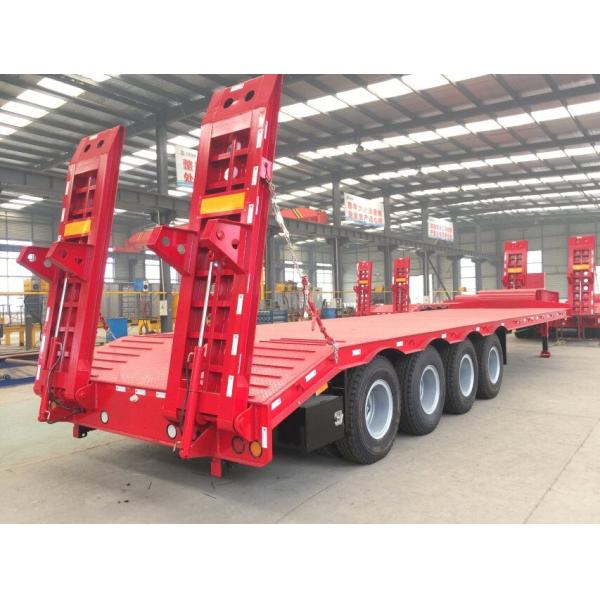

Hydraulic Ramps 4 Axles 80 Tons lowboy trailer for heavy machinery

Hydraulic Ramps 60 Tons Low Bed Semi Trailer , Air Suspension Low Flatbed Trailer

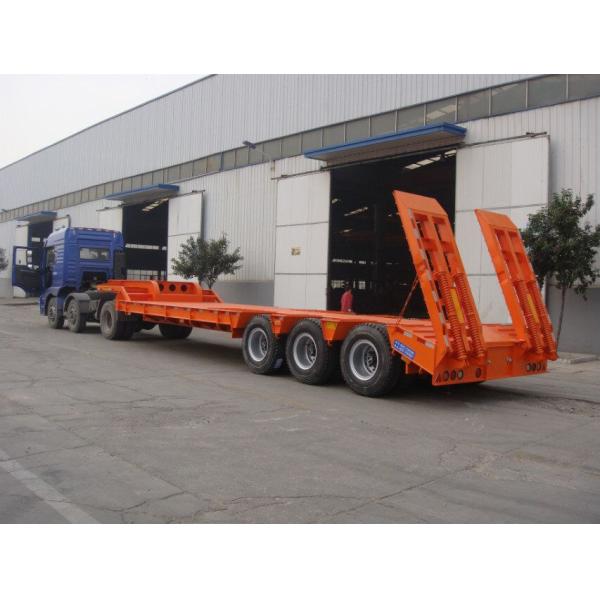

3 Axles 60 tons low bed semi trailer ,the dimension can be Customized ;


Hydraulic Ramps 60 Tons Low Bed Semi Trailer , Air Suspension Low Flatbed Trailer


Low Bed Configurations As Follows:

Specification
Body
Dimension 13000×3000×1750mm
The rated load 60-80T
Bottom Platform 4 mm Checkered Thickness
Main beam Welding design “I” 260mm side beam , Main beam height 500mm
Frame beam Top Flange 20mm; Bottom Flange 25mm, Middle Flange 12mm;
Ramp Mechanical ladder
Chassis
Axle 3 axles
Landing Gear 28T lifting capacity with two speed Jost brand
King Pin 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension
Leaf spring 90mm(W)*16mm(T)*10 Layer


Details Show :

1. We can according to your transport Euipment to design the Width .increase the Width for you ;

2. The Mechanical Ladder with Strength Support ;

3. In order to Adapt the road condition ,Provide the Mechanical Suspension and thicken leaf spring for you ;

4. European Stanard LED Light ;

The Relate products include Flatbed semi trailer / Skeletons trailer / side wall semi trailer / Fence cargo semi trailer and so on .

Welcome to leave your messages for Low bed trailer and Relate products .


Welcome your inquiry !
