Specifications
Brand Name :
Fudeng Brand
Model Number :
Fence cargo semi trailer
Certification :
CE,ISO,CCC
Place of Origin :
Shandong,China
MOQ :
One set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800Units per month
Delivery Time :
25-30 work days after deposit
Packaging Details :
Nude or Wax
Product Name :
Fence cargo semi trailer
dimension :
12.5m*2.5m*3.2m or Customized
Material :
Q345B Carbon steel
Axles :
FUWA/BPW/L1/FD
Tires :
11.00r20 12r22.5 315/80r22.5 385/65r22.5
Suspension :
Mechanical Suspension or Air Suspension
Leaf Spring :
90mm*16mm*10Layer
King pin :
2.0 or 3.5 inch
Transport :
Bulk cargo or Livestock
Color :
Red ,White,Blue,Green or Customers optional
Description

12.5M 3 Axles Dropside Trailer For Livestock Transport Fence Cargo Semi Trailer

FUDENG Brand Semi trailer is popular in Africa , Our factory have rich Experience for semi trailer ,We use high quality material to design , the

Specifications and other details can be design for Customers for free , We can provide design drawing ,let clients confirm it , and if there have

any questions for Specifications ,We can changed it accord with clients request ,and our trailer's design can ensure it can carry heavy capacity

Goods , and also can ensure the safety during transport ;

1.Standard dimension is 12.5 Meters length , also can Extendable the length accord with your transport goods ;

2.We can provide all kinds of Axles Brand ,Like FUWA/BPW/L1/FD ,all can be choose by yourself ;

3.If you carry Bulk cargo ,side wall trailer is enough for you ;if you transport livestock ,We can increase the fence height for you ;

4.Usually , 3 Axles fence cargo trailer carry 30-50 tons no problem , Even 70tons ;

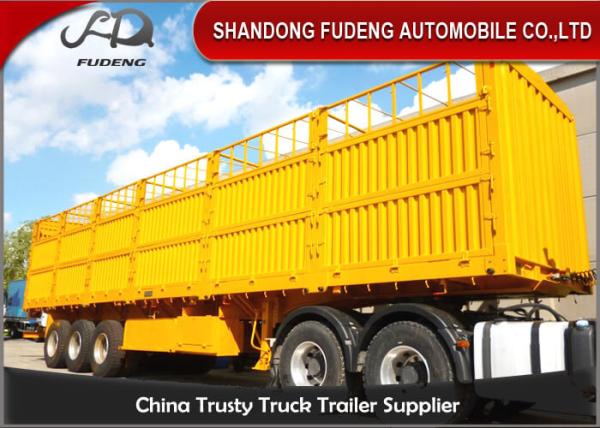

3 Axles Fence cargo semi trailer with Double fence , and 600mm side wall .

Livestock Transport 12.5M 3 Axles Dropside Trailer

Specifications for Fence cargo trailer

Specifications
Dimension 12.6m×2.6m×3.2m
Payload 30-50T
Fence height Side wall height 0.9m basket space 0.8m
Tare weight About 8.5T
Twistlock 12 units
Chassis
Main beam Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Frame Beam

Top Flange 14mm,width 140mm; Middle

Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 500mm

Frame Floor The Thickness is 3mm pattern
Edge beam 16# Channel
Through beam 10#Channel
Along beam 6#Channelx6
Axle 3 pcs 14 tons
Landing Gear 28T lifting capacity with two speed Jost brand
King Pin 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension
Leaf Spring 90mm(W)*16mm(T)*10 Layer

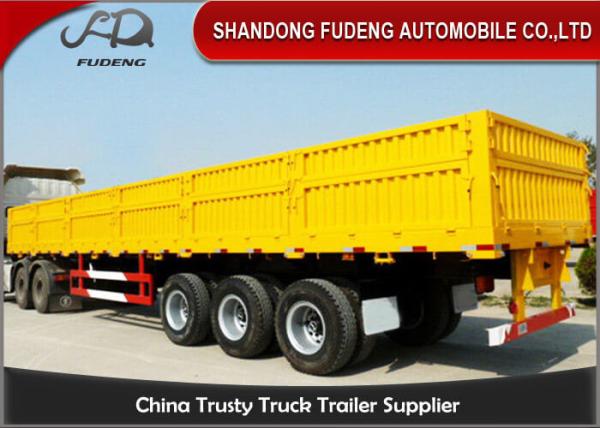

12.5Meters ,900mm side wall with Double Fence Dropside trailer

Livestock Transport 12.5M 3 Axles Dropside Trailer

FAQ

1.Q:Can I visit your factory ?

A:Yes , of course ,Welcome to visit our factory anytime ,We can pick you up at Airport ,and take you visit our factory ;

2.Q:Do you have Branch or agent in Nigeria ?

A:We have no Branch and agent in Nigeria,But we Exported a lot of semi trailer and Sinotruck to Nigeria , We have many Customers in Nigeria ;

3.Q:How long for production ?

A:When we received deposit about 15-20 Working days .If you are in a hurry , We can urgent production for you ;

Our Service

1.Our Fence cargo trailer can be Customized ,We can according to clients requirement to design ;

2.Before production ,We can send the draeing to you to confirm it ;

3.If you place an order from us ,We can send some Spare parts to you for free ;

4.Welcome to visit our factory anytime ! We can pick you up at Airport ;
