Specifications
Brand Name :
Fudeng
Model Number :
SDFD1704 fence semi trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
One set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Material :
Carbon Steel Material
Usage :
Transport bulk cargo or container
Landing Gear :
Jost Brand with two Speed
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
30-60 ton available
Axle :
2 or 3 or 4
King pin :
2.0 or 3.5 inch
Description

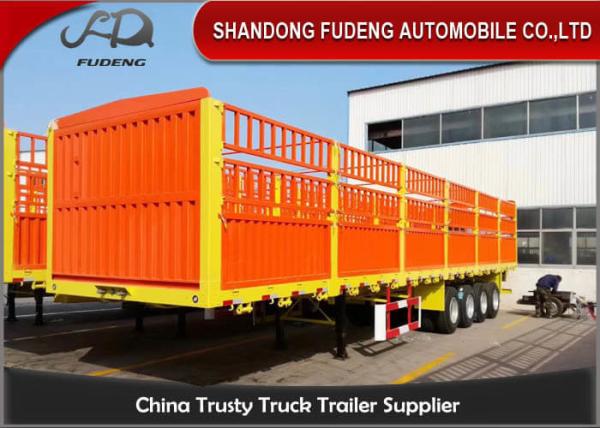

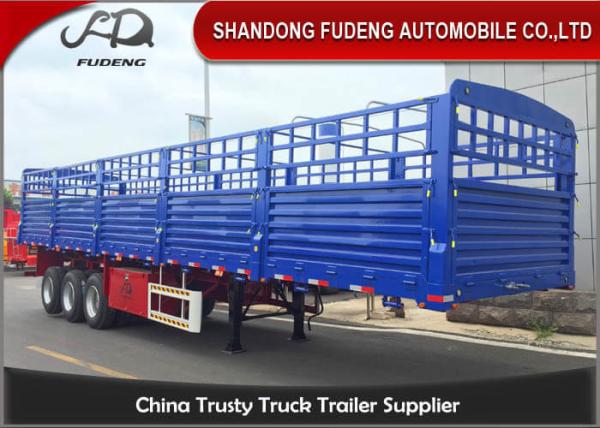

3 Axles 60 Tons Fence Cargo Trailer Carry Livestock Side Wall trailer For Sale

1. The fence and side wall can be moved and use it as flatbed trailer to carry container ;

2.he Fence can design double fence and carry cattle ;

3. We can provide FUWA/BPW/L1/FD Brand Axles for you ,You can choose by yourself;

4. Standard Specifications dimension is 12.5m * 2.5m*3.2m , The dimension Can be Customized;

Fence Height and Side wall height can be adjust by yourself ,can carry livestock or sand or other bulk Goods ;

The fence can design double ,side wall also can design double , and If you carry bulk cargo ,I can recommend side wall trailer for you ,Side wall

trailer can adjust height for you ;

3 Axles Fence cargo trailer can addition the upright for you on the top , can avoid to the goods drop during the

transport ;

Carbon Steel 3 Axles Livestock 60T Side Wall Trailer

Configurations For Fence Cargo Semi Trailer

Specifications
Dimension 12.5m×2.5m×3.2m (Outside)
Payload 30T-60T
Tare weight About 8.5T
Fence 600mm-1800mm customized
Chassis
Frame Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor The Thickness is 3-8 mm flat bed
Axle 2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear JOST (D200T)or CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type/air suspension
Leaf Spring 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS Optional
Accessories One standard tool box
Voltage 24V
Packing and shipping
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO/40HQ container

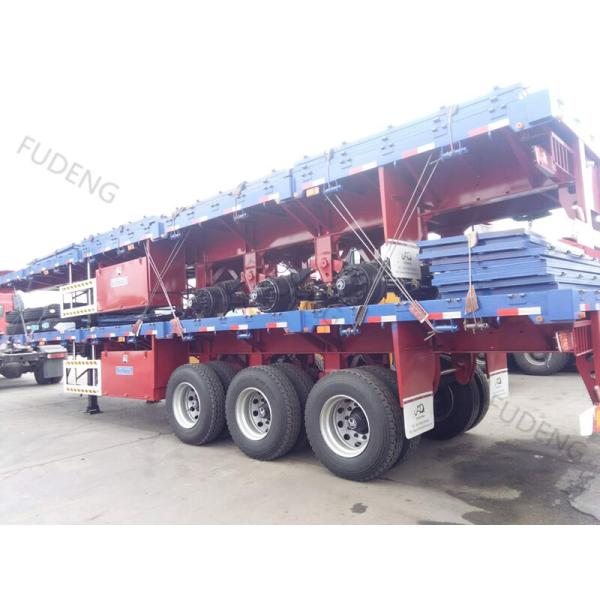

3 Axles Fence cargo trailer Shipping by Bulk cargo ,Two units can Stack together , and detachable the fence and side

wall can save the sea frieight for you .under the picture ,We use thicken Mechanical Suspension for you and We can

choose the Strong Axles for you ;

Carbon Steel 3 Axles Livestock 60T Side Wall Trailer

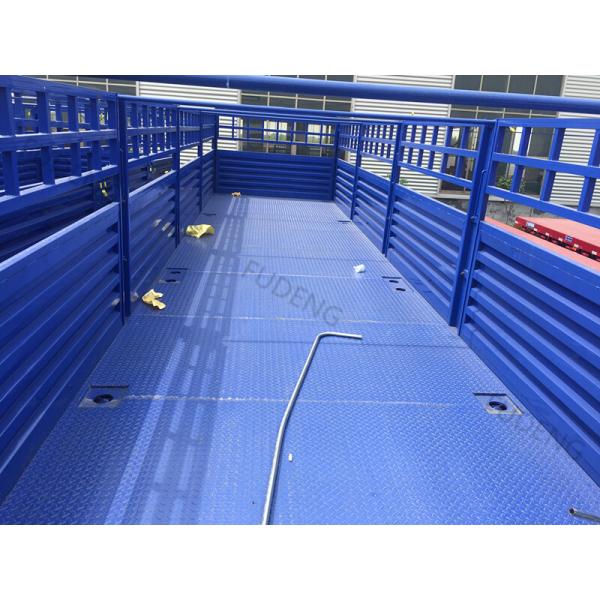

Details For Fence Cargo Semi Trailer

1. Rear Light we use European Standard LED Light with protective cover ;

2. So as to adapt your road condition we can design thicken Mechanical Suspension for you ;

3. We can according to your transport tonnage to design the bottom thickness for you;

4. If you want to transport container ,you can moved the side wall and fence , can transport 40ft 20ft container as well ;

5.The Fence cargo trailer can carry cattle ;

Our factory founded in 1992 with more than 20 years' experience. Being famous in domestic and foreign countries, we concentrate on trailer

and truck's research and development. Our aim is to provide high quality and low price products for the customer. Experienced and

technological team customize the best productions for customers. For any reliability& safety and economic related questions, we all have

mature solutions at any time.We will show customers around the factory and let them choose the products they are interested in.

If you are interested in our products, welcome to visit our factory.
