30 Ton - 60 Ton -100 Tons Customized Lowboy Semi Trailers / Drop Bed Low Loader Trailer
30 Ton - 60 Ton -100 Tons Customized Lowboy Semi Trailers / Drop Bed Low Loader Trailer
30 Ton - 60 Ton -100 Tons Customized Lowboy Semi Trailers / Drop Bed Low Loader Trailer
30 Ton - 60 Ton -100 Tons Customized Lowboy Semi Trailers / Drop Bed Low Loader Trailer
Specifications
Brand Name :
FUDENG Brand Low bed trailer
Model Number :
Lowbed truck
Certification :
CE , ISO,ADR/DOT
Place of Origin :
Shandong China(Mainland)
MOQ :
One Unit Lowboy trailers
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units Per Month
Delivery Time :
15 work days after deposit
Packaging Details :
Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
Axles :
Fuwa/BPW/Chinese brand
Suspension :
Mechanical suspension and Air suspension
Load capacity :
60-80Tons
Color :
Customized
Size :
13mx3mx1.5m Or Customized
King Pin :
2.5Inch Or 3.5Inch
Landing Gear :
JOST Brand 28 Tons Standard
Material :
Q345B carbon steel
Description

Manufacturer supply 30 ton - 60 ton -100 tons customized lowboy lowbed trailer / low loader bed platform semi trailers

Low Bed Trailer which is knows also low loader and can carry heavy loads , excavators , construction machines, transformer,

generator , cranes , caravans , army tanks and different kind of big machines. Lowbed Semi Trailers can be produced between 2

axles to 8 axles and loading capacity starting from 20 Tons to 180 Tons , rear or front loading Lowbed Trailers and platform as

customer demand with different kind of specification according to demand.

Low Bed Trailers Features:

1) Reinforced main beam and side beam to ensure high loading.


2) Adopting best brand FUWA/BPW/Chinese Brand axle, Triangle tyres


3) Optional working platform to fit your machines.


4) Running in a off road and bad road.

LOW BED TRAILER Specification:

DIMENSIONS
Tare Weight 7800kg
Payload 32200kg
Total Weight 40000kg
Dimension 13000*2495*1750mm Or customized
Body 10830*2300*600
Wheel Track 1840/1840/1840mm
Wheelbase 5700mm+1310mm+1310 mm
Axle Weight 24000(three axle combined)
STANDARD SPECIFICATION
Main Frame

Heavy duty and extra durability designed;Opting for high tensile steel Q345B

welded by automatic Submerged-Arc processes 480mm Height I beam.

Top Flange 16mm,width 140mm;Middle Flange 8mm;Bottom Flange 16mm,width

140mm
Floor Steel Sheet 3mm thickness
Axle Three Units of FUWA(brand) 13Ton axle
Suspension A Couple of FUWA(brand) mechanical Tri-axle suspension
Leaf Spring /8/8/8,-/10/10/10
King Pin One unit of 2 SAE standard welded kingpin
Landing Gear Two-speed,manual operation,heavy duty landing gear
Wheel Rim Twelve units of 8.25R22.5 rim
Tyre Twelve units of 11.00-2012PR 11.00R2012PR 12R22.512PR tubeless tyre
Twist Lock

Twelve nos in total-four nos are fasten mode,four nos are up/down mode,of ISO

standard twist lock for 2×20ft;1×40ft container,the central locks can be laid down.
Spare Wheel Carrier One set of spare wheel carrier including a riser.
Pneumatic Braking System

A system with emergency brake and parking brake;

Dual line-air brake, piggy back spring on all axles;

Two unit of WABCO RE 6 relay valve;Four units of T30/30 spring brake chamber;

Two units of T30 brake chamber,Two unit of 40L air tank;Two units of standard

copper air-connector.
Electrical System

One unit of JAEGER POWAY,24V 7-pin ISO 1185 standard socket;Tail lamp with turn signal,brake light & reflector,

Side lamp etc.One set of 6-core standard Cable.
Painting

Sand blasting processing on rust–proof protection

One coat of anticorrosive primer

two coats of finish urethane paint

Color as customer choice
Accessory One box with a set of standard trailer tool

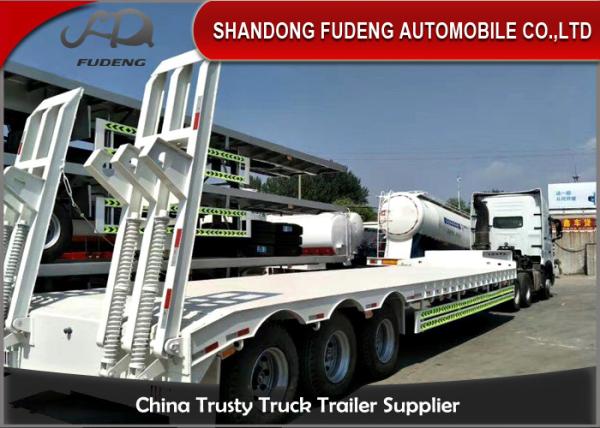

Tri-Axles low bed semi trailers.

30 Ton - 60 Ton -100 Tons Customized Lowboy Semi Trailers / Drop Bed Low Loader Trailer

3 Axles 50Tons Low bed semi trailers

30 Ton - 60 Ton -100 Tons Customized Lowboy Semi Trailers / Drop Bed Low Loader Trailer

Lowbed trailers details:

The low boy semi trailer we use high-Strength Steel design .The welding Technolgy is Good .

30 Ton - 60 Ton -100 Tons Customized Lowboy Semi Trailers / Drop Bed Low Loader Trailer

Welcome to visit our factory.
