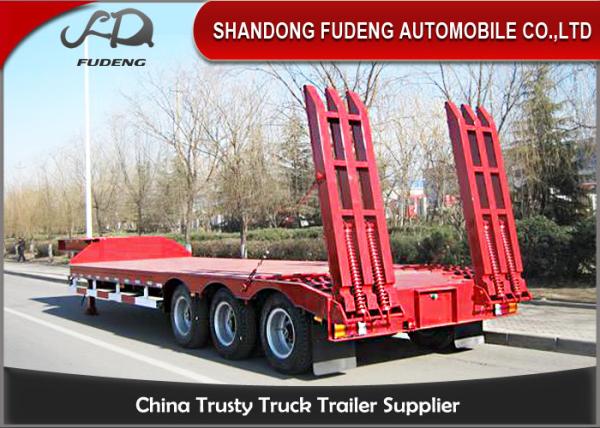

Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer
Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer
Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer
Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer
Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer
Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer
Specifications
Brand Name :
FUDENG Brand Low bed trailer
Model Number :
SDFDZH040840
Certification :
ISO , SGS , CE , CCC
Place of Origin :
Shandong China(Mainland)
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
900 Units Per Month
Delivery Time :
20 - 30 work work days after deposit
Packaging Details :
By Bulk Cargo Ship, Ro-ro Ship
Max Payload :
80ton
Axle :
3 / 4 axle , BPW or FUWA
Landing gear :
28ton
Material :
High strength steel
Suspension :
Air or Mechanical
Ladder :
Hydraulic / Mechanical
Condition :
New
Kingpin :
2.0'' or 3.5'' , JOST
Price :
negotiation
Description

Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer

The loader with spring can easily lift up and lay down . Just one person can deal with ladder. It's much convient for the transporting work . And for this ladder is welding together by the high strength steel , it' much stronger than the normal type which will make sure the safety of the loading .

The high strength steel made main beam will make sure of the safety of the transport also both the semi trailer together with the machine wich will be transported .

Specification

Specification
Body
Dimension 13.5m×3.0mx1.6m
Payload 80T
Tare weight About 10T
Bottom Platform 4 mm Checkered Thickness

Main beam

 Welding design I beam, connected by bolts and nuts, Q345B carbon steel material. Upper plate is 18mm,lower plate is 20mm, middle plate is 10mm. height of main beam is 500 mm
Side beam Welding design I beam. Height is 200mm.
Through beam 14# Channel
Ladder Mechanical
Suspension Air Suspension
Chassis
Axle 3 axles, 13 T
Landing Gear 28T Linkage style
King Pin 2.00 or 3.5 inch bolt-in king pin
Pneumatic Braking System 6 big air chamber, 3 axles synchronization valve
Rim 8.5-20*12pcs
Tyre 12.00R22.5 or 11.00R20*12pcs
Accessories One standard tool box
Spare tire rack One
Voltage 24V
Packing and shipping
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO

For the transportation of this low loader transport trailer , we have verious options . For examply , the normal transportation type is the bulk cargo or RORO which will be beter for the sea transport , but it will be much higher.

If the customer accept , we can cut the head of the trailers and then charge it into the flat rack . Also we can arrage another type of the low bed trailer to char into the container , which means that the lowbed trailer will be a little smaller but we can promise that the trailer is in a good condition and use normally .

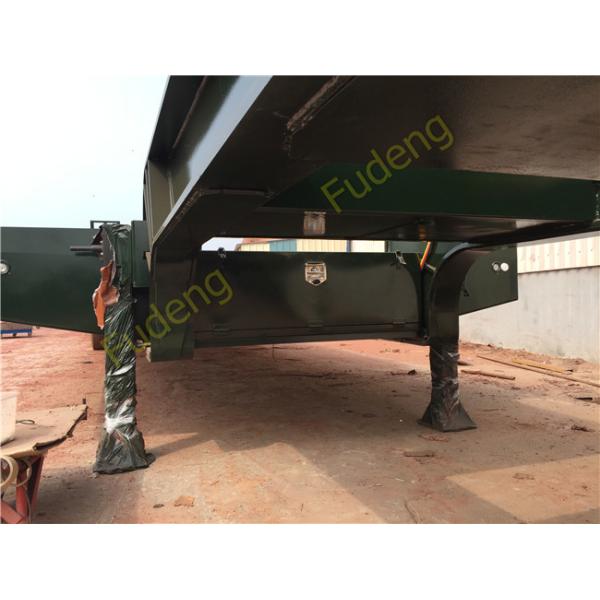

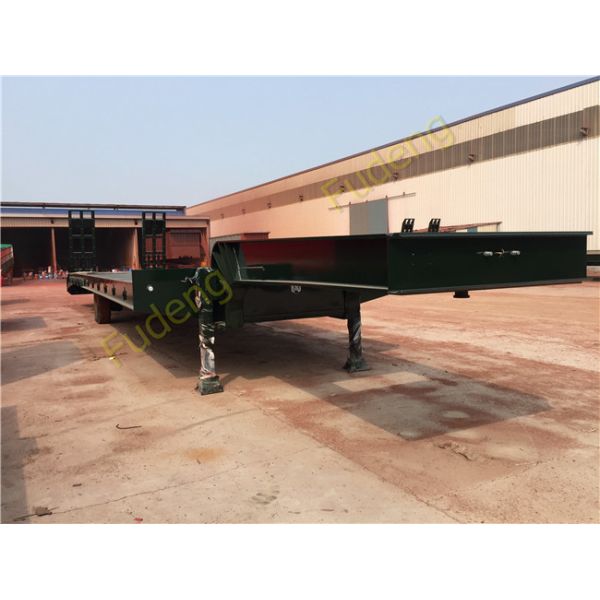

Details - - 4 axle 80 ton low bed semi trailer

Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer

Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer

Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer

Details - - 3 axle 80 ton low bed semi trailer

Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer

Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer
