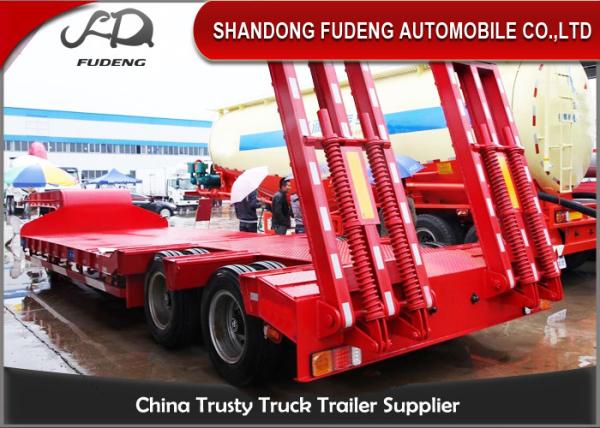

2 / 3 Axle Low Bed Semi Trailer 30 - 90 Tons Heavy Duty Machine Transportation
2 / 3 Axle Low Bed Semi Trailer 30 - 90 Tons Heavy Duty Machine Transportation
2 / 3 Axle Low Bed Semi Trailer 30 - 90 Tons Heavy Duty Machine Transportation
2 / 3 Axle Low Bed Semi Trailer 30 - 90 Tons Heavy Duty Machine Transportation
Specifications
Brand Name :
FUDENG Brand Low bed trailer
Model Number :
SDFDZH040830
Certification :
SGS, BV etc.
Place of Origin :
Shandong China(Mainland)
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
900 Units Per Month
Delivery Time :
20 - 30 work work days after deposit
Packaging Details :
By Bulk Cargo Ship, Ro-ro Ship
Max Payload :
30- 90TON
Type :
Semi trailer
Landing gear :
JOST 28ton
Material :
High strength steel
Suspension :
Air or Mechanical
Tire :
12R22.5
Floor :
5 mm checked steel
Kingpin :
2.0'' or 3.5''
Price :
negotiation
Description

2 axle or 3 axle low bed platform trailer for 30 - 90ton heavy duty machine transportation

The low bed trailers comes with the loading capacity from 30 tons to 90 tons. The loading capacity is different because of the model of the axles . The axles that we used for the 3 axles low bed platform trailers is verious from 13 ton to 25 ton . The axles that we used is bigger, loading capacity of the trailers will bigger .

The details of this lowbed trailer there are some different designed from the others. The floor of this 2 or 3 axles lowbed traileris 5 mm checked steel different from those the others. The 5mm check steel is special designed for the heavy duty machine loading and discharging . With the thichness of 5 mm, this lowbed trailer will be much stronger.

Specification

Specifications
Body
Dimension Optional
Payload 30T-90T
Tare weight About 11T
Bottom Platform 5 mm Checkered Thickness

Main beam

 Welding design I beam, connected by bolts and nuts, Q345B carbon steel material. Upper and lower plate is 20mm, middle plate is 10mm. height is 500 mm
Side beam Welding design I beam. Height is 300mm.
Through beam 14# Channel
Ladder Mechanical
Suspension Mechanical
Chassis
Axle 2 or 3 axles
Landing Gear JOST 28T Linkage style
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Leaf Spring 90mm(W)*16mm(T)*10 Layer
Pneumatic Braking System 6 big air chamber, 3 axles synchronization valve (WABCO brand)
Rim 8.5-20*12pcs
Tire 12R22.5*12pcs
Accessories One standard tool box
Spare tire rack one
Voltage 24V
Packing and shipping
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO

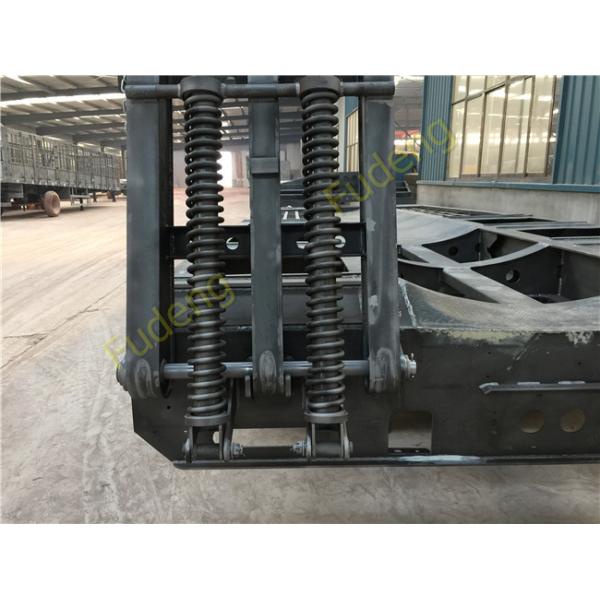

The design for the spring ladder. The strengthen type of ladder will be the powerful assurance for the machine loading .

2 / 3 Axle Low Bed Semi Trailer 30 - 90 Tons Heavy Duty Machine Transportation

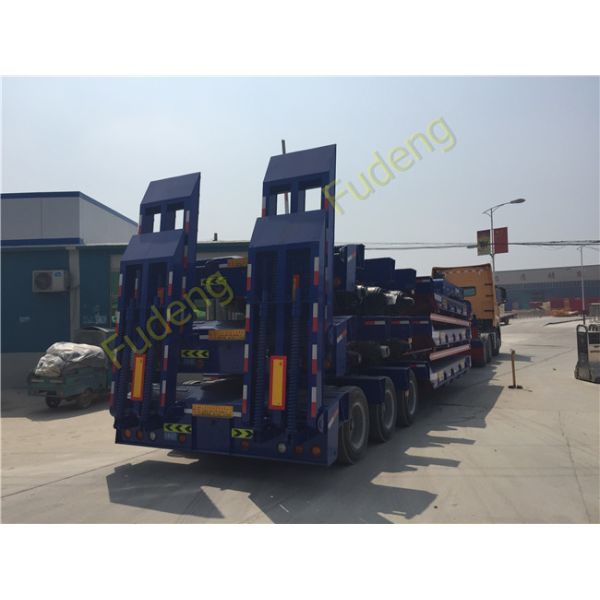

3 axles low bed trailers

2 / 3 Axle Low Bed Semi Trailer 30 - 90 Tons Heavy Duty Machine Transportation

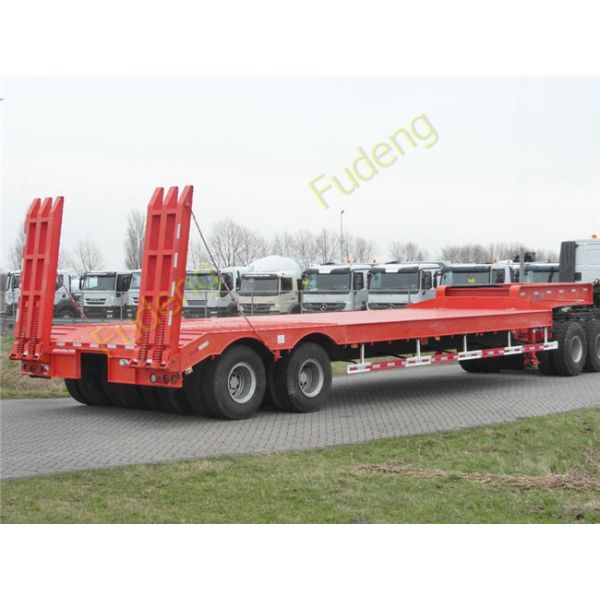

2 axles low bed trailers

2 / 3 Axle Low Bed Semi Trailer 30 - 90 Tons Heavy Duty Machine Transportation

Manufacturer direct sale , quality guaranteed, low price.
Except standard products we can also produce products base on customers' requirement.

Welcome to visit our factory!
