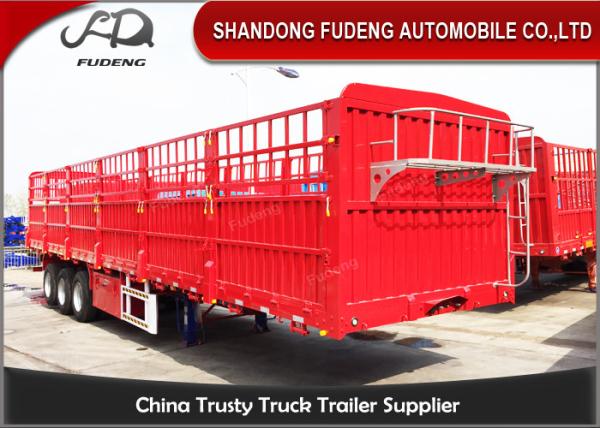

Cattle transport trailer / side wall semi trailer / animal delivery trailers
Cattle transport trailer / side wall semi trailer / animal delivery trailers
Cattle transport trailer / side wall semi trailer / animal delivery trailers
Cattle transport trailer / side wall semi trailer / animal delivery trailers
Specifications
Brand Name :
Fudeng
Model Number :
FDZH330411
Certification :
CE , CCC , ISO9001 , etc .
Place of Origin :
Shandong,China
MOQ :
1 set
Payment Terms :
L/C, T/T,, Western Union
Supply Ability :
80 sets cattle semi trailer per week
Delivery Time :
20-30 work days after 30% deposit
Packaging Details :
Nude packing. Bulk cargo or RORO shipping
Axle :
BPW or FUWA brand
King pin :
50# or 90#
Size :
Buyer's Request
Landing Gear :
28ton
Brake System :
WABCO
Keywords :
Cattle trailer
LOGO :
As your request
Warranty :
2 year
Price :
negotiation
Description

Cattle transport trailer / side wall semi trailer / animal delivery trailers

According your needs,wo can choose BPW axle or FUWA axle,air suspension or leaf spring suspension.We adopt 6 big double air chamber.

We have our own spare parts departments,have strong production and distribution capability.We can satisfy your demand within 2-7days.

Specification

3 axle Cattle semi trailer
General
Overall dimension(MM) 13000*2500*3600(mm)
Function Transport cargo like animal, vegetable
Loading weight (KG) 40,000
Tare weight(KG) 7000
Wheel base(MM) 8580+1310+1310
Running gear
Axle brand FUWA 13T axle
Axle number Three
Suspension system Leaf spring suspension
Leaf spring 10/10/10
Tire type and quantity 11R22.5 12pcs
Brake system Dual line system
Brake air chamber Six big double air chamber
Under Frame
Main beam(MM) height:500; upper plate: 14; down plate: 16; middle plate: 8;
Thickness Bottom:3mm; side:1.5mm
King pin 50mm(2'') or 90mm(3.5'')
Landing gear 28T standard
Appedix tool box (1.4-1.6)m*0.5m*0.5m with One set
spare wheel bracket Two
Electrical& others
Elecitric system 1.Voltage: 24V 2. Receptacle: 7 ways( 7 wire harness)
Tail lamp with turm signal, brake light& refector and side lamp
One set 6-core standard standard cable
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Packing Nude, polish with wax before shipping
Shipping Transfer to Qingdao port and carry by container ship.

Pictures

Cattle transport trailer / side wall semi trailer / animal delivery trailers

Cattle transport trailer / side wall semi trailer / animal delivery trailers

Cattle transport trailer / side wall semi trailer / animal delivery trailers

24 HOURS online services

Regularly callback to know the vehicle’s working status.

Timely parts supply guarantee vehicles work continuously.
