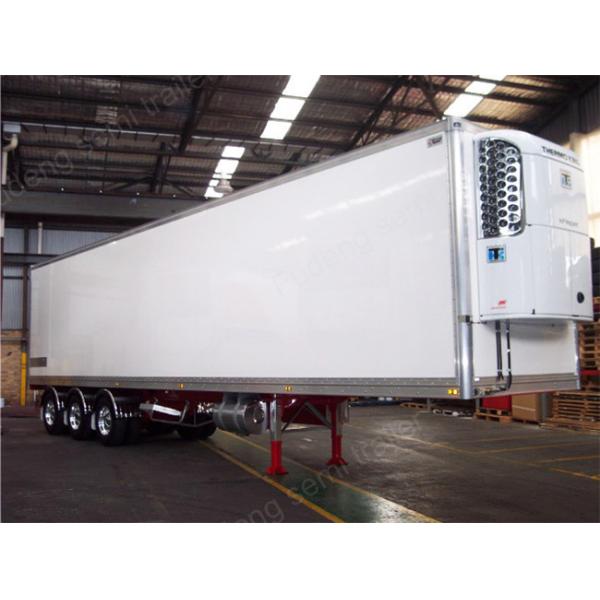

45 Ft / 40 Ft Refrigerated Cargo Trailer For Food Storage Max Payload 30 Ton
45 Ft / 40 Ft Refrigerated Cargo Trailer For Food Storage Max Payload 30 Ton
45 Ft / 40 Ft Refrigerated Cargo Trailer For Food Storage Max Payload 30 Ton
45 Ft / 40 Ft Refrigerated Cargo Trailer For Food Storage Max Payload 30 Ton
Specifications
Brand Name :
Fudeng
Model Number :
SDFD17033142
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T or negotiation
Supply Ability :
200 sets per month
Delivery Time :
30 work days after 30% deposit
Packaging Details :
Paint and wax spraying
Keywords :
Freezer van semi - trailer
Termpreture :
0 degree or do as customer requirment
Storage :
Food, meat, ice cream,vegetables
Pattern :
Fudeng logo or as customer's request
Max Payload :
30 ton
Size :
Buyer's Request
High quality :
Freezer van semi - trailer
Condition :
New
Price :
negotiation
Description

45 ft or 40 ft refrigerated trailer , 30 ton freezer van semi - trailer

Welcom Browse Our Product Page, If you have any question please feel free to contact me .
That's will be great honor for me if there have any message from you.

The main characters are as follows:
1. Light in weight:40% lighter than metal body.
2. Better insulation: K value less than 0.3w/m2k.
3. High in strength and long life: 5 times longer than metal body.
4. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
5. Easy to assembly and repair at site.

45 Ft / 40 Ft Refrigerated Cargo Trailer For Food Storage Max Payload 30 Ton

45 Ft / 40 Ft Refrigerated Cargo Trailer For Food Storage Max Payload 30 Ton

Specification

Specification45feet refrigerated semi-trailer
Dimension
External (length x width x height):12,200mmx2,600mmx4,000mm
External (length x width x height):11,971mmx2,496mmx2,333mm
Coupler Height (unload):1,370mm
King Pin Setting (kingpin to front end):1,000mm
Wheel Distance (king pin to first axle):8,155mm
Axle space:1,310mm
Rear Floor Height:1,468mm (depends on fifth wheel height)
Landing Gear location (from the king pin):2,450mm
Weight:
Tare Weight (tolerance ±4%):7,000kg
Maximum Axle Payload (distributed payload)20,000kg
Maximum King Pin Payload (distributed payload):10,000kg
Maximum Gross Weight:30,000kg
Noted:Customized products is available
