Tri axle 60cbm 40 ton 60 ton 70 ton dry silo bulk cement bulker tank trailer
Tri axle 60cbm 40 ton 60 ton 70 ton dry silo bulk cement bulker tank trailer
Tri axle 60cbm 40 ton 60 ton 70 ton dry silo bulk cement bulker tank trailer
Tri axle 60cbm 40 ton 60 ton 70 ton dry silo bulk cement bulker tank trailer
Specifications
Brand Name :
Fudeng
Model Number :
FDZH040606
Certification :
ce bv ccc iso sgs
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
300 sets per month
Delivery Time :
25 - 35 days after 30% deposit
Packaging Details :
Bulk cargo
Road condition :
Also applicable for bad condition
Material :
High strength steel material
Landing Gear :
28 T
Warrenty :
2 Years
Transportation :
Cement, flour etc bulk powder
Payload :
40 Ton 60 Ton 70 Ton 80 Ton
Axle :
3 axle BPW , Fuwa Axle
Color :
Customzed
Price :
negotiation
Description

Tri axle 60cbm 40 ton 60 ton 70 ton dry silo bulk cement bulker tank trailer

-- SHANDONG FUDENG AUTOMOBILE CO.,LTD

Bulk cement tank semi trailer / cement bulk trailer / bulk cement semi-trailer / bulk powder tanker trailer

1. 20cbm--100cbm capacity available
2.Unloading speed: 1.3ton / mins

3.Residual ratio :<15kg

4.Customized for any type

Specification

Overall information
Tare weight 13500kg
Dimension 12500*2500*3995mm
Compartment single compartments
Tanker body
Material of Tank body Q235A/4mm steel
Material of End plate Q235A/5mm
Manhole cover 500mm manhole cover 1 set
Discharge valve 4"disc valve
Discharge pipe 4"seamless steel tube
Chassis
Axle 13ton axles , 3 units Fuwa brand
Suspension China standard leaf spring suspension 10/10/10
Tire 1100R20-16 Triangle brand 12units
Kingpin 2" or 3.5" for option
Landing gear jost 28ton type
Braking system 6 big chamber
Others
Engine 4120 type weichai brand
Air compressor 12cbm
Air-charging system 1.5"safe valve;0.4Mpa.gauge
Painting Sand blasting to clean rust, polish with wax.color will be according to customer’s demand.
Accessories
Tool box One piece
Side guard Two sides
Electrical system Standard 24v wire, 7 way input
Quadratic blow 1"diameter check valve
Emergency valve Wabco brand
Outlet discharge pipe 4"rubber hose .6m


Details

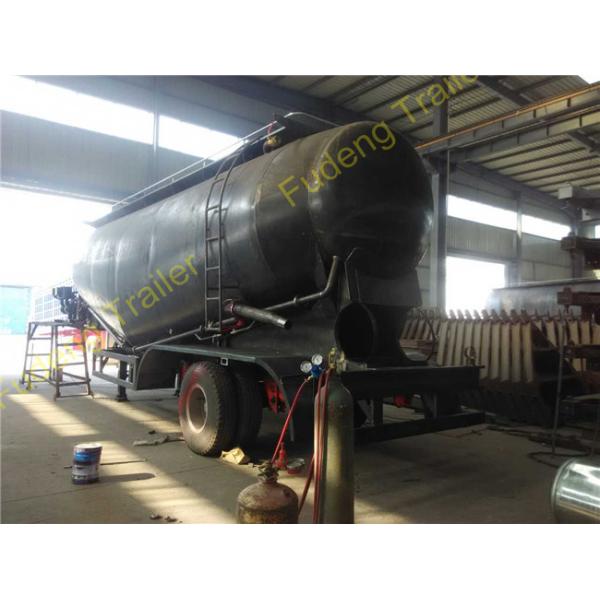

1. High strength steel is used to construct the semi trailer sub-frame, resulting in a lightweight construction that resists twist, shock, and bumps. The bulk cement carrier is suitable for driving on various tough terrains.

Tri axle 60cbm 40 ton 60 ton 70 ton dry silo bulk cement bulker tank trailer

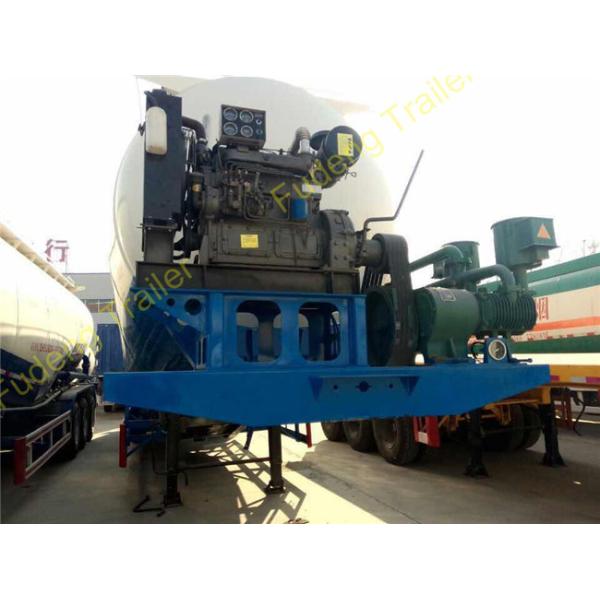

2 . Well-known brand Weichai Engine and BOHAI air compressor and famous trailer parts give durability and attractive looks, saving money on operation and repair cost

Tri axle 60cbm 40 ton 60 ton 70 ton dry silo bulk cement bulker tank trailer

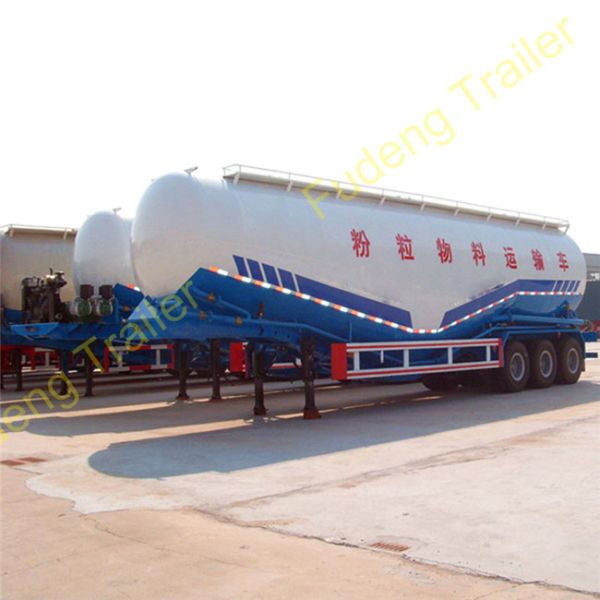

3 . Unique to FUDENG cement bulker is the V-shaped tank that allows complete discharge of the cement, with only less than 1% being left in the tank boday, residual ratio less than 15 kg

Tri axle 60cbm 40 ton 60 ton 70 ton dry silo bulk cement bulker tank trailer
