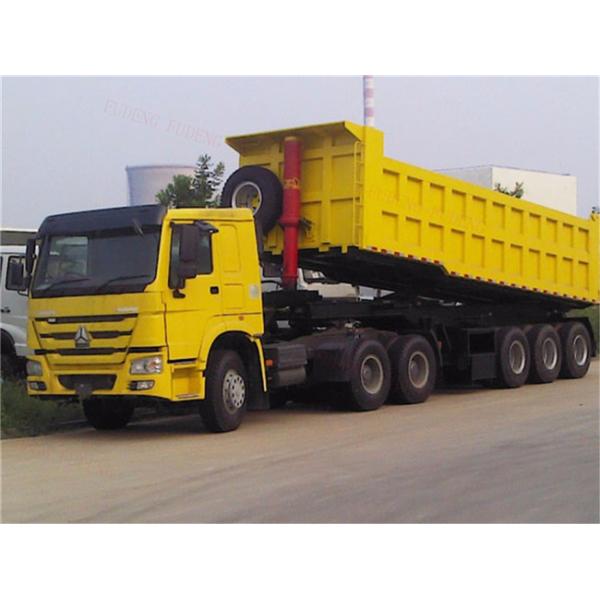

Q345B Steel Frame Tractor Trailer Dump Trailers 50 Tons Load Capacity
Q345B Steel Frame Tractor Trailer Dump Trailers 50 Tons Load Capacity
Q345B Steel Frame Tractor Trailer Dump Trailers 50 Tons Load Capacity
Q345B Steel Frame Tractor Trailer Dump Trailers 50 Tons Load Capacity
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1704 fence semi trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Material :
Carbon Steel
Usage :
Transport sand, stone and bulk cargo
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
40-80 ton available
Feature :
hyva hydraulic cyclinder
Load capacity :
100 tons
Price :
negotiation
Description

Fuwa axle tractor hydraulic dump semi trailer end tipper for sale

When you want a semi tipper to meet your haulage requirements Fudeng has one perfectly suited to the task, if not Fudeng has the manufacturing skills to make it for you.

Tipper Trailer Specifications
Chassis
Frame Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam Upper and lower plate is20mm,middle is10mm.height is 500 mm
Axle 2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear JOST (D200T) or CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type/air suspension
Leaf Spring 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS Optional
Accessories One standard tool box
Voltage 24V

Q345B Steel Frame Tractor Trailer Dump Trailers 50 Tons Load Capacity

Technical Advantages

1. Stronger chassis and suspension systems makes the dumper load more and could be suitable for bad road.

2. Long-time cooperation with the large shipping companies, supply faster delivery for our customers.

Q345B Steel Frame Tractor Trailer Dump Trailers 50 Tons Load Capacity Q345B Steel Frame Tractor Trailer Dump Trailers 50 Tons Load Capacity
