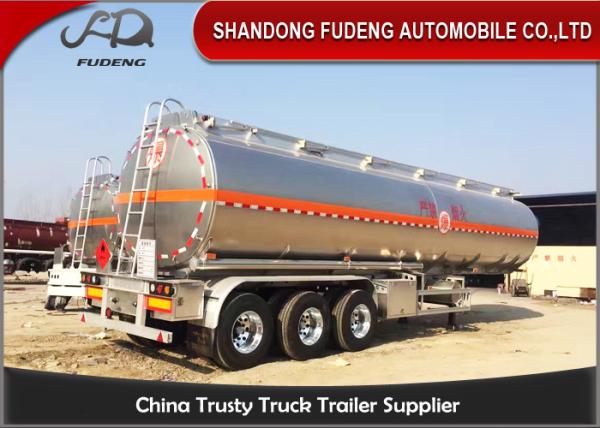

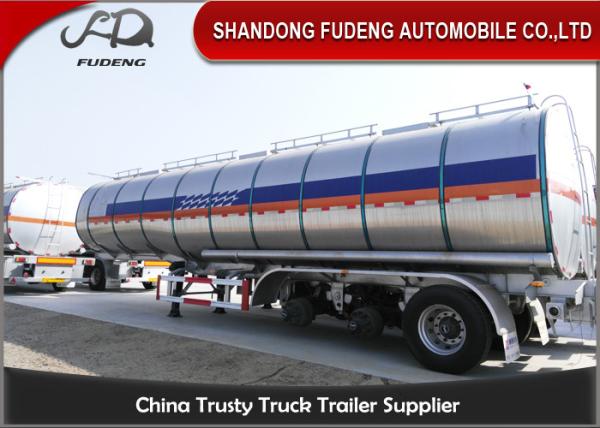

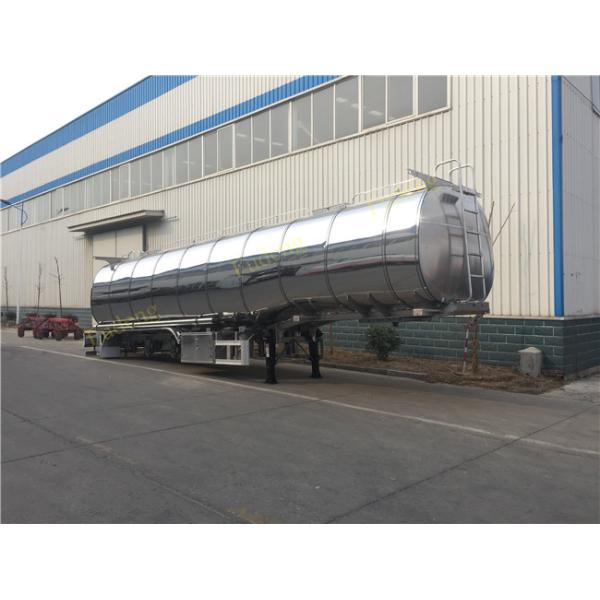

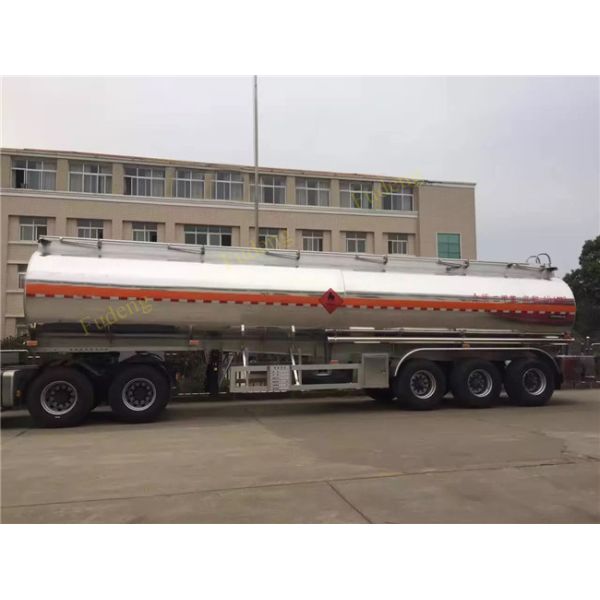

304 Stainless Steel 15000 Gallon 35000L Diesel / Gasoline Tank Trailer With 12 Wheeler
304 Stainless Steel 15000 Gallon 35000L Diesel / Gasoline Tank Trailer With 12 Wheeler
304 Stainless Steel 15000 Gallon 35000L Diesel / Gasoline Tank Trailer With 12 Wheeler
304 Stainless Steel 15000 Gallon 35000L Diesel / Gasoline Tank Trailer With 12 Wheeler
Specifications
Brand Name :
Fudeng
Model Number :
SDFD17012
Certification :
CE, ISO9001, CCC, ADR, DOT, SGS, etc
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Material :
stainless steel
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Axle :
13 ton Fuwa
Usage :
Transport fuel, oil or liquids
Compartment :
one to ten available
antiskid plate: :
installed on the top walkway
Description

304 Stainless Steel 15000 Gallon 35000L Diesel / Gasoline Tank Trailer With 12 Wheeler

Fudeng offers tanker trailer with heavy duty construction, various suspension options, trailer size options, tank material options, and a variety of shape options. To overcome your expectations, we can build a entirely customizable tanker trailer with the highest standards.

Custom-built tank trailers by Fudeng can be built according to industry standards to transport crude oil and petro-chemicals to and from your destination. When you use Fudeng products, you can travel with confidence.

1. Fudeng’s custom engineered Petro-Chemical trailers are the lightest on the market.

2. Proven two-piece barrel design with a single circumferential seam.

3. Industries widest sheet material minimizes barrel seams.

4. Designed for ease of operation and simple maintenance.

5. A wide variety of piping, vapor recovery, and pumping options available, including, factory-applied Tnemec Lining.

Tanker trailer Specifications
Tank Body
Shape Round
Dimension 11500mm*2490mm*3850mm or customized
Volume(m3) 35000L
Tare weight About 9500kg
Tanker Body 4mm, 304 stainless steel
End Plate 5mm, 304 stainless steel
Manhole Cover 2 pcs
Discharging Valve 56 Diameter is 3 inch ball valve
Discharging Pipe 3” rubber hose, 2 pcs, 6m/each
Bottom Valve 1, guard against the oil leak event
Other Ladder/ Walking Platform/ Folding armrest
Compartments 1
Chassis
Main Beams Special design I beam, Q345 carbon steel material
Frame Beam Upper plate is 14mm and lower is 16mm,middle is 8mm. height is 500 mm
Axle 3 axles, American type, FUWA brand.
Landing Gear (D200T) 28T JOST brand
King Pin 2.00 or 3.5 inch bolt-in or welding king pin, JOST brand
Suspension Mechanical spring suspension
Leaf Spring 90mm(W)*16mm(T)*10 Layer
Pneumatic Braking System 6 relay valve, 3 axles synchronization, WABCO brand
Tire 11.00R20, 12.00R22.5, 315/80R22.5 Double coin Brand
ABS 4S/2M
Accessories Standard tool box, spare wheel carrier , Water tank
Voltage 24V
Packing and shipping
Painting Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO

The basic equipment is of valves, manhole, baffles, pipes, ladder, etc.

For optional equipment, pump, dispenser, water box, tool box, EU subsea valve, static electricity wire coil, gasoline vapor recovery unit, spill-free alarm, bottom loading devices, etc.
304 Stainless Steel 15000 Gallon 35000L Diesel / Gasoline Tank Trailer With 12 Wheeler
304 Stainless Steel 15000 Gallon 35000L Diesel / Gasoline Tank Trailer With 12 Wheeler

You can tell us your requests, we customize for you!
