Automatic Tank Rotators 60T / 100T Column And Boom Manipulator

Quick Details

• Metallic rollers with groove to support fake flange;
• With travel boogie, very convenient to transfer the material;
• Roller distance is bolt adjustable and roller surrounding angle among 45°～110°;
• Hand pendant with Forward-Stop-Reverse, boogie travel buttons and speed potentiometer are standard;

1. Introduction:

This is special roller beds for tank/pipe painting processes. While, it also can be considered as common turning rolls in your production. We only have 60T&100T as our standard roller beds. If you have special requirements, please contact us.

2. tank rotator Parameters

*We reserve the right to alter specifications without prior notice.

3. Main features

The standard models of our roller beds have the following features:

• This special turning rolls consist of one driving bolt adjustable turning roll, one idle bolt adjustable turning roll
• and electric control system, etc;
• All the connectors are designed with safety protections and improved airproof performance to ensure the
• machine can work in severe surroundings;
• There is metallic wheel groove in the middle of roller which is used for supporting the fake flange during
• painting;
• Steplessly controllable rotary drives by means of A.C. anti-explosion motor drive via self-locking worm gear
• reducers;
• Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
• With travel boogie, very convenient to transfer the material;
• Metallic wheels;
• Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before
• painting;
• Fine machining to upper surface of base;
• Roller distance is bolt adjustable and roller surrounding angle among 45°～110°;
• All motion parts have lubrication system;
• Main electric elements are ABB/Siemens brands;
• Hand pendant with Forward-Stop-Reverse, boogie travel buttons and speed potentiometer are standard;
• Lifting lug on the base of roller bed;
• Standard color:

Optional features:

• Foot switch;
• Servo drive;

4. Supply range

• Driving turning roll 1set
• Idle turning roll 1set
• Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m] 1set
• Technical documents (with manual book, conformity certificate, packing list, etc) 1set

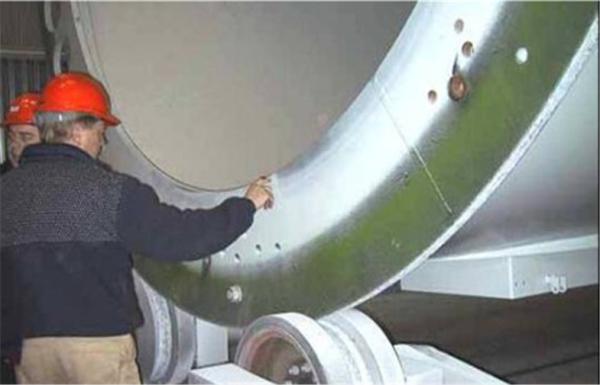

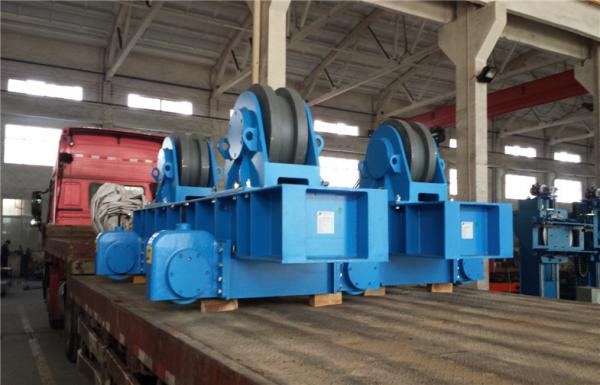

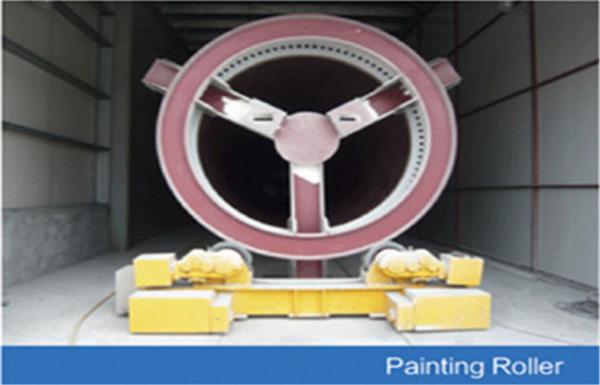

5. Reference photo

6. Comparative advantage

• ISO9000&CE certified;
• International warranty;
• Punctual delivery;
• Professional and experienced engineer team to ensure the advanced design about structure and electric;
• Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final
• assembly and testing to ensure high machine quality;
• Professional and experienced after sale service team to guarantee quick and satisfiedinstallation,
• commissioning or service;
• Optimum materials and outsourcings to ensure the best performance;
• Commissioning and testing before delivery;
• Factory inspection is encouraged;
