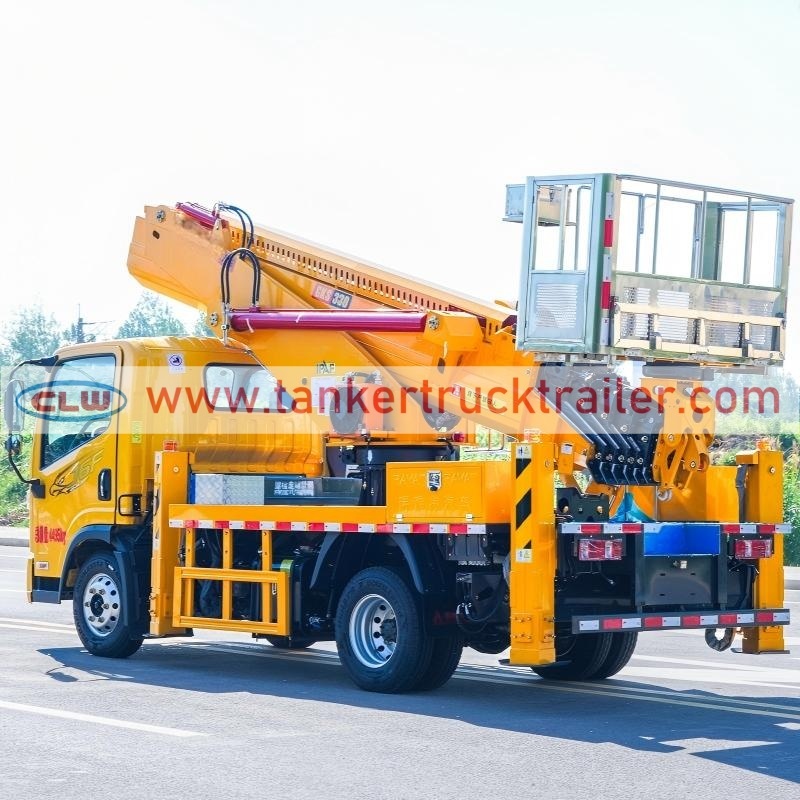

FAW 33m Telescopic Boom Lift Aerial Work Platform Truck
FAW 33m Telescopic Boom Lift Aerial Work Platform Truck
FAW 33m Telescopic Boom Lift Aerial Work Platform Truck
FAW 33m Telescopic Boom Lift Aerial Work Platform Truck
FAW 33m Telescopic Boom Lift Aerial Work Platform Truck
FAW 33m Telescopic Boom Lift Aerial Work Platform Truck
FAW 33m Telescopic Boom Lift Aerial Work Platform Truck
FAW 33m Telescopic Boom Lift Aerial Work Platform Truck
Specifications
Supply Ability :
500 units/month
Condition :
100% New
Model Number :
CLWDT2026299
MOQ :
1 unit
Delivery Time :
35~45 working days
Logo and Color :
Optional
Payment Terms :
L/C,T/T,Western Union
Driving Type :
4X2, LHD
Platform Load Capacity :
200–300 kg
Price :
$30000~$40000 /unit
Working Height :
33M
Boom Type :
Insulated Articulating Folding Boom
Certification :
CCC / ISO901 / GCC
Place of Origin :
China
Packaging Details :
Naked
Brand Name :
FAW
Description
An Aerial Work Platform Truck (AWP Truck), also known as a Bucket Truck, Man Lift Truck, or Aerial Platform Vehicle, is a specialized vehicle designed to safely lift workers, tools, and equipment to elevated working positions for installation, maintenance, inspection, and repair operations.
The vehicle is equipped with a hydraulic lifting system, telescopic or articulated boom, working platform (basket), and stabilizing outriggers, providing safe and efficient access to hard-to-reach areas at various heights.

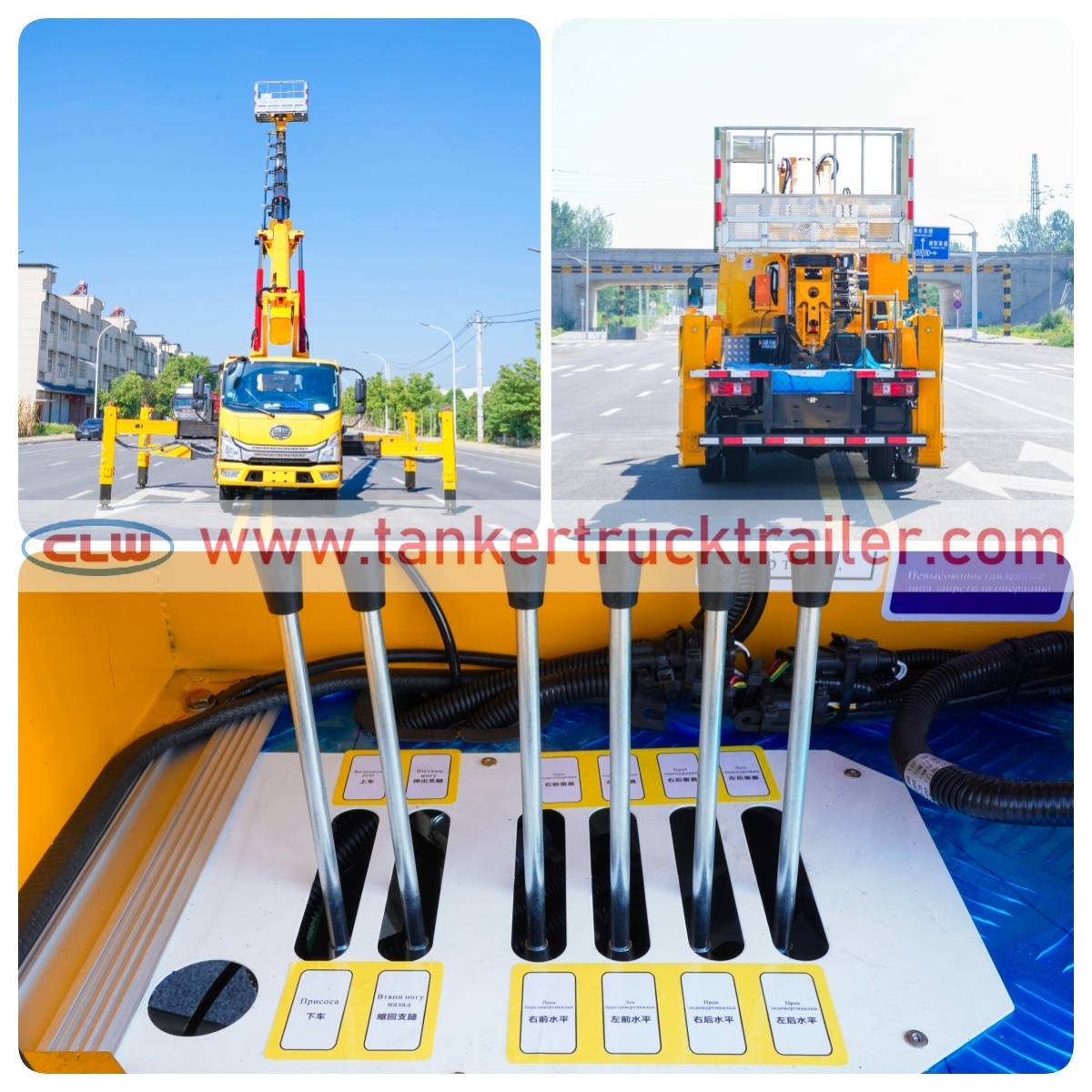

The FAW 33m Aerial Work Platform Truck is a specialized vehicle designed for safe and efficient high-altitude operations. Mounted on a reliable FAW chassis, it is equipped with a telescopic boom, hydraulic operating system, and elevated work platform, enabling workers to perform tasks at heights of up to 33 meters.

Truck Specification
Product Name FAW 33m Telescopic Boom Lift Aerial Work Platform Truck
Truck Manufacturer CLW GROUP
Overall dimensions (L×W×H) About 7800*2100*3200mm
Chassis Specification
Cabin FAW,LHD, A/C
Drive type 4*2
Wheelbase 3360mm
Fuel type of engine Diesel
Maximum horse power of engine 160hp
Number of cylinders of engine 4
Emission standard of engine Euro 3
Gear box type 5 forward &1 rear
Tyres Size 7.00R16
Quantity of tyres 6+1 spare tire
Upper Body Specification
Working Height 33M
Boom Type Folding Boom
Function Equipped with 360° continuous rotation
200–300 kg platform load capacity
Equipped with H-Type hydraulic outriggers
Equipped with ground + platform dual control
Color and logo can be optional

I Feature

  • Hydraulic lifting system for smooth and stable operation
  • 360° continuous rotation for flexible positioning
  • Dual control system from both platform and ground
  • Hydraulic lifting system for smooth and stable operation
  • Compact design for operation in narrow urban areas


I Advantage
  • The aerial work platform allows operators to quickly reach elevated work areas, significantly reducing setup time and improving productivity compared with traditional ladders and scaffolding.
  • Equipped with hydraulic outriggers, safety guardrails, emergency stop systems, and automatic leveling devices, the vehicle provides a safe and stable working environment for operators at height.
  • Suitable for street light maintenance, power line construction, telecommunication installation, building maintenance, tree trimming, billboard installation, and various industrial projects.
  • The telescopic or articulated boom design offers outstanding vertical and horizontal reach, enabling access to difficult or hard-to-reach locations.
  • The 360° rotation system and electro-hydraulic controls allow smooth, accurate positioning of the work platform, increasing operational efficiency and convenience.
