Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer
Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer
Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer
Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer
Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer
Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer
Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer
Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer
Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer
Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer
Specifications
product name :
40 ft flatbed trailer
Suspension :
Leaf spring, or air bag
Landing gear :
JOST BRAND, 28T
Loading Type :
Container Loading, 1*40FT, 2*20FT
Twist Lock No. :
12 Nos. of ISO Twist Lock
Loading Capacity :
30 ton, 35 tons; 40 Ton, 45 Tons, 50T, 60T
King Pin :
JOST BRAND, 50#, 90#
Tire :
12R22.5, or 11R22.5 Tubeless Tire
Floor thickness :
3mm or 5mm Checker Plate
Braking System :
Webco Re 6 Relay Valve
Number of axle :
2 axle, 3 axle, 4 axle
Loading :
by 40HQ container, or by RORO or Bulk ship
Model Number :
CSC007
Certification :
CCC, ISO9001
MOQ :
1
Price :
12000-19800USD/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500units per month
Delivery Time :
25-30 days after receiving the deposit
Packaging Details :
Naked or waxed before shipment.
Description

The specification of 40ft container loading trailer 2 axle 3 axle 4 axle flatbed semi trailer for sale. Factory sale 2 axle flatbed trailer flatbed Semi-Trailer , 3 axle 40ft container semi trailer 50tons 60tons flatbed semi trailer for sale

Loaded by Bulk ship, 3 units put into one package.

Or Loaded by container ship. 2 units put into one 40HQ container.

40ft container loading trailer 3 axle flatbed dropside warehouse storehouse semi trailer for sale

DIMENSIONS

4 axle flatbed semi trailer
Tare Weight 8700kg
Overall Length 12400mm
Overall Width 2480mm
Payload 60000kg
Photo for reference. Final products can be made according to exact requirements
SPECIFICATIONS
I Beam & Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm.
Axle4 4 axles
BPW brand 13 ton
Suspension Heavy duty mechanical suspension
Floor 3mm checker plate
Leaf Spring L1 brand air suspension, Air bag.
King Pin JOST brand 2” Bolt-in King Pin
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim 11.75-22.5 steel wheel rim, 9 pieces including one spare
Tire 385/65R22.5 tubeless tire, 9 pieces including one spare tire.
Twist Lock 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare Tire One set of spare tire including a carrier
Braking System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box

The detailed pictures:

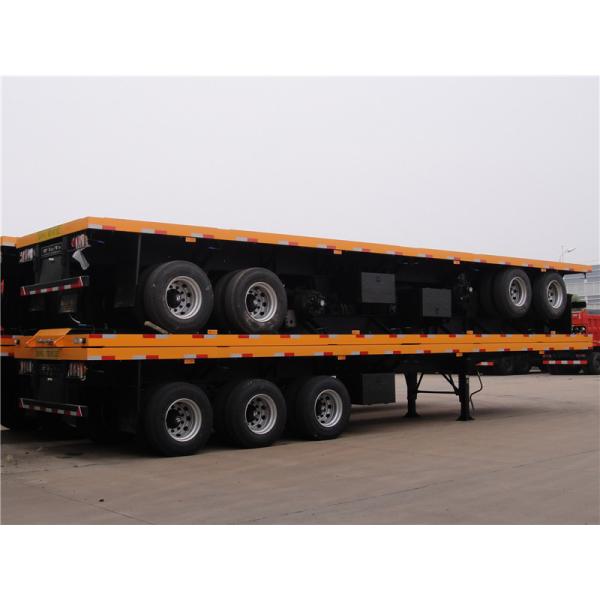

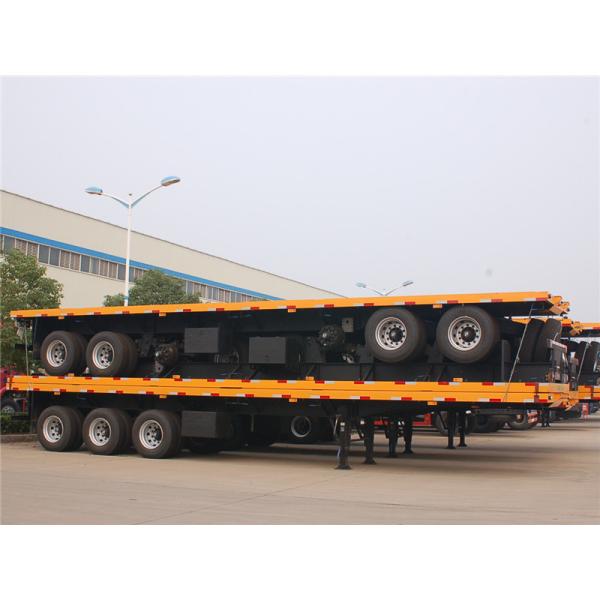

2 axle 40ft flatbed semi trailer:

Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed TrailerContainer Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer

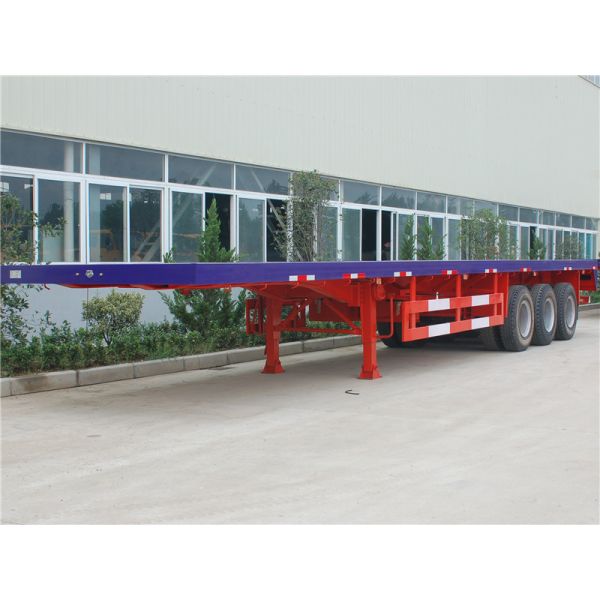

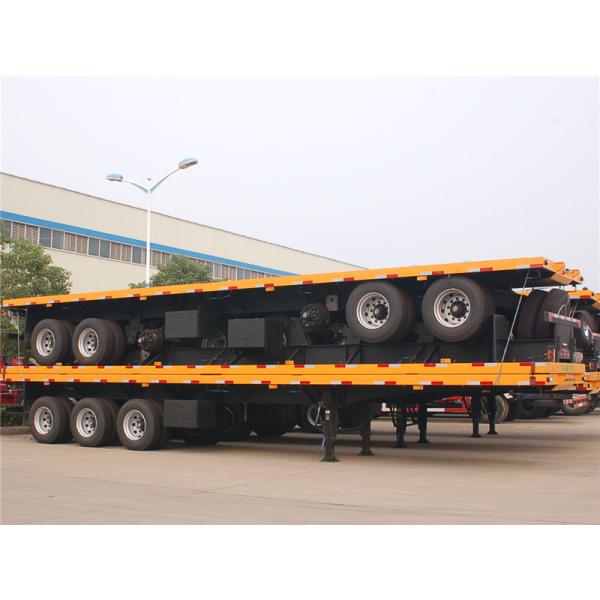

3 axle flatbed semi trailer:

Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer

Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer

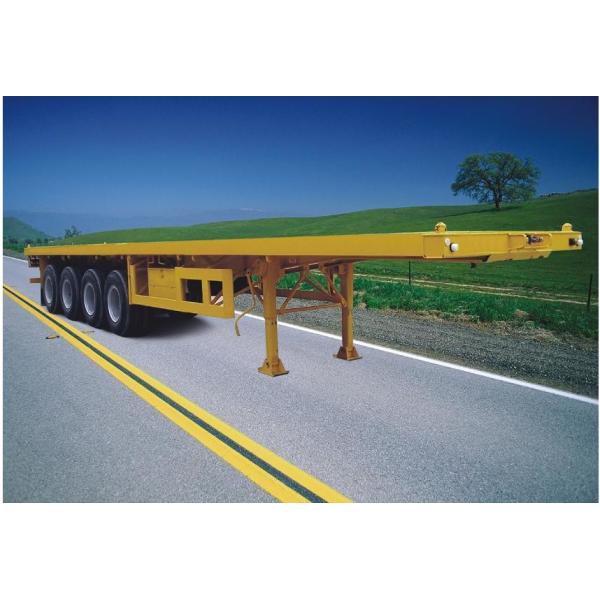

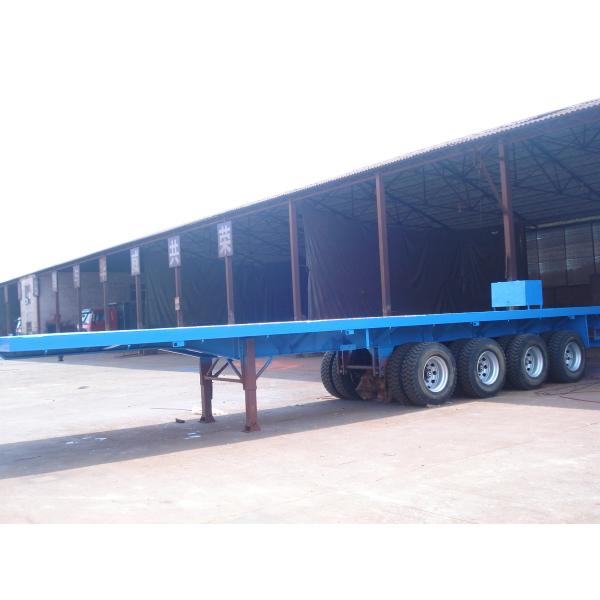

4 axle flatbed semi trailer:

Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer

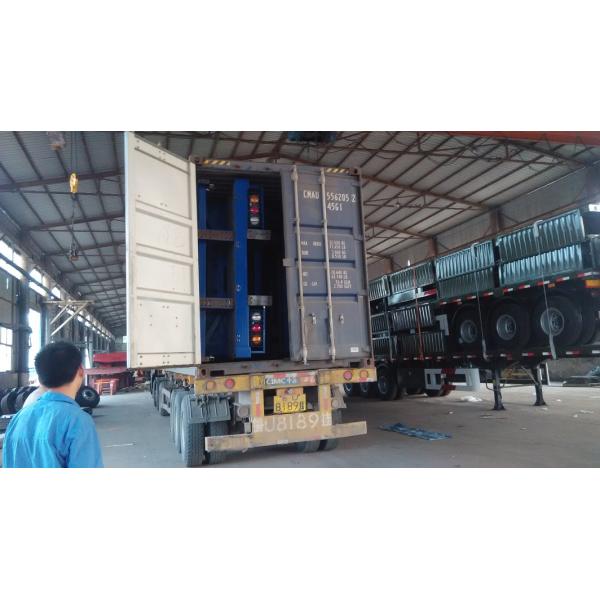

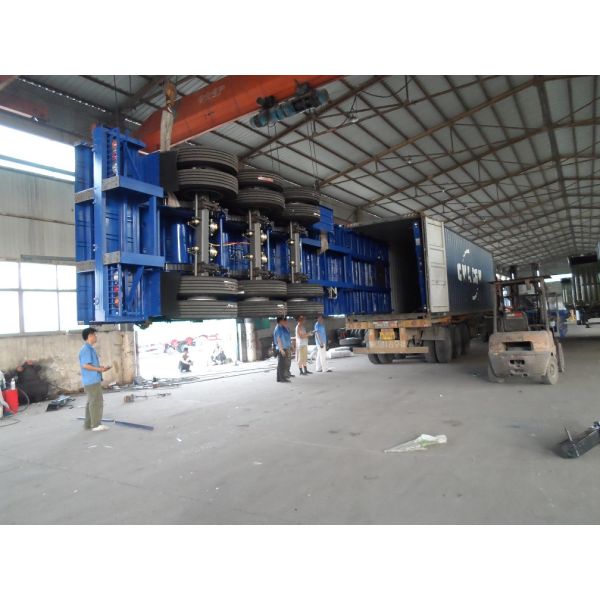

Delivery pictures:

Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer

Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer

Container Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed TrailerContainer Loading 4 Axle Semi Trailer , 50 Tons 60 Ton 45 Ft / 40 Foot Flatbed Trailer
