Specifications
Model Number :
CS1047C3414B145
Certification :
CE. ISO9001
MOQ :
1
Price :
Price negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 units per month
Delivery Time :
25-30 days after receiving the deposit
Packaging Details :
waxed before shipping HOWO 6X4 336hp 10 wheels tracotor head
Item name :
HOWO 6X4 336hp tractor head
Horse power :
336hp
Type :
6x4
Emisson standard :
Euro II
Fuel type :
Diesel
Engine Capacity: :
<4L
Curb weight :
7980kg
Oversall dimension :
6800*2496*2970mm
Axle :
3 axles
Engine horse power :
266hp, 290hp, 336hp, 371hp for optional
Cab :
HOWO 76, 2 seat, 1 sleeper
Tires model number :
12R22.5
Gearbox :
12 forwards, 2 rear
Description

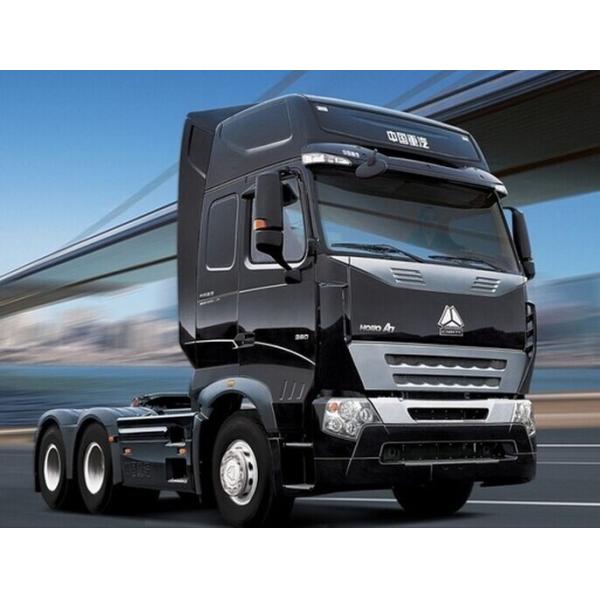

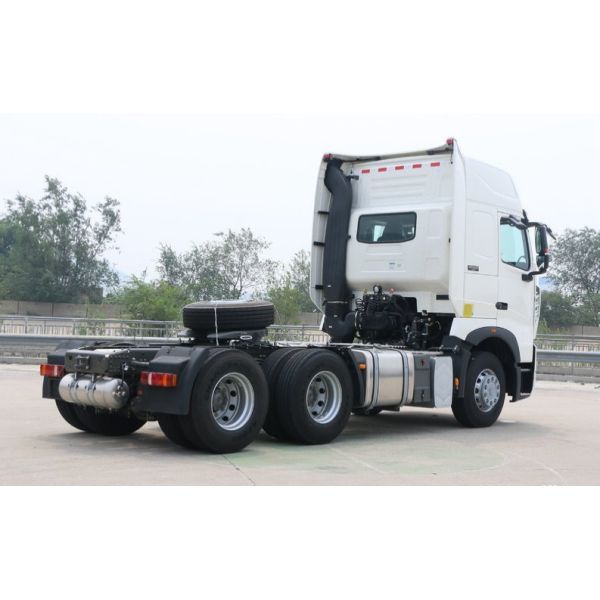

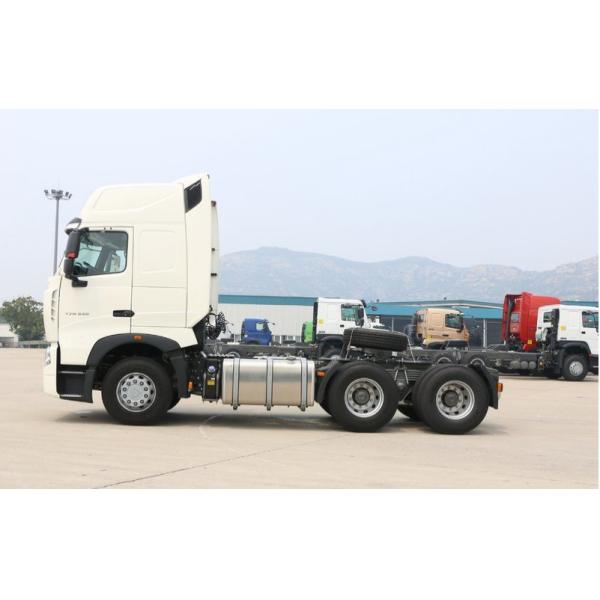

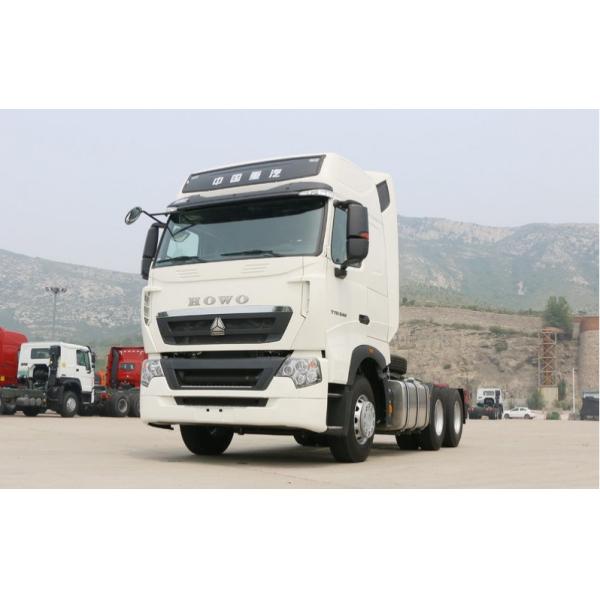

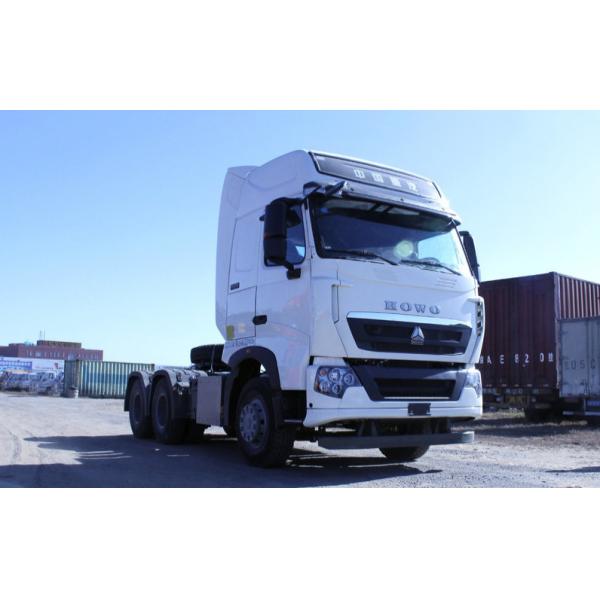

RHD/LHD SINOTRUK HOWO 6X4 336HP tractor head 3 axles 10 wheels prime mover for sale

Brand: SINOTRUK HOWO

Horse power: 336hp

Type: 6x4

Wheel: 10 wheels

Emisson standard: Euro II

Sinotruk HOWO 6X4 Tractor Head Technical Parameters:

Truck Model ZZ4257N25C7N1B
Truck Brand SINOTRUK -- HOWO A7
Dimension(Lx W xH)(unloaded)(mm) 7085*2496*3560
Approaching angle/Departure angle(°) 15/38
Overhang(front/rear) (mm) 1540/1120
Wheel base (mm) 1950+2475
Max speed(km/h) 101
Curb weight(kg) 7400
Fuel tanker capacity(L) 400L

Engine Model

(Steyr technology, made in China)

 Fuel type diesel
Horse Power, 336HP
Emission EURO II
Model WD615.69 water-cooled, four strokes, six cylinders in line with water cooling, turbocharged and intercooling, directly injection.
Transmission Model HW19712CL 12 forward 2 reverse

Brake system

 Service brake Dual circuit compressed air brake
Parking brake Spring energy, compressed air operating on rear wheels
Auxiliary brake Engine exhaust brake
Steering system Model ZF8098 hydraulica steering with power assistance
Front axle VGD0053QB
Rear axle Mcy13
Color Red white black etc.
Tyre 315/80R22.5
Electrical system Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V
Cab A7-P cab, (one sleeper, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
