Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type
Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type
Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type
Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type
Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type
Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type
Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type
Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type
Specifications
Model Number :
chusheng
Certification :
CCC, ISO9001, TS16949
MOQ :
1 units
Price :
Could be negotiated
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
1000 UNITS per Month
Delivery Time :
35-40 work days after receiving the deposit
Packaging Details :
waxed or Naked before shipping
Item name :
heavy duty wrecker tow truck
Loading capacity :
25T, 2*25T, 40tons, 50 tons
Wrecker Type :
360 degree rotator, 360 degree rotation
Driving type :
8x4, left hand drive / right hand drive
Other driveing type available :
4x2, 6 wheels ,6x4, 10 wheels, 8x4, 12 wheels
Chassis brand :
SINOTRUK HOWO
Other brand available :
Dongfeng, HOWO, SHACMAN, JAC, JMC, FAW, FORLAND etc
Engine horse power :
226hp, 290hp, 336hp, 371hp etc
Other type :
Heavy duty , flatbed wrecker tow
Description

High quality 8X4 diesel fuel type and manual transmission type Road Wrecker towing Truck, Tow Truck

Brand: SINOTRUK HOWO
Other horse power for option: 266hp, 290hp, 336hp, 371hp
Other brand available: Dongfeng, HOWO, FORLAND, SHACMAN, FAW etc.
Loading capacity:25tons
Other loading capacity for optional: 5t, 8t, 10t, 12t, 15t, 20t, 25t, 30t
Driving type: 8x* left hand drive / right hand drive
Ohter type: 4x2, 6x4, 8x4 ,light duty, heavy duty

Heavy duty SINOTRUK HOWO 8x4 371hp 40T wrecker truck parameters:

CHASSIS
Cabinstandard cabin, with air conditioner, allowed for 2~3 persons
No load(kg)Curb Weight13070
Front axle7000*2
Rear axle18000*2
Full loadMax. Overall Weight31000
Overall Dimensions(mm)Length11430
Width2500
Height3270
Wheel base(mm)1800+4600+1350
Track(mm)2022/1830
F/R Suspension(mm)1500/2200
A/D Angle(°)16/18
Driving Model8*4
Tyre12R22.5
Max. Speed(km/h)102
Max. Grade-ability(%)30
Min. Turning Diameter(m)22.6
Min. Ground clearance(mm)310
EngineModelWD615.47
Horsepower(HP)371
Displacement(mL)9726
Transmission10 forwards&2 reverses
WRECKER EQUIPMENT
Max. Towing Weight(kg)43000
Lifting SystemMax. Lifting Weight(kg)25000
Max. Lifting Weight under all extension(kg)8300
Effective Length of Corbeling Arm(mm)3650
Extend-retract of Corbeling Arm(mm)1750
Slope Angle of Corbeling Arm(°)7
Folding angle under no load(°)-7~92
Folding angle under load(°)-7~16
Max. Ground Distance(mm)900
Landing Strength(KN)80*2
Hydraulic HoseTianhe,Guangdong Province
Hydraulic JointGermany technology and exported Sealing rings
Hydraulic LockJiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd.
Swivel JointYangzhou Zhongmei Pressure Parts Co.,Ltd.
Compartment plateOne-step Modeling by Germany 3P2A 1000T punching machine
Hoisting SystemMax. Hoisting Weight(kg)30000
Max. Hoisting Weight under all extension when Hoisting Angle is 30°(kg)7800
Max. Hoisting Weight underno extension when Hoisting Angle is 30°(kg)18000
Extension Distance of Oil Cylinder(mm)6000
Length of Crane Arm(mm)5880
Section No. Of Crane Arm3
Max. Hoisting Height(mm)12300
Max. Operation Diameter (mm)10710
Max. Hoisting Angle(°)0~60
Rotation angle(°)360
WinchNo.2
Curb Traction/Per(KN)150
DN of Steel Rope(mm)Φ20
Length of Steel Rope(m)40*2
Min. Line Speed(m/min)5
Front Outrigger Type“H” type
Rear Outrigger Type“L” type
Front Outrigger Span(mm)6600
Rear Outrigger Span(mm)4080
Span between front and rearOutriggers5550
Jump-start cables12~24 Volts
Electric systemRear working lamp(stop,tail,turning)3
Revolving beacon1
Lamps for license plate1 set
Pneumatic hoses1 set

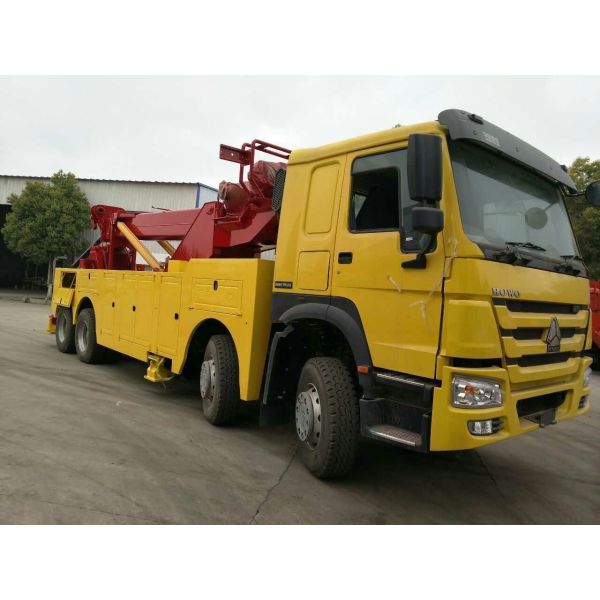

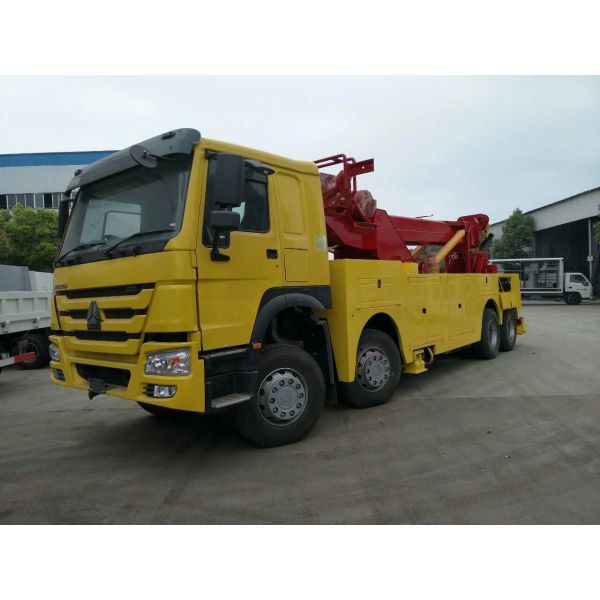

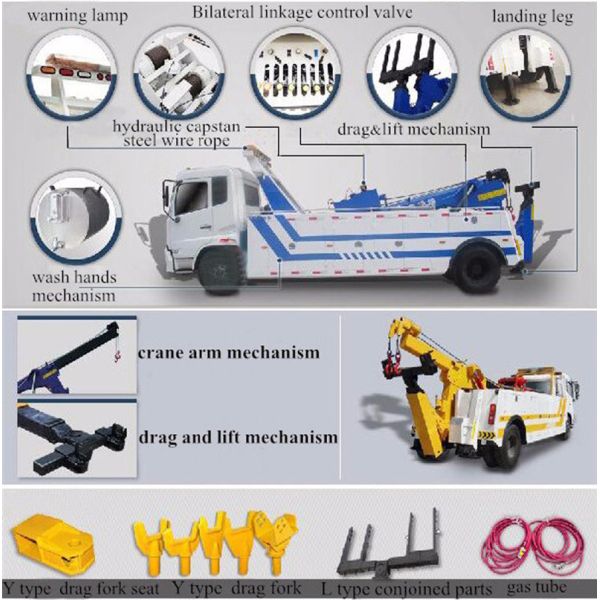

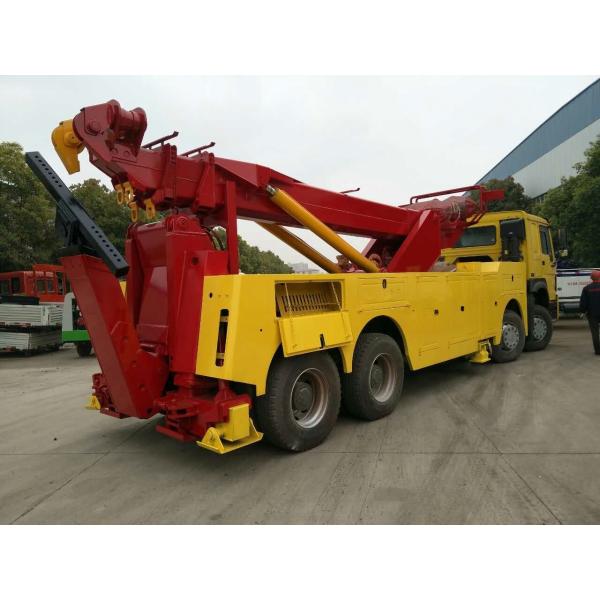

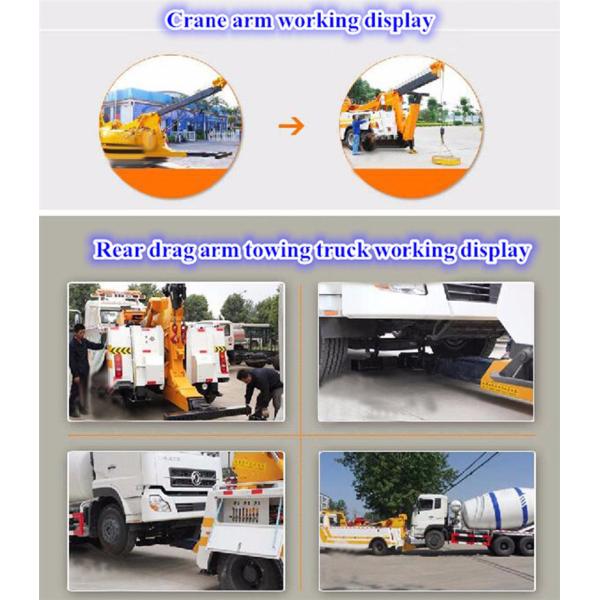

Heavy duty SINOTRUK HOWO 8x4 371hp 50T wrecker tow truck detailed images:
Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type
Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type
Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type
Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type
Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type

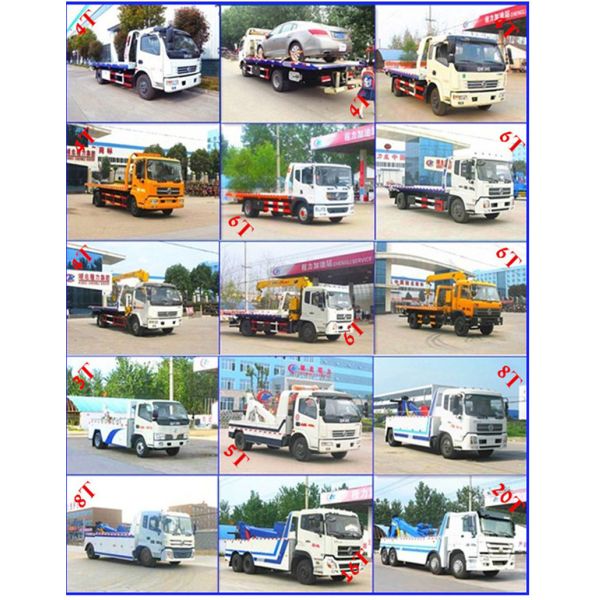

Other kind of wrecker truck:
Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type
