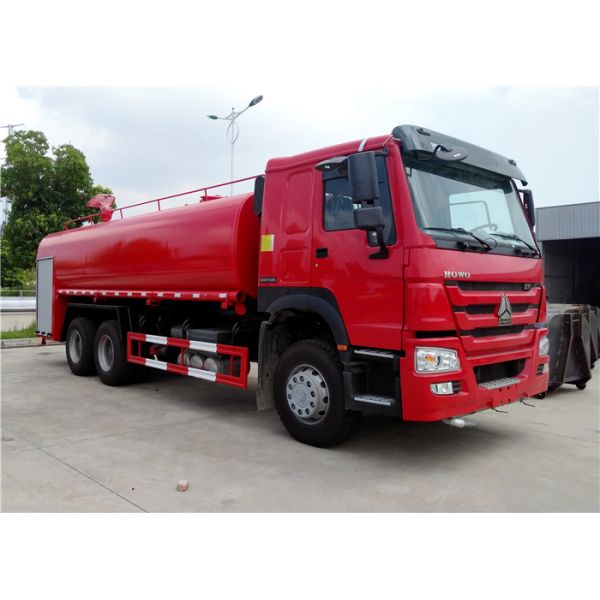

HOWO 6X4 371HP 20 Tons 20ton Fire Quenching Truck 20000L Fire Water Sprinkler Tanker Truck
HOWO 6X4 371HP 20 Tons 20ton Fire Quenching Truck 20000L Fire Water Sprinkler Tanker Truck
HOWO 6X4 371HP 20 Tons 20ton Fire Quenching Truck 20000L Fire Water Sprinkler Tanker Truck
HOWO 6X4 371HP 20 Tons 20ton Fire Quenching Truck 20000L Fire Water Sprinkler Tanker Truck
HOWO 6X4 371HP 20 Tons 20ton Fire Quenching Truck 20000L Fire Water Sprinkler Tanker Truck
HOWO 6X4 371HP 20 Tons 20ton Fire Quenching Truck 20000L Fire Water Sprinkler Tanker Truck
HOWO 6X4 371HP 20 Tons 20ton Fire Quenching Truck 20000L Fire Water Sprinkler Tanker Truck
HOWO 6X4 371HP 20 Tons 20ton Fire Quenching Truck 20000L Fire Water Sprinkler Tanker Truck
Specifications
Model Number :
ZZ1257S44641W
Certification :
ISO9001, CCC
MOQ :
1 units
Price :
Could be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units per one year
Delivery Time :
30-40 days after receiving the deposit
Packaging Details :
Naked or Wax before shipment
Tank Volume :
5000L, 10000L, 15000L, 20000L
Loading Capacity :
5 Tons, 10 Tons, 15 Tons, 20 Tons.
Product Name :
Fire Fighting Truck, Fire Quenching Truck
Chassis Brand :
Dongfeng / Sinotruk HOWO / Foton / Shacman
Drive Type :
4X2, 6-Wheel, 6 Wheeler. 6X4, 10-Wheel, 10-Wheeler
Drive Model :
Left Hand Drive, Right Hand Drive.
Application :
Fire Rescue, Fire Fighting, Fire Quenching
Key Parts :
Pump, Fire Gun, Front Sprinkler, Rear Spraying
Transmission :
Manual Control Fire Extinguisher
Warranty :
One Year Warranty for Three Key Parts(Axles, Engine, Transmission)
Description

HOWO 6x4 371HP 20 tons 20ton fire quenching truck 20000L fire water sprinkler tanker truck, HOWO 6*4 20m3 20ton water tanker 20000L Water Sprinkler Truck with Fire Brigade System

Fire Fighting Truck, Fire engine Truck, Fire rescue tank truck, which are mainly used in the city or community in case the accidental fire. Currently the fire truck has three main design.water fire truck, foam fire truck,powder fire fighting truck.

Water tank fire engine truck form 3000~18000 liters.
Foam tank fire fighting truck from 3000~18000 liters
Powder tank fire rescue tank truck from 3000~18000 liters.
Or the model with three kind, water,foam,powder.

The parameter of HOWO 6X4 371HP 20 Tons 20ton Fire Quenching Truck 20000L Fire Water Sprinkler Tanker Truck.

Cabin

HW 76 Standard Cab, Left hand drive, one sleeper. A/C

With two bunks, 70° hydraulically tillable to the front as attached photo for ref. (picture just for reference)
Vehicle Main Dimensions (L x W x H)mm 10400x2500x3300
Wheel base (mm) 5800+1400
Wheel track (front/rear) (mm) 2022/1830
Approach/Departure angle(°) 16/15
Weight in KGS Tare Weight 12000KG
Loading Capacity 20000
Front axles loading capacity HF9 1x9000　
Rear axles loading capacity ST16 2x16000
Max. driving speed(km/h) 90
Engine Brand Sinotruk 　
Model WD615.47
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 371HP
Emission standard Euro Ⅱ
Gearbox HW19710, 10 Forwards gear & 2 reverse
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear ZF 8098, power steering, hydraulic steering with power assistance
Fuel tank (L) 300L
Tire 12R22.5 radial steel tire 11 Pieces including one spare
Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake　
Tank

20000L, carbon steel. Tank thickness:5mm, End plate thickness: 6mm.

Equipped with front and rear Sprinkler.

Equipped with pump and PTO (Suction lift >6m)

Equipped with fire valve, water valve, and filter gauze.

Equipped with water cannon.

Equipped with fire brigade system, fire gun on top, (Sprinkling width>50m)
Paint Anti-corrosive

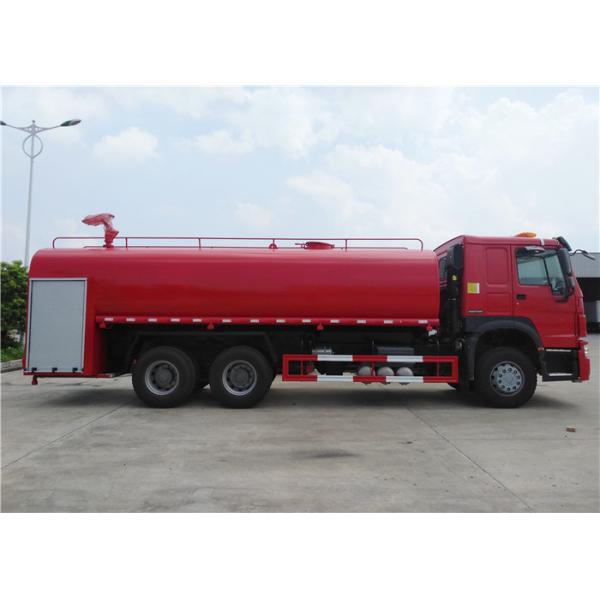

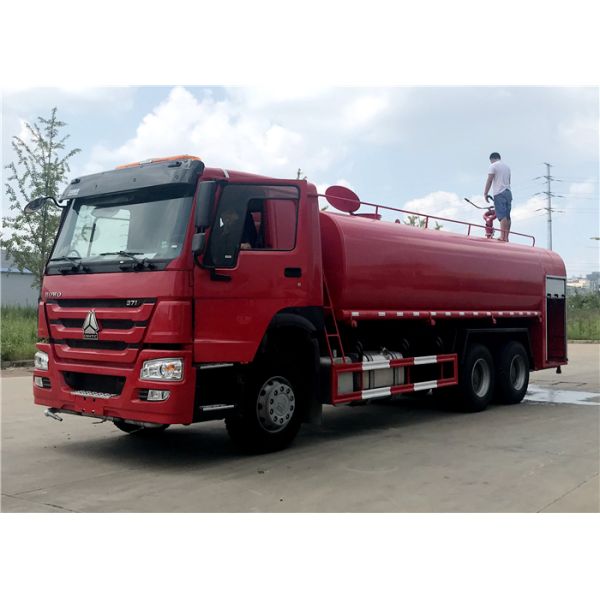

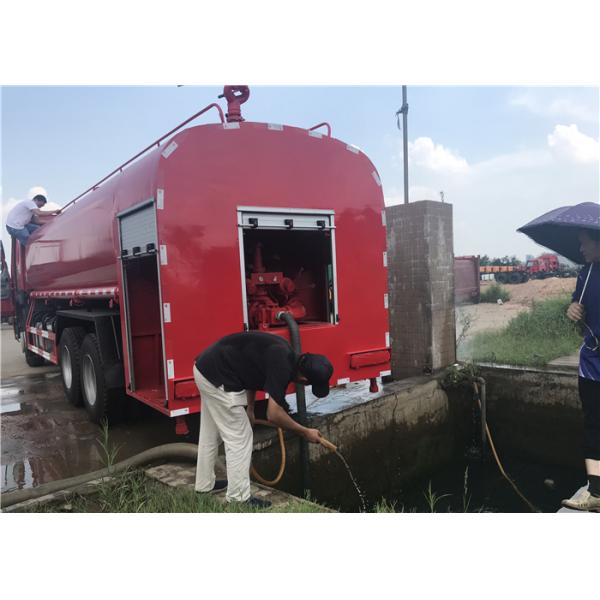

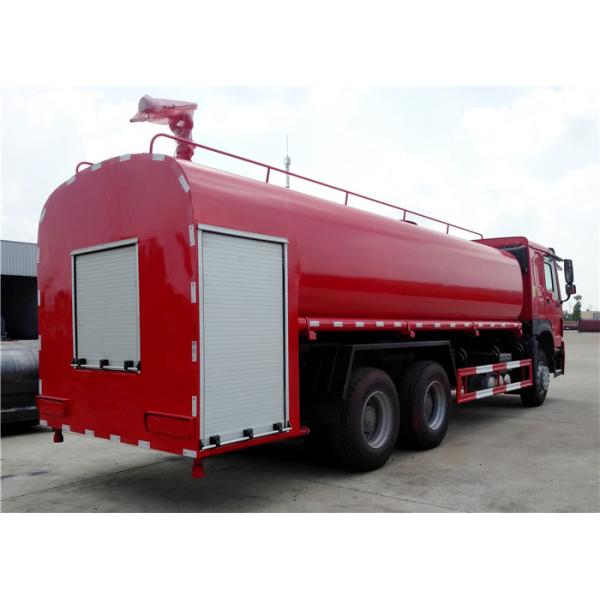

More Pictures for HOWO 6X4 371HP 20 Tons 20ton Fire Quenching Truck 20000L Fire Water Sprinkler Tanker Truck
HOWO 6X4 371HP 20 Tons 20ton Fire Quenching Truck 20000L Fire Water Sprinkler Tanker Truck
HOWO 6X4 371HP 20 Tons 20ton Fire Quenching Truck 20000L Fire Water Sprinkler Tanker Truck
HOWO 6X4 371HP 20 Tons 20ton Fire Quenching Truck 20000L Fire Water Sprinkler Tanker Truck
FAQ:

1.We can product truck accroding the customer's requirments(color,size,logo and so on)
2.We can send our technician to arrive the customer's country to provide the service .
3.We can train customer‘s workers for free.

4.Our truck warranty: 12 months for three key parts.
