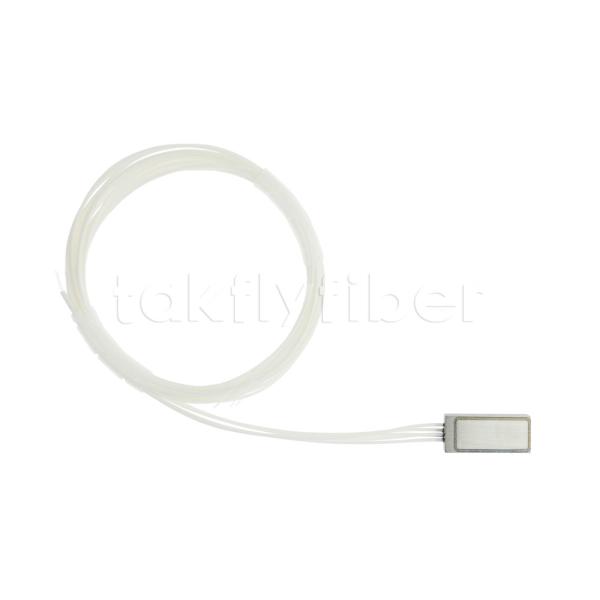

4CH Ultra Compact CWDM Module
4CH Ultra Compact CWDM Module
4CH Ultra Compact CWDM Module
4CH Ultra Compact CWDM Module
4CH Ultra Compact CWDM Module
4CH Ultra Compact CWDM Module
Specifications
Brand Name :
DF, TAKFLY, OEM
Model Number :
TK-UT-CCWDM-4CH
Certification :
CE, ROHS, REACH, ISO9001, ISO14001
Place of Origin :
Made in China
MOQ :
1
Price :
145.99
Payment Terms :
T/T,Western Union
Supply Ability :
500pcs per week
Delivery Time :
7-9 working days
Packaging Details :
Inner box +carton
Operation Wavelengths :
1470-1610nm
Channel Number :
4
Mux or Demux Insertion Loss :
≤1.2
Isolation Adjacent :
≥30dB
Isolation Non-adjacent :
≥40dB
Polarization Dependent Loss :
≤0.1
Return Loss :
≥45dB
Dimension :
25x10.8x6.5mm
Product Name :
4CH Ultra Compact CWDM Module
Description

4CH Ultra Compact CWDM Module


Features

  • Low Insertion Loss
  • Wide pass band
  • High Channel Isolation
  • High Stability and reliability
  • Epoxy-free on Optical Path


Applications

  • Line Monitoring
  • WDM Network
  • Telecommunication
  • Cellular Application
  • Fiber Optical amplifier
  • Acess Network


Product Code

Item Number

Customer Part Number

Future-Optics Part Number

Description

1

NA

NA

4CH CWDM MODULE, 1470-1610nm,G657 A2 Fiber, 900um loose tube,-40~+85℃


Specification

2.1 4CH CWDM Specifications

Parameters

Specifications

Unit

Operation Wavelengths

1470-1610nm

Channel Number

4

CH

Channel Center Wavelengths (nm)

ITU


Channel Passband(0.5dB)

λc ±6.5

nm

Mux or Demux Insertion Loss

≤1.2

dB

Isolation

Adjacent

≥30

dB

Non-adjacent

≥40

dB

Polarization Dependent Loss

≤0.1

dB

Ripple

≤0.5

dB

Return Loss

≥45

dB

Dimension

25x10.8x6.5

mm

Fiber Type

G657 A2, 900um jacket

Fiber Length

>0.5

M

Connector

FC/APC

Operating Temperature

-40~ +85

.C

Storage Temperature

-40 ~ +85

.C

Note:The above parameters without connector, a pair of connector loss is 0.25dB


2.2 Schematic Drawing and Dimension

4CH Ultra Compact CWDM Module

4CH Ultra Compact CWDM Module
