40km Reach 1.25Gbps 1310nm SFP Optical Transceiver 40KM Transmission Distance
40km Reach 1.25Gbps 1310nm SFP Optical Transceiver 40KM Transmission Distance
Specifications
Brand Name :
Takfly
Model Number :
TK-1324-3LCD40
Certification :
CE,ROHS,FCC,REACH,ISO9001,ISO14001
Place of Origin :
Shenzhen, China
MOQ :
1 pcs
Price :
Can be negotiated
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, L/C
Supply Ability :
3000pcs/month
Delivery Time :
3-5 working days
Packaging Details :
blister box + spone + carton
Speed :
1.25Gbps
Transmission Distance :
40KM
Compatible Switch Brand :
CISCO/HP/Huawei/H3C/Juniper/ZTE/........
Wavelength :
1310nm
Fiber Port :
duplex LC
Description

Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 40km-160km transmission distance with SMF.
The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features

  • Dual data-rate of 1.25Gbps operation

  • 1550nm DFB laser and PIN photodetector for 40km/80km/120km160km transmission

  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

  • Digital Diagnostic Monitoring:

  • Internal Calibration or External Calibration

  • Compatible with SONET OC-24-LR-1

  • Compatible with RoHS

  • +3.3V single power supply

  • Operating case temperature range:

    Standard : 0 to +70°C

    Extended : -20 to +85°C

    Industrial : -40 to +85°C

Applications

Gigabit Ethernet.

Fiber Channel.

Switch to Switch interface.

Switched backplane applications.

Router/Server interface.

Other optical transmission systems.

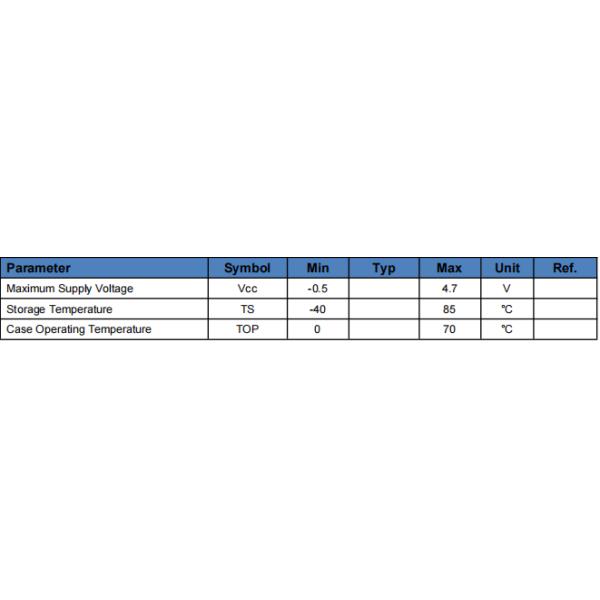

Absolute Maximum Ratings

40km Reach 1.25Gbps 1310nm SFP Optical Transceiver 40KM Transmission Distance

Optical and Electrical Characteristics
40km Reach 1.25Gbps 1310nm SFP Optical Transceiver 40KM Transmission Distance

Mechanical Dimensions

40km Reach 1.25Gbps 1310nm SFP Optical Transceiver 40KM Transmission Distance

FAQ:

Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.

Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.

Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
