Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F

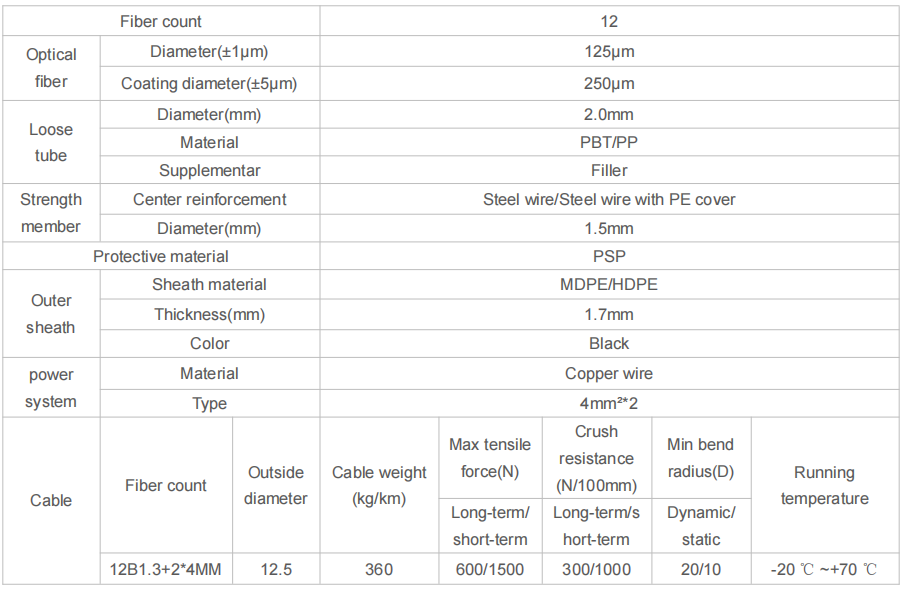

Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
Fiber count :
12
Clading :
125μm
Coating (±5µm) :
250μm
Loose tube Diameter(mm) :
2 mm
Loose tube Material :
PBT/PP
Strength member Center reinforcement :
Steel wire/Steel wire with PE cover
Sheath Sheath material :
MDPE/HDPE
Color :
Black
Cable weight (kg/km) :
360
Operation Temperature :
-20℃~70℃
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.
The cable core is FRP or metallic strength member( some structures need add PE as bedding layer in the strength member). Electric wires and tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. After two sides PSP are longitudinally applied over the inner sheath ,the cable is completed with PE or LSZH outer sheath.
Outdoor GYTS+2*4mm² Optical Cable Applications
  • Telecommunications network;
  • Construction of communication base stations in villages, remote areas in cities and towns ;
  • Residential areas and buildings FTTH;
  • Security monitoring project;
  • Others occasion which information together with electric power at the same time.
Outdoor GYTS+2*4mm² Optical Cable Features
  • Good mechanical and temperature performance;
  • Opto and electricity integrated, fully save pipeline resources;
  • Electric and optical cable maintain relatively independent structure, easy to import; export and link when installation;
  • Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are multi-one network, saves costs;
  • Larger operating temperature range;
  • Larger construction temperature range;
  • Cable diameter and bending radius are small, freely install in small space and compatible with optical signal and electric energy transmission.
Outdoor GYTS+2*4mm² Optical Cable Parameter and Properties
Optical fiber type G.652D G.655 50/125um 62.5/125um

Attenuation

@850nm

...

...

≤3.5 dB/km

≤3.5 dB/km

@1300nm

...

...

≤1.5 dB/km

≤1.5 dB/km

@1310nm

 ≤0.36 dB/km ≤0.40 dB/km

...

...

@1550nm

≤0.22 dB/km

≤0.23dB/km

...

...

Bandwidth

@850nm

...

...

≥500 MHz·km

 ≥200 MHz·km

@1300nm

...

...

≥1000 MHz·km

≥600 MHz·km

Numerical Aperture

...

...

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelengthλcc

≤1260nm

≤1480nm

...

...

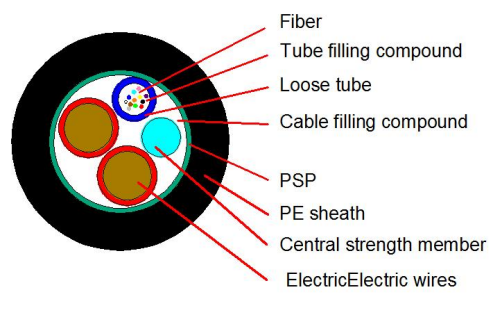

Outdoor GYTS+2*4mm² Optical Cable Structure
Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
Other Requirements
Length of production optical cable:2000M
Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GYTS-12B1.3+2*4MM 12.5 MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time! Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
