Outdoor GYTA53 Optical Cable Steel wire 2-144F
Outdoor GYTA53 Optical Cable Steel wire 2-144F
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
Outdoor GYTA53 Optical Cable Steel wire 2-144F
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
Outdoor GYTA53 Optical Cable Steel wire 2-144F
Fiber count :
2-144
Clading :
125μm
Coating (±5µm) :
250μm
Loose tube Diameter(mm) :
2 mm
Loose tube Material :
PBT/PP
Strength member Center reinforcement :
Steel wire/Steel wire with PE cover
Sheath Sheath material :
MDPE/HDPE
Color :
Black
Cable weight (kg/km) :
160-360
Operation Temperature :
-20℃~70℃
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
Outdoor GYTA53 Optical Cable Steel wire 2-144FOutdoor GYTA53 Optical Cable Steel wire 2-144F
The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.
A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Outdoor GYTA53 Optical Cable Applications
  • Adopted to outdoor distribution;
  • Long distance and local area network communication.
  • Suitable for aerial, duct and direct buried;
Outdoor GYTA53 Optical Cable Features
  • Good mechanical and temperature performance;
  • Special tube filling compound ensure a critical protection of fiber;
  • Crush resistance and flexibility;
  • The following measures are taken to ensure the cable watertight:
  • High strength loose tube that is hydrolysis resistant;

Steel wire used as the central strength member

Loose tube filling compound

100% cable core filling

APL moisture barrier

PSP enhancing moisture-proof

Water-blocking material

Outdoor GYTA53 Optical Cable Parameter and Properties
Optical fiber typeG.652DG.65550/125um62.5/125um

Attenuation

@850nm

...

...

≤3.5 dB/km

≤3.5 dB/km

@1300nm

...

...

≤1.5 dB/km

≤1.5 dB/km

@1310nm

≤0.36 dB/km≤0.40 dB/km

...

...

@1550nm

≤0.22 dB/km

≤0.23dB/km

...

...

Bandwidth

@850nm

...

...

≥500 MHz·km

≥200 MHz·km

@1300nm

...

...

≥1000 MHz·km

≥600 MHz·km

Numerical Aperture

...

...

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelengthλcc

≤1260nm

≤1480nm

...

...

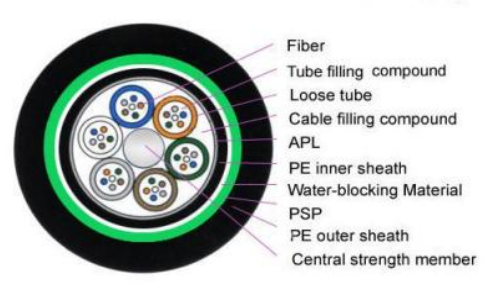

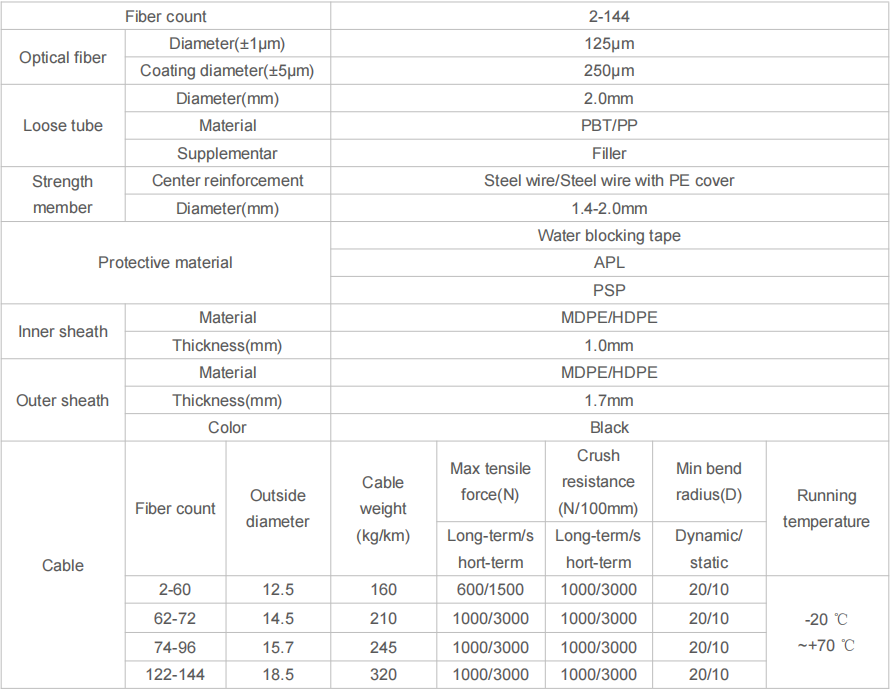

Outdoor GYTA53 Optical Cable Structure
Outdoor GYTA53 Optical Cable Steel wire 2-144F
Other Requirements
Length of production optical cable:2000M
Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GYTA53 144C 18.5 MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time! Outdoor GYTA53 Optical Cable Steel wire 2-144F
