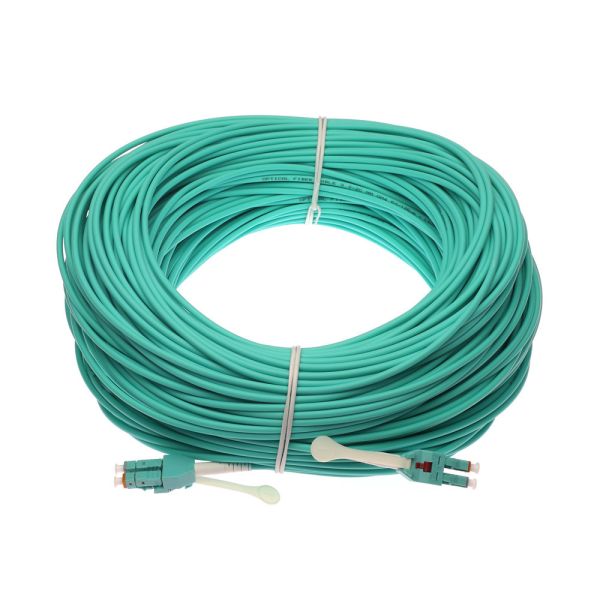

3.0mm Diameter LC Uniboot OM4 Patch Cord with Polarity Reversible Feature
3.0mm Diameter LC Uniboot OM4 Patch Cord with Polarity Reversible Feature
3.0mm Diameter LC Uniboot OM4 Patch Cord with Polarity Reversible Feature
3.0mm Diameter LC Uniboot OM4 Patch Cord with Polarity Reversible Feature
3.0mm Diameter LC Uniboot OM4 Patch Cord with Polarity Reversible Feature
3.0mm Diameter LC Uniboot OM4 Patch Cord with Polarity Reversible Feature
3.0mm Diameter LC Uniboot OM4 Patch Cord with Polarity Reversible Feature
3.0mm Diameter LC Uniboot OM4 Patch Cord with Polarity Reversible Feature
3.0mm Diameter LC Uniboot OM4 Patch Cord with Polarity Reversible Feature
3.0mm Diameter LC Uniboot OM4 Patch Cord with Polarity Reversible Feature
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
TK-UPC-2.0-1M-LCP-LCP-SM-OM3-XXX
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China
MOQ :
100PCS
Price :
US$0.01~3.99/PC
Payment Terms :
Western Union,T/T,MoneyGram/Paypal
Supply Ability :
10000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Export Standard Packing
Product Name :
3.0mm LC Uniboot Polarity Reversible LC Uniboot OM4 Patch Cord
Intertion Loss :
≤0.2dB
Return Loss :
PC MM ≥ 30dB, SM≥60dB (APC), SM ≥50dB (PC)
Fiber Type :
OS2 , OM3, OM4
Diameter :
3.0mm
Connector Type :
PC
Jacket Material :
LSZH/PVC/OFNR/OFNP
Color :
Aqua, Yellow, Violet, or Customized
Wavelength :
850/1310nm
Length :
1M or Customized
Operation Temperature :
-20℃~70℃
Fiber Diameter :
9/125
Grade :
Telecom Grade
Certificate :
CE/ROHS/REACH
Production Capcity :
10000PCS/Day
Description
3.0mm LC Uniboot Polarity Reversible LC Uniboot OM4 Patch Cord
Takfly's Polarity Reversible LC Uniboot Patch Cords simplify cable management while connecting high-speed data and legacy networks. The single housing and round duplex cable reduces cabling by 50% compared to conventional LC duplex cables.
With fewer cables compared to conventional LC duplex cabling, uniboot patch cables provide better access to connectors and panels. In dense patching fields, fewer cables make moves, adds and changes easier for engineers and improve airflow around equipment. The pre-configured Uniboot alignment speeds up installation as its precision manufactured connector connects to both duplex ports while eliminating possible error or time lining up conventional LC connectors to ports.
Product Specifications
Connector Type Standard Clip LC to LC Polish Type UPC to UPC
Fiber Count 2 Fibers Fiber Grade Bend Insensitive Fiber
Fiber Mode OS2/SM G657A1/SM G657A2, OM3/OM4 Wavelength 850/1300nm 1310/1550nm
Flame Rating Riser (OFNR) Cable Outside Diameter (OD) 2.0mm
Polarity A (Tx) to B (Rx) Tensile Strength 60/100N (Long/Short Term)
Min. Bend Radius (Optical Fiber) 7.5mm Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static)
Insertion Loss ≤0.2dB Return Loss ≥30dB
Attenuation at 850nm ≤3.5dB/km Attenuation at 1300nm ≤1.5dB/km
Operating Temperature -10 to 70°C (14 to 158℉) Storage Temperature -20 to 70℃ (-4 to 158℉)
Applications
  • CATV
  • Telecommunication networks
  • Active device termination
  • Local area networks (LANS)
  • Data processing networks
  • Test equipment
  • Wide area networks (WANS)
Key Features
  • Uniboot with a Single Housing
  • High back reflection loss
  • Stable capability and high reliability
  • Excellent mechanical capability
  • PVC jacket as default
  • An ideal solution for high-speed data transmission
  • 100% inspected for optical characteristics before shipment
Product Images
3.0mm Diameter LC Uniboot OM4 Patch Cord with Polarity Reversible Feature 3.0mm Diameter LC Uniboot OM4 Patch Cord with Polarity Reversible Feature
With more than 10 years of sales experience and shipping experience in optical fiber products, we have helped more than 127 customers to expand their business and increase sales. We believe we can provide you with professional guidance, help you save time and money, and increase your sales.
