10g SFP+ & RJ45 Port Fiber Optic Media Converter
10g SFP+ & RJ45 Port Fiber Optic Media Converter
10g SFP+ & RJ45 Port Fiber Optic Media Converter
10g SFP+ & RJ45 Port Fiber Optic Media Converter
10g SFP+ & RJ45 Port Fiber Optic Media Converter
10g SFP+ & RJ45 Port Fiber Optic Media Converter
10g SFP+ & RJ45 Port Fiber Optic Media Converter
10g SFP+ & RJ45 Port Fiber Optic Media Converter
10g SFP+ & RJ45 Port Fiber Optic Media Converter
10g SFP+ & RJ45 Port Fiber Optic Media Converter
10g SFP+ & RJ45 Port Fiber Optic Media Converter
10g SFP+ & RJ45 Port Fiber Optic Media Converter
Specifications
Brand Name :
OEM
Model Number :
DF-MC-10G
Certification :
ISO, CE RoHS
Place of Origin :
China
MOQ :
1
Price :
99
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
by Foam Box+Standard Carton
Port Parameters :
1*SFP, 1*RJ45
Data Rate :
10g
Power Supply :
External DC 12V 2A
Operating Temperature :
0 C ~ +50 C
Description
10g SFP+ & RJ45 Port Fiber Optic Media Converter
Product Overview

10G Unmanaged Media Converter with SFP+ & RJ45 port, designed for large workgroups requiring high-speed Ethernet network expansion. This converter efficiently transforms 1/10G-BASE-T to 10G-BASE-FX, providing high-performance, cost-effective solutions for LAN campus networks.

This fiber media converter extends network transmission distances from 100 meters over copper wires up to 120 kilometers via fiber optics, while offering isolation protection, enhanced data security, superior stability, and easy maintenance.

Key Features
  • High-performance Marvel chips enable non-blocking transmission and switching
  • Enhanced security and stability in data transmission
  • Supports electrical outlet 10Gbase-T to 10Gbase-SR/LR/ER/ZR
  • Optical port with 3R function (balanced amplification, clock extraction, integral regeneration)
  • Transparent data transmission with minimal delay
  • Supports 850, 1310, 1550nm and CWDM/DWDM wavelengths per ITU-T standards
  • Supports long jumbo frames
  • DMI function support for optical modules
  • Loopback functionality for testing
  • Compatible with SFP+/XFP optical modules
  • 5-20V wide voltage power supply
  • Rack centralized power supply management
  • External power supply support
Technical Specifications
Access Method 1×10G RJ45, 1×10Gbase-FX (SFP port)
Operation Mode Full/Half duplex
Standard Protocol IEEE802.3 1000 Base-T, IEEE802.3u 10/100/1000Base-SX/TX, IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE 802.3z, IEEE 802.3ab
Power Supply External DC 12V 2A (standard), Optional 5V 4A
Operating Temperature 0°C to 50°C
Humidity 5% to 90%
Storage Temperature -40°C to 70°C
Product Images

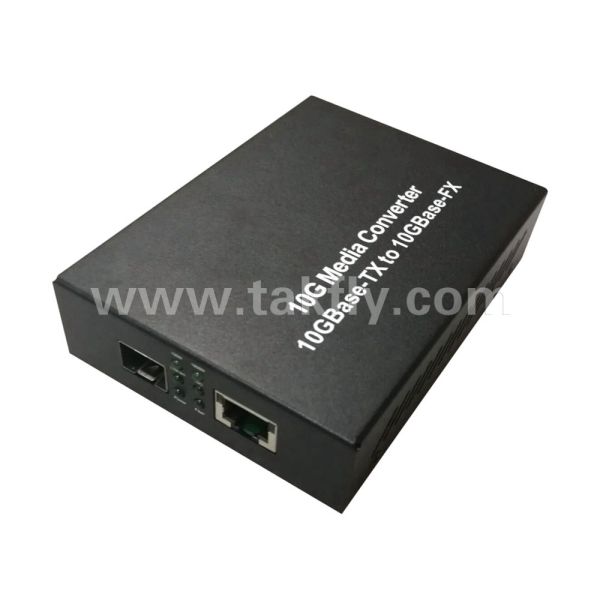

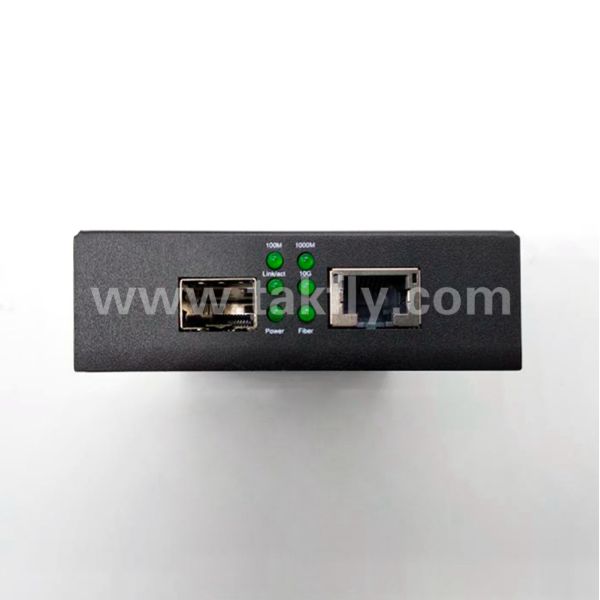

10g SFP+ & RJ45 Port Fiber Optic Media Converter 10g SFP+ & RJ45 Port Fiber Optic Media Converter 10g SFP+ & RJ45 Port Fiber Optic Media Converter
