Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
TK-PC-SAP-SA-AS-3.0-TPU
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China
MOQ :
100PCS
Price :
US$0.01~4.69/PC
Payment Terms :
Western Union,T/T,MoneyGram/Paypal
Supply Ability :
5000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Export Standard Packing
Product Name :
FTTH FTTX Pullable Bullet SCAPC to SC/APC Fiber Optic Patchcord, SM G657A2, 2.0*5.2mm, LSZH Jacket
Intertion Loss :
≤0.3dB
Return Loss :
APC SM ≥ 60dB
Fiber Type :
OS2, G652D , G657A1 , G657A2 , G657B3
Diameter :
2.0*5.2mm
Connector Type :
APC
Jacket Material :
LSZH
Color :
Black
Wavelength :
1310nm,1550nm
Length :
5M or Customized
Operation Temperature :
-20℃~70℃
Fiber Diameter :
9/125
Grade :
Telecom Grade
Certificate :
CE/ROHS/REACH
Production Capcity :
10000PCS/Day
Description

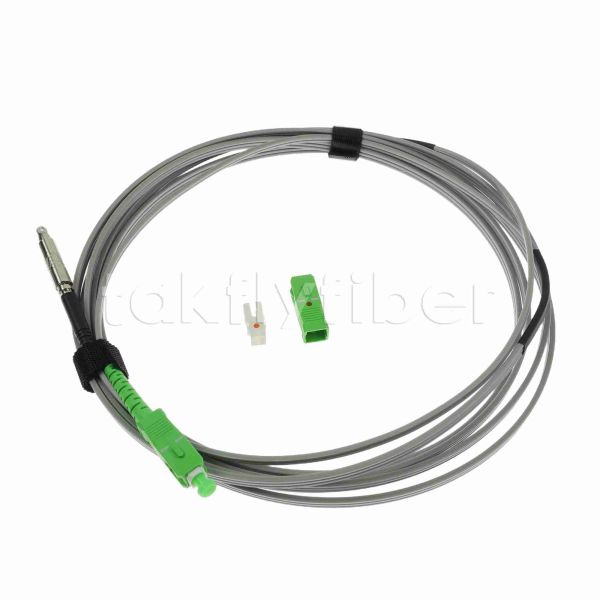

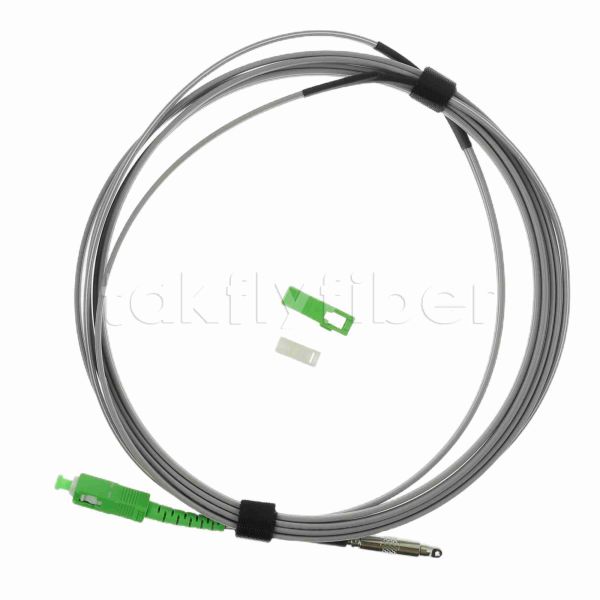

FTTH FTTX Pullable Bullet SCAPC to SC/APC Fiber Optic Patchcord
This pullable pushable fiber optic patchcord features SM G657A2 fiber with 2.0×5.2mm LSZH jacket construction, designed specifically for FTTX deployment scenarios.
Product Overview
The pullable pushable connector enables pre-connectorized cable installation through microducts and small holes common in FTTX applications. This design eliminates the need for large conduits or drilling large holes in customer walls, reducing fiber deployment costs and simplifying installation procedures.
Fiber Optic Specifications
  • Mode field diameter: 8.6μm ±0.4μm at 1310nm
  • Cladding diameter: 125.0μm ±0.7μm
  • Coating diameter: 245μm ±10μm
  • Coating-cladding concentricity error: ≤12.5μm
  • Cut-off wavelength: ≤1260nm
  • Attenuation coefficient: 1310 ≤0.4dB, 1550 ≤0.3dB
Cable Construction
  • Number of fibers: 1 core
  • Fiber type: G657A1
  • Strength member material: FRP
  • Diameter: 0.5mm × 2
  • Self-support messenger wire: Steel wire, 1.0mm diameter
  • Outer sheath: LSZH Black
  • Cable size: 5.0 × 2.0mm
Connector Performance
Parameter Specification
Type SC/APC (1310)
Insertion Loss ≤0.3 dB + 0.36 dB/km×L(km) @ 1310nm
≤0.3 dB + 0.25 dB/km×L(km) @ 1550nm
Return Loss ≥60dB
Endface IEC 61300-3-35
Durability (1000 Mating) 0.2dB Max increase
Installation Temperature -10℃ to +60℃
Operating Temperature -25℃ to 70℃
Storage Temperature -40℃ to 75℃
Cable Pull 90N
Optical Fiber Mechanical Performance
Parameter Long Term Short Term
Tensile Strength (N) 200 500
Crush Load (N) 1000 2000
Wavelength (nm) 1310/1550
Attenuation (dB) 0.4/0.3
Cladding Diameter (μm) 125 ±1
Cladding Non-circularity ≤1.0%
Coating Diameter (μm) 242 ±7
Detailed Technical Parameters
No. Item Unit Specification (SM G657A2)
1 Mode Field Diameter @1310nm μm 8.2~9.0
1 Mode Field Diameter @1550nm μm 9.1~10.1
2 Cladding Diameter μm 125 ±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245 ±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12
8 Cable Cutoff Wavelength nm λcc ≤1260
9 Attenuation (Max) @1310nm dB/KM ≤0.36
9 Attenuation (Max) @1550nm dB/KM ≤0.25
10 Macro-Bending Loss (1 Turn × 7.5mm radius @1550nm) dB ≤0.08
10 Macro-Bending Loss (1 Turn × 7.5mm radius @1265nm) dB ≤0.25
Applications
  • CATV Systems
  • Telecommunication Networks
  • Active Device Termination
  • Local Area Networks (LANs)
  • Data Processing Networks
  • FTTH, FTTX Deployments
  • Wide Area Networks (WANs)
Key Features
  • Low insertion loss and high reflection loss
  • Excellent exchange ability
  • Superior durability
  • High temperature stability
  • Compliant with Telcordia GR-326-CORE standard
