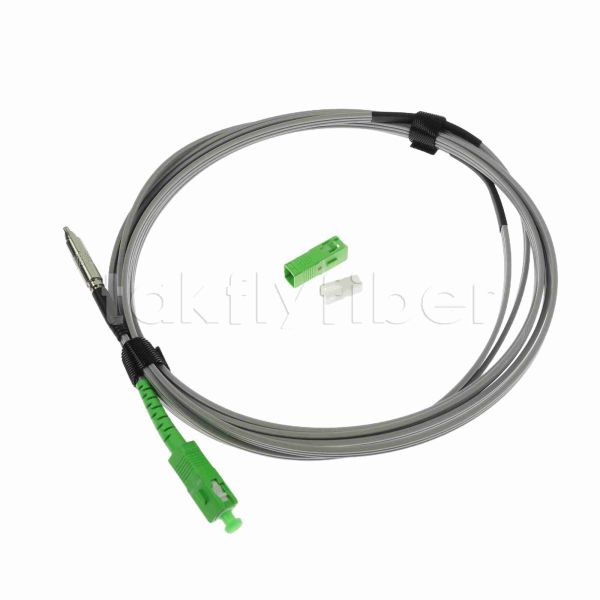

2.0*5.2mm SC/APC to SC/APC Pushable Fiber Drop Cable Assemblies for FTTH and FTTP
2.0*5.2mm SC/APC to SC/APC Pushable Fiber Drop Cable Assemblies for FTTH and FTTP
2.0*5.2mm SC/APC to SC/APC Pushable Fiber Drop Cable Assemblies for FTTH and FTTP
2.0*5.2mm SC/APC to SC/APC Pushable Fiber Drop Cable Assemblies for FTTH and FTTP
2.0*5.2mm SC/APC to SC/APC Pushable Fiber Drop Cable Assemblies for FTTH and FTTP
2.0*5.2mm SC/APC to SC/APC Pushable Fiber Drop Cable Assemblies for FTTH and FTTP
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
TK-PC-SAP-SA-AS-3.0-TPU
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China
MOQ :
100PCS
Price :
US$0.01~4.69/PC
Payment Terms :
Western Union,T/T,MoneyGram/Paypal
Supply Ability :
5000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Export Standard Packing
Product Name :
2.0*5.2mm SC/APC to SC/APC Pushable Fiber Drop Cable Assemblies for FTTH and FTTP
Intertion Loss :
≤0.3dB
Return Loss :
APC SM ≥ 60dB
Fiber Type :
OS2, G652D , G657A1 , G657A2 , G657B3
Diameter :
2.0*5.2mm
Connector Type :
APC
Jacket Material :
LSZH
Color :
Black
Wavelength :
1310nm,1550nm
Length :
5M or Customized
Operation Temperature :
-20℃~70℃
Fiber Diameter :
9/125
Grade :
Telecom Grade
Certificate :
CE/ROHS/REACH
Production Capcity :
000PCS/Day
Short Term Tensile Strength :
≥200N
Description
2.0×5.2mm SC/APC to SC/APC Pushable Fiber Drop Cable Assemblies for FTTH and FTTP
Product Overview

FTTH FTTX Pullable Bullet SC/APC to SC/APC Fiber Optic Patchcord, SM G657A2, 2.0×5.2mm, LSZH Jacket

Product Description

Takfly Pushable Fiber Drop Cable Assemblies are purpose-built for fast, clean installations in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) networks. Each assembly features a factory-terminated SC/APC connector designed to be pushed through microducts, conduit, or walls, then snapped directly into a terminal housing—eliminating the need for splicing or specialized tools.

If routing through a wall, simply drill a 3/8″ hole for cable entry. The Pushable SC/APC connector can be pushed through existing microduct or conduit—no drilling required—and once routed, the SC/APC housing snaps onto the ferrule without tools. The final connection is made by plugging directly into an Optical Network Terminal (ONT), wall plate, or enclosure.

Built with bend-insensitive single-mode fiber (G.657.A2 or G.657.B3), these rugged, low-profile assemblies are ideal for tight routing environments such as Single-Family Units (SFUs) and Multi-Dwelling Units (MDUs). Assemblies are made to order in custom lengths, with optional pulling eyes, and are available in black or white jackets.

Technical Specifications
Fiber Optic Attributes
  • Mode field diameter: 8.6μm ±0.4μm at 1310nm
  • Cladding diameter: 125.0μm ±0.7μm
  • Coating diameter: 245μm ±10μm
  • Coating-cladding concentricity error: ≤12.5μm
  • Cut-off wavelength: ≤1260nm
  • Attenuation coefficient: 1310 ≤0.4dB, 1550 ≤0.3dB
FTTH Cable Information
  • Number of fiber: 1 core
  • Fiber type: G657A1
  • Strength member material: FRP
  • Diameter: 0.5mm × 2
  • Self support Messenger wire: Steel wire, Diameter: 1.0mm
  • Outer sheath: LSZH Black, Cable size: 5.0×2.0mm
Connector Test Specifications
Item Specifications
Type SC/APC(1310)
Insertion Loss ≤0.3 dB + 0.36 dB/km×L(km) @ 1310nm
≤0.3 dB + 0.25 dB/km ×L(km) @ 1550nm
Return Loss ≥60dB
Endface IEC 61300-3-35
Durability (1000 Mating) 0.2dB Max. increase
Installation Temperature -10℃～+60℃
Operating Temperature -25℃~70℃
Storage Temperature -40℃~75℃
Cable pull 90N
Optical Fiber Performance
Parameter Long Term Short Term
Tensile strength (N) 200 500
Crush load (N) 1000 2000
Wavelength (nm) 1310/1550
Attenuation (dB) 0.4/0.3
Cladding diameter (μm) 125±1
Cladding non-circularity ≤1.0%
Coating diameter (μm) 242±7
Detailed Parameters
NO. Item Unit Specification (SM G657A2)
1 Mode Field Diameter (1310nm) μm 8.2~9.0
1 Mode Field Diameter (1550nm) μm 9.1~10.1
2 Cladding Diameter μm 125±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12
8 Cable Cutoff Wavelength nm λcc ≤1260
9 Attenuation (Max) 1310nm dB/KM ≤0.36
9 Attenuation (Max) 1550nm dB/KM ≤0.25
10 Macro-Bending Loss (1 Turn × 7.5mm radius@1550nm) dB ≤0.08
10 Macro-Bending Loss (1 Turn × 7.5mm radius@1265nm) dB ≤0.25
Applications
  • CATV
  • Telecommunication networks
  • Active device termination
  • Local area networks (LANS)
  • Data processing networks
  • FTTH, FTTX
  • Wide area networks (WANS)
Key Features
  • Low insertion loss and High reflection loss
  • Good exchange ability
  • Good durability
  • High temperature stability
  • Standard: Telcordia GR-326-CORE
2.0*5.2mm SC/APC to SC/APC Pushable Fiber Drop Cable Assemblies for FTTH and FTTP
