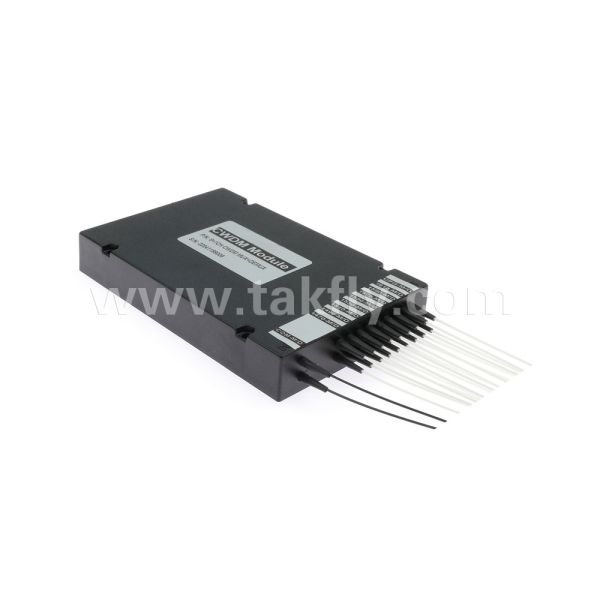

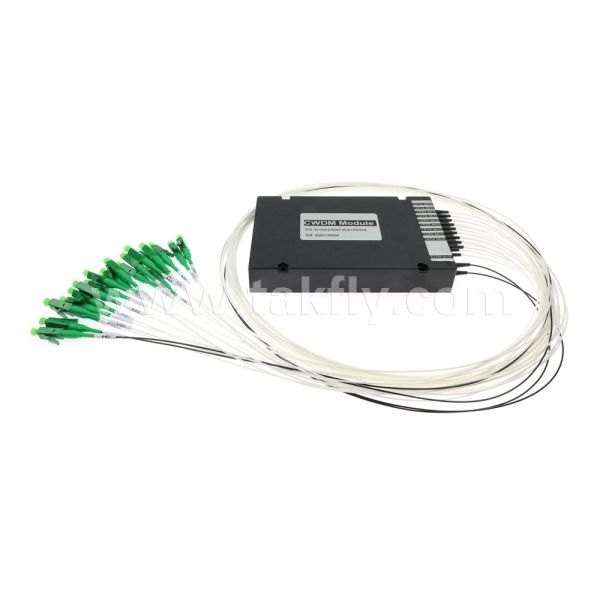

Fiber Optic CWDM 8+1 Channel MUX & DEMUX ABS Module for Data Center FTTX
8+1 Channel CWDM MUX & DEMUX ABS Module

Takfly's CWDM Mux & Demux ABS module utilizes wavelength division multiplexing technology based on TFF (thin film filter), offering multiple wavelength options. It multiplexes optical signals of different wavelengths into a single fiber for transmission and demultiplexes them into separate wavelength signals at the receiver end.

CWDM has established an important position in the access layer of Metropolitan Area Networks due to its wide band capabilities and low system equipment requirements.

Key Features
  • Low Insertion Loss
  • Wide Pass Band
  • High Channel Isolation
  • High Stability and Reliability
  • Epoxy-free on Optical Path

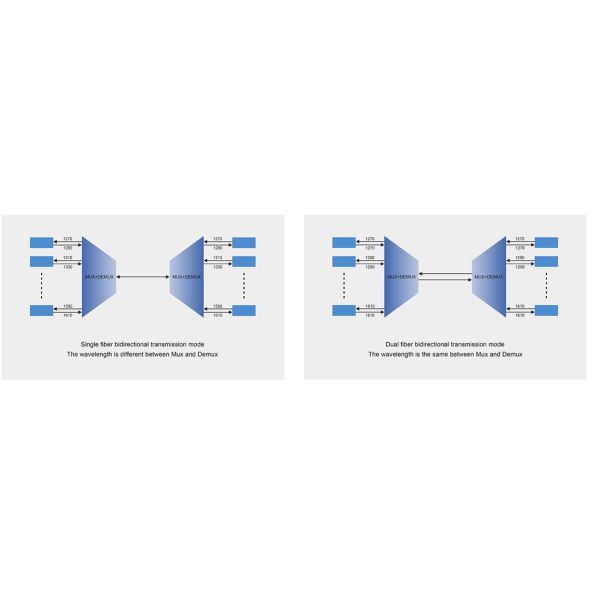

Takfly provides multiple wavelengths and single or dual fiber transmission CWDM MUX+DEMUX options with customization capabilities.

Fiber Optic CWDM 8+1Channel MUX & DEMUX ABS Module for Data Center FTTX
Technical Specifications
Parameter Unit Specifications
Channel Count Ch 8+1
Channel Center Wavelength nm 1470/1490/1510/1530/1550/1570/1590/1610/UPGRADE 1270-1350
Channel Passband nm ±7.5
Insertion Loss dB <2.2
Isolation Adjacent Channel dB 30
Isolation Non-Adjacent Channel dB 40
Passband Ripple dB 0.3
Polarization Dependent Loss dB 0.1
Directivity dB 55
Return Loss dB 50
Polarization Mode Dispersion ps 0.1
Power Handling mW 500
Pigtail and Connector Type COM 0.9/mm black loose tube with connector
Other ports 0.9/mm white loose tube with connector
Fiber Type SMF-28e
Fiber Length m ≥1
Operating Temperature ℃ -10 ~ 70
Storage Temperature ℃ -40 ~ 85
Package Dimension mm ABS Module
Fiber Optic CWDM 8+1Channel MUX & DEMUX ABS Module for Data Center FTTX Fiber Optic CWDM 8+1Channel MUX & DEMUX ABS Module for Data Center FTTX
