ST Round Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance
ST Round Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
ST Round Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union,T/T,MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
ST Round Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance
Ferrule the inside diameter of :
125/126/127um
Ferrule Outside diameter :
2.5mm /1.25mm
Insert loss :
＜0.2dB
Repeatability :
＜0.2dB
Optical Fiber Types of :
SM/MM
Plug and pull frequenc :
＞1000 times
Storage Temp Range(℃) :
-40 ℃ - +80 ℃
Certificate :
CE/ROHS/REACH
Description

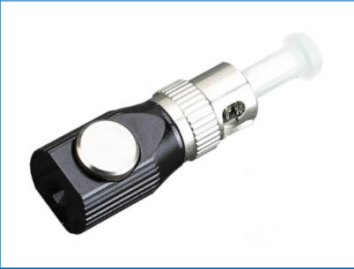

ST Round Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance

ST Round Bare Fiber Adapter is an auxiliary tool for optical fiber data testing. Because the bare adapter plug hole and bare fiber through the hole without epoxy glue and any medium, the bare fiber is easy to be inserted and pulled out and repeatedly used, and has low insertion loss and easy operate.

ST Round Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance
Applications
  • Acting on bare fiber, temporary connection OTDR, optical power meter, light source and other fiber port data and test instrumentation equipment
  • Temporary connection of optical fiber and emergency repair of optical fiber
Features
  • Easy to operate intuitive, can be observed by the naked eye
  • Single mode and multimode fiber are available
  • The use of unique metal sheet crimp fiber clamp design, safe, reliable, low insertion loss
  • The inserts and through holes are free of epoxy glue and any medium, easy to nail fiber insert, pull out and repeat multiple use
  • The ferrule and connector modules can be replaced, the size of the ferrule and the connector can be customized and can be varied
Technical Parameters
Parameter Specification
Ferrule Inside Diameter 125/126/127μm
Ferrule Outside Diameter 2.5mm / 1.25mm
Insertion Loss <0.2dB
Repeatability <0.2dB
Optical Fiber Types SM/MM
Plug and Pull Frequency >1000 times
Storage Temperature Range -40℃ to +80℃
Why Choose TAKFLY?
Manufacturing Excellence
  • Over 25 years of manufacturing experience in fiber optic products
  • More than 500 assembly workers with 5+ years of experience
  • 10+ R&D Engineers dedicated to product innovation
  • 16 sets of Germany imported injection machines and 16 production lines
  • 30+ sets of testing equipment including OTDR, 3D, VFL, IL & RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
  • OEM branding available
  • Regular participation in major industry exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
  • Raw material incoming inspection with spot checks before production
  • Comprehensive inspection after each manufacturing process
  • Thorough inspection of work-in-progress
  • Complete finished product inspection before packaging
  • Final spot checks before shipping
Delivery & Packaging
  • Samples: 1-3 working days
  • Mass production orders: 3-7 working days
  • Flexible packaging options: Plastic bags, cartons, and pallets available according to customer requirements
ST Round Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance
