48 Core Fiber Optic Patch Cord with Low Insertion Loss and High Temperature Stability for Data Centers
48 Core Fiber Optic Patch Cord with Low Insertion Loss and High Temperature Stability for Data Centers
48 Core Fiber Optic Patch Cord with Low Insertion Loss and High Temperature Stability for Data Centers
48 Core Fiber Optic Patch Cord with Low Insertion Loss and High Temperature Stability for Data Centers
48 Core Fiber Optic Patch Cord with Low Insertion Loss and High Temperature Stability for Data Centers
48 Core Fiber Optic Patch Cord with Low Insertion Loss and High Temperature Stability for Data Centers
48 Core Fiber Optic Patch Cord with Low Insertion Loss and High Temperature Stability for Data Centers
48 Core Fiber Optic Patch Cord with Low Insertion Loss and High Temperature Stability for Data Centers
Specifications
Brand Name :
TK/DF/Neutral
Model Number :
TK-48F-PC-LA-LA-XXXM
Certification :
CE, ROHS, REACH, CPR EN50575
MOQ :
1
Price :
US$0.01~US$49.99
Payment Terms :
T/T,Western Union,Paypal,L/C
Supply Ability :
10000pcs per week
Delivery Time :
7-9 working days
Packaging Details :
Standard export packing
Fiber Brand :
Corning, YOFC, OFS, Draka, HT
Length :
20M or Customized
Productname :
Fiber Optic Patchcord
Fiber Diameter :
9/125μm
Cabletype :
Single-mode or Multimode
Vibration :
≤0.2dB
Connector Type :
LC/APC, LC/UPC
Sheath :
LSZH
Operation Temperature :
-20 ~ +65 ℃
Cable Material :
LSZH/PVC
Connector Color :
Green/Blue/Beige/ Aqua/ Magenta
Application :
Telecommunications, Data Centers, CATV, LAN
Insertionloss :
<= 0.3 dB
Transport Package :
Reel
Standardscompliance :
CE, RoHS, Reach, ISO9001, ISO14001
Description

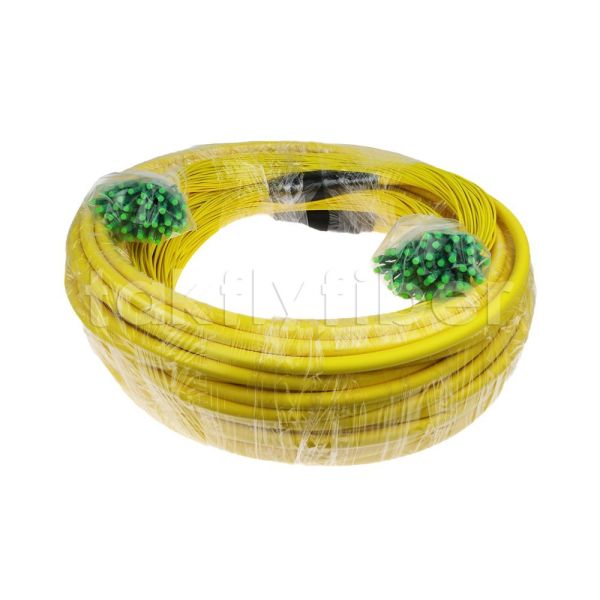

48 Core Fiber Optic Distribution Breakout Patch Cord

48 Core Fiber Optic Distribution Breakout Patch Cord Application

Ø CATV

Ø Telecommunication networks

Ø Active device termination

Ø Local area networks(LANS)

Ø Data processing networks

Ø Test equipment

Ø Wide area networks(WANS)

48 Core Fiber Optic Distribution Breakout Patch Cord Features

Ø Low insertion loss and High reflection loss

Ø Good exchange ability

Ø Good durability

Ø High temperature stability

Ø Standard:Telcordia GR-326-CORE

48 Core Fiber Optic Distribution Breakout Patch Cord Specification

Connector Type

LC

End face type

APC
Fiber Type SM G652D, SM G657A1, SM G657A2

Cable Diameter

10.5mm

Insertion loss

≤ 0.3 dB

Return loss

UPC SM≥50dB , APC SM ≥60dB

Repeatability

≤ 0.1

Durability

≤ 0.2dB

Interchangeability

≤ 0.2dB

Tensile strength

>70N

Operating Temperature

-20℃~70℃

Storage Temperature

-40℃~80℃

Outer Sheath Material

LSZH

Bending radius(Static/Dynamic)

10D/20D

Length

10M, 20M, 50M, 100M or customized

Fanout Length

0.5M , 1M or customized

Fanout Diameter

2.0mm

How to order fiber optic patchcord?


1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA

2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )

3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )

4. Coating material : PVC / LSZH

5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on

6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5

7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32/48/72/96/144/288 fiber )


I have been working in this field more than 10 years, I believe, I could give you very good service and professional answers!
If you're interested in our products or have any doubt, why not send me inquiry at once?
