AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX
AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX
AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX
AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX
AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX
AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX
AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX
AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX
AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX
AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX
Specifications
Brand Name :
OEM
Model Number :
QSFP+ 40G AOC
Certification :
ISO, CE RoHS
Place of Origin :
China
MOQ :
1
Price :
USD45-132/pc
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton
Description
Active Optical Cables Fiber AOC 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX
40G QSFP+ to 40G QSFP+ Active Optical Cables

The QSFP+ active optic cables are a high-performance, low-power consumption, long-reach interconnect solution supporting InfiniBand QDR/DDR/SDR, 12.5G/10G/8G/4G/2G fiber channel, PCIe and SAS. Compliant with the QSFP MSA and IEEE P802.3ba standards.

The QSFP AOC assembly features four full-duplex lanes, with each lane capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. This parallel transceiver solution offers increased port density and significant total system cost savings.

Key Features
  • Four-channel full-duplex active optical cable
  • Transmission data rate up to 11.3Gbit/s per channel
  • Reliable VCSEL array technology using multimode fiber
  • Available in standard lengths of 3, 5, 10, 15, 20, 30, 50, 100m
  • Low power consumption <1.5W
  • Operating case temperature 0°C to +70°C
  • 3V power supply voltage
  • RoHS 6 compliant
  • Hot Pluggable QSFP form factor
Applications
  • Infiniband QDR/DDR/SDR
  • Datacenter infrastructure
  • 40G Ethernet
  • 4G/8G/10G Fibre Channel

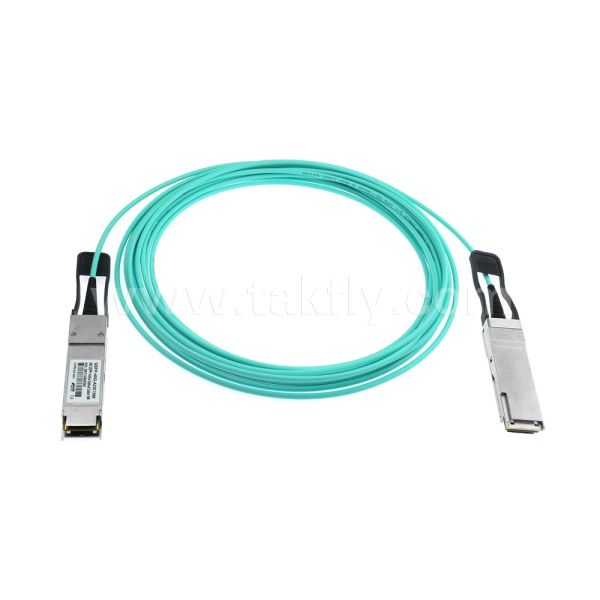

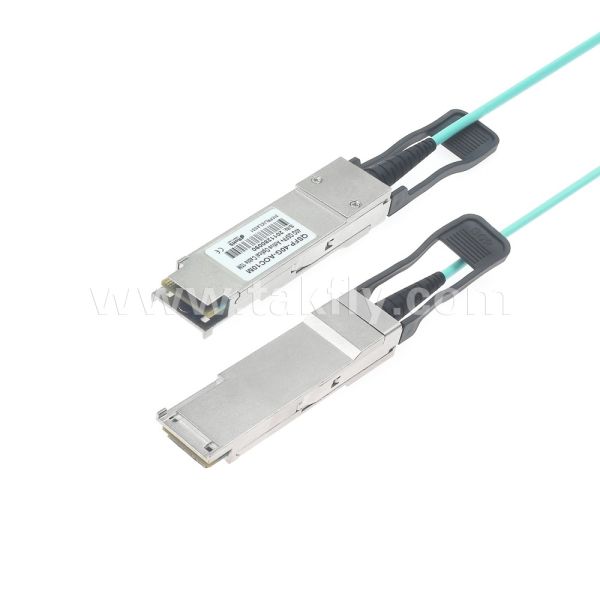

Product Images
AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX AOC Active Optical Cables Fiber 40G QSFP+ to 40G QSFP+ for Data Center FTTH FTTX
