Micro Optical Fiber Indoor Cable GJFH-2-24
Micro Optical Fiber Indoor Cable GJFH-2-24
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
GJFH-2-24
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
Micro Optical Fiber Indoor Cable GJFH-2-24
SM Attenuation :
Typical 0.36/0.22
Cladding diameter(µm) :
125±1.0
MM Attenuation :
Typical 3.0/1.0
Optical Fiber Fiber count :
1-24C
Loose tube Color :
The chromatographic
Sheath Material :
LSZH
Sheath Diameter :
3.0±0.1mm
Temperature Range :
-20℃-+60℃
Warranty :
5 years, lifetime maintenance
Fiber Brand :
Corning, YOFC, OFS, Draka
Description

Micro Optical Fiber Indoor Cable

GJFH-2-24

Product application
  • Optical fiber active connection jumper or tail fiber;
  • Routing and patching for data center and indoor communication network location;
  • Interconnection of instruments and communication equipment.
Product characteristics
  • Coated fiber is easy to peel off;
  • Aramid yarn reinforced element makes the optical cable have excellent tensile resistance;
  • Multi-core number and small outer diameter;
  • Good performance of flame-retardant, low induced attenuation within the operating temperature range.
Optical parameters and properties

Fiber type

Single-mode

G652D

(1310/1550nm)

Single-mode

G657A1

(1310/1550nm)

Single-mode

G657A2

(1310/1550nm)

Single-mode

G657B3

(1310/1550nm)
Attenuation (dB) Typical 0.36/0.22 0.36/0.22 0.36/0.22 0.36/0.22
Maximum 0.5/0.4 0.5/0.4 0.5/0.4 0.5/0.4
Zero Dispersion Slope ≤0.091 ps/km·nm ² ≤0.092 ps/km·nm ² ≤0.092 ps/km·nm ² ≤0.092 ps/km·nm ²
Dispersion(1285~1340nm) -3.5 – 3.5ps/(nm·km) -3.5 – 3.5ps/(nm·km) -3.5 – 3.5ps/(nm·km) -3.5 – 3.5ps/(nm·km)

Mode field

Diameter(@1310nm)

 9.1±0.4 µm 8.8±0.4 µm 8.8±0.4 µm 8.8±0.4 µm
Cutoff wavelength cable(nm) ≤1260 nm ≤1260 nm ≤1260 nm ≤1260 nm
Min bend radius(mm) 16 mm 10mm 7.5 mm 5.0 mm
Cladding diameter(µm) 125±1.0µm 125±1.0µm 125±1.0µm 125±1.0µm

Fiber type

Multi -mode

(62.5/125µm)

(850/1300nm)

Multi -mode

(50/125µm)

(850/1300nm)

Multi -mode

BIOM2+

(850/1300nm)

Multi -mode

BIOM3

(850/1300nm)

Multi -mode

BIOM4

(850/1300nm)

Multi -mode

BIOM5

(850/953nm/1300nm)
Attenuation (dB) Typical 3.0/1.0 3.0/1.0 3.0/1.0 3.0/1.0 3.0/1.0 3.0/1.0
Maximum 3.5/1.5 3.5/1.5 3.5/1.5 3.5/1.5 3.5/1.5 3.5/1.5
Bandwidth(MHz·km) ≥200/≥500 ≥400/≥500 ≥700/500 ≥1500/500 ≥3500/500 ≥3500/1850/500
Effective modal bandwidth ----/---- ----/---- ≥950/--- ≥2000/---- ≥4700/---- ≥4700/2470
10 Gigabit Ethernet SX (M) ---- ---- ≤150/---- ≤300/---- ≤550/----
40GBASE-SR4/100GBASE-SR10 ---- ---- ---- 140/---- 170/---- 200M/----/----
Min bend radius(mm) 30 30 7.5 7.5 7.5 7.5
Cladding diameter(µm) 125±1.0 125±1.0 125±1.0 125±1.0 125±1.0 125±1.0

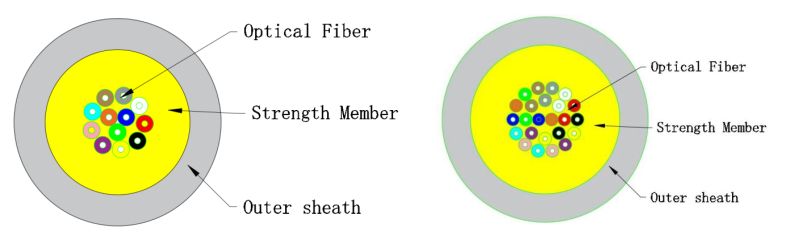

Product structure
Items Descriptions
Optical Fiber Fiber count 1-24C
Color The chromatographic
Sheath Material LSZH
Strength Member Aramid yarn
Color Depending on customer requirements or fiber type
Diameter 3.0±0.1mm
Mechanical and Environmental Characteristics
Items Descriptions
Tensile Strength short-term 150N
long-term 50N
Crush Resistance short-term 500N/100mm
long-term 100 N/100mm
Temperature Range -20℃-+60℃
Bending Radius Dynamic ≥20D
Static ≥10D
Packaging & Delivery
  • Packaging: Wooden Drums Protection. According to customer or our company request.
  • Delivery Length: Standard Reel Length:0.5-2.0 km or according to customer request.
Cable Marking
  • Cable Marker every Meter by inkjet printing
  • Year of manufacture
  • Type of Cable
  • Number of fiber
  • Cable length
  • Etc.
  • According to customer or our company request
Product Images
Micro Optical Fiber Indoor Cable GJFH-2-24 Micro Optical Fiber Indoor Cable GJFH-2-24
Why Choose TAKFLY
  • 26+ years of manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years of experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany-imported Injection Machines and production lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
  • Raw material spot checking before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks
Delivery Information
  • Samples: 1-3 working days
  • Mass Production Orders: 3-7 working days
  • Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
